ZKTeco ZKX6550D: Dual View X-Ray Inspection

Description

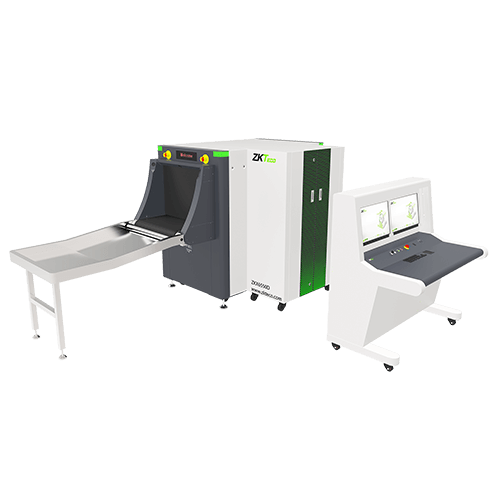

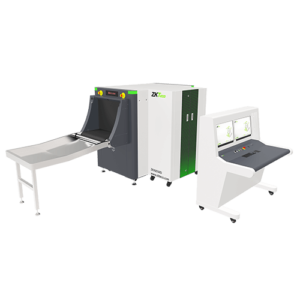

ZKTeco ZKX6550D: Dual-View X-Ray Inspection System for Enhanced Threat Detection

The ZKTeco ZKX6550D is an advanced dual-view X-ray security inspection system that significantly enhances the detection of potential threats in carry-on baggage, small parcels, and other items. Utilizing two independent X-ray generators, the ZKX6550D simultaneously displays horizontal and vertical images, enabling operators to accurately identify concealed items and potential threats. This dual-view technology reduces blind spots, allowing for more precise detection of overlapping objects, making the ZKX6550D a powerful tool for comprehensive security screening.

The ZKX6550D incorporates advanced material discrimination, which can quickly identify organic, inorganic, and mixed materials based on their effective atomic numbers, aiding operators in distinguishing between different types of items. The system also features biometric operator identification, enhancing security by ensuring that only authorized personnel can access and operate the machine. Designed with operator comfort in mind, the ergonomic structure of the ZKX6550D aids in efficient threat detection, even during extended periods of use. With high-density alarms and auxiliary detection capabilities for explosives and drugs, the ZKX6550D is an excellent solution for environments requiring stringent security measures, such as airports, ports, government buildings, and event venues.

Key Features

• Dual-View Imaging – Simultaneously displays horizontal and vertical images, improving the identification of concealed items and overlapping threats.
• Advanced Material Discrimination – Quickly detects organic, inorganic, or mixed materials based on their effective atomic numbers, facilitating accurate threat identification.
• High-Resolution Imaging – Equipped with a superior image algorithm, the ZKX6550D provides clear scanning images, ensuring the accurate identification of suspicious items.
• Biometric Operator Identification – Features biometric identification for operators, enhancing system security and preventing unauthorized access.
• Ergonomic Design – Designed for user comfort, the ergonomic structure aids operators in efficiently detecting potential threats.

Technical Specifications

• Tunnel Size: 650 mm (W) × 500 mm (H)
• Conveyor Speed: 0.20 m/s
• Maximum Load: Up to 180 kg with adequate distribution
• Wire Resolution: 38 AWG
• Penetration: Capable of penetrating 38 mm steel plates
• Monitor: 21.5-inch LED display
• Power Consumption: 1.5 kVA
• Noise Level: 55 dB(A)
• Dimensions: 2350 mm (L) × 1320 mm (W) × 1332 mm (H)
• Weight: Approximately 1000 kg

Applications

The ZKTeco ZKX6550D is ideal for environments that require stringent security measures, such as airports, ports, government buildings, and event venues. Its advanced dual-view imaging capabilities, ergonomic design, and high-density alarms make it a reliable choice for efficient and effective security screening. The system ensures high-resolution imaging, facilitating accurate detection of potential threats and enhancing overall security.

Why Choose the ZKTeco ZKX6550D?

The ZKTeco ZKX6550D offers dual-view X-ray inspection, advanced material discrimination, and biometric operator identification for a high level of security. Its ergonomic design ensures user comfort during extended operations, while its advanced threat detection features, including auxiliary detection for explosives and drugs, provide enhanced threat identification capabilities. The ZKX6550D is an excellent choice for environments requiring reliable and efficient security screening solutions, ensuring the safety of people and property.
