ZKTeco ZKX5030A: X-Ray Inspection System

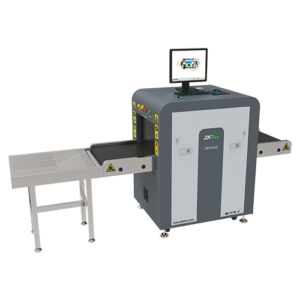

ZKTeco ZKX5030A X-Ray Inspection System

The ZKTeco ZKX5030A is an advanced X-ray inspection system designed for effective security screening of briefcases, carry-on baggage, and small cargo parcels. With its high-quality single-energy X-ray generator, the ZKX5030A delivers clear, detailed images that enable operators to easily identify potential threats.

The ergonomic design, high-density alarms, and auxiliary detection for explosives and drugs make the ZKX5030A ideal for high-security environments like airports, ports, and government buildings.

Description

ZKTeco ZKX5030A: Advanced X-Ray Inspection System for Reliable Security Screening

The ZKTeco ZKX5030A is an advanced X-ray inspection system engineered to provide high-quality security screening solutions for briefcases, carry-on baggage, and small cargo parcels. Equipped with a high-performance single-energy X-ray generator, the ZKX5030A delivers detailed and clear images, enabling security operators to accurately identify potential threats. The system features a superior image algorithm, enhancing image quality and ensuring that suspicious items are easily identifiable during the screening process.

The ZKX5030A features an ergonomic design that aids operators in detecting potential threats with ease, ensuring both comfort and efficiency during prolonged usage. The system is also equipped with high-density alarms and auxiliary detection for explosives and drugs, bolstering its threat detection capabilities. Its robust design and advanced detection features make the ZKX5030A an ideal choice for environments that require stringent security measures, such as airports, ports, government buildings, and event venues.

Key Features

  • High-Resolution Imaging – Equipped with a superior image algorithm, the ZKX5030A provides clear scanning images, facilitating accurate identification of suspicious items.
  • Ergonomic Design – Designed with user comfort in mind, the ergonomic structure aids operators in detecting potential threats efficiently and accurately.
  • Advanced Detection Capabilities – Features high-density alarms and auxiliary detection for explosives and drugs, enhancing its threat detection capabilities.

Technical Specifications

  • Tunnel Size: 507 mm (W) × 305 mm (H)
  • Conveyor Speed: 0.20 m/s
  • Maximum Load: Up to 120 kg with adequate distribution
  • Wire Resolution: 34 AWG (0.16 mm metal wire)
  • Penetration: Capable of penetrating 8 mm steel plates
  • Monitor: 21.5-inch LED display
  • Power Consumption: 1 kVA
  • Noise Level: 53.8 dB(A)
  • Dimensions: 1701 mm (L) × 796 mm (W) × 1150 mm (H)
  • Weight: Approximately 410 kg

Applications

The ZKTeco ZKX5030A is ideal for environments that require stringent security measures, such as airports, ports, government buildings, and event venues. Its advanced imaging capabilities, ergonomic design, and high-density alarms make it a reliable choice for efficient and effective security screening. The system ensures high-resolution imaging, facilitating accurate detection of potential threats and enhancing overall security.

Why Choose the ZKTeco ZKX5030A?

The ZKTeco ZKX5030A delivers dependable X-ray inspection capabilities with high-resolution imaging, advanced threat detection features, and an ergonomic design for comfortable use. Its single-energy X-ray generator, auxiliary detection for explosives and drugs, and robust construction make it an excellent choice for high-security environments. With compliance to industry standards and support for multiple detection functions, the ZKX5030A provides a reliable and comprehensive security screening solution for people and property.
