ZKTeco ZKX10080: X-Ray Inspection System

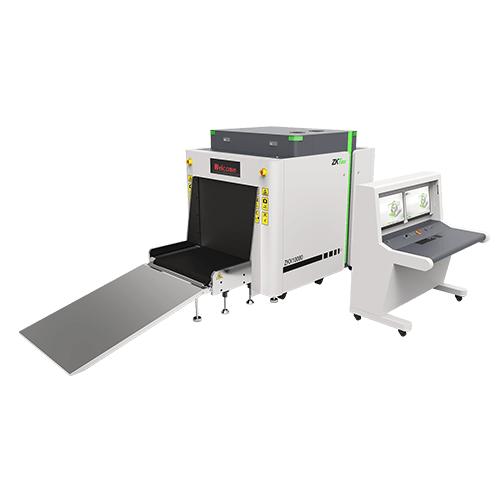

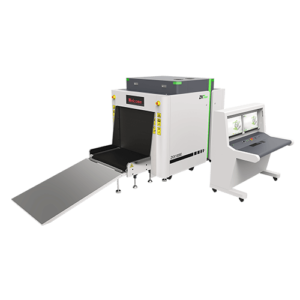

ZKTeco ZKX10080 X-Ray Inspection System

The ZKTeco ZKX10080 is an advanced X-ray inspection system designed for effective security screening of large items up to 100 × 80 cm in size. With its high-quality dual-energy X-ray generator, the ZKX10080 delivers high-resolution images for accurate identification of potential threats.

The ergonomic design, high-density alarms, and auxiliary detection for explosives and drugs make the ZKX10080 ideal for high-security environments such as airports, ports, and government facilities.

Description

ZKTeco ZKX10080: Advanced X-Ray Inspection System for Large-Scale Security Screening

The ZKTeco ZKX10080 is a high-performance X-ray inspection system engineered to provide reliable and effective security screening for large items, including luggage, parcels, and cargo up to 100 × 80 cm in size. Equipped with a high-quality dual-energy X-ray generator, the ZKX10080 delivers detailed and clear images, allowing security operators to accurately identify potential threats. The system features an advanced image algorithm that enhances image quality, ensuring effective detection of suspicious items during the screening process.

The ZKX10080 incorporates a lowered conveyor height, making it easier to place luggage on the belt, thereby enhancing user convenience and efficiency. Additionally, it includes biometric identification for operators, ensuring that only authorized personnel can access the system, further enhancing security. With high-density alarms and auxiliary detection for explosives and drugs, the ZKX10080 is a robust solution for environments that require stringent security measures, such as airports, ports, government buildings, and event venues.

Key Features

  • High-Resolution Imaging – Equipped with a superior image algorithm, the ZKX10080 provides clear scanning images, facilitating accurate identification of suspicious items.
  • Ergonomic Design – Features a lowered conveyor height, making it easier to place luggage on the belt, enhancing user convenience.
  • Biometric Operator Identification – Incorporates biometric identification for operators, preventing unauthorized access and enhancing system security.
  • Advanced Detection Capabilities – Features high-density alarms and auxiliary detection for explosives and drugs, bolstering its threat detection capabilities.

Technical Specifications

  • Tunnel Size: 1006 mm (W) × 803 mm (H)
  • Conveyor Speed: 0.2 to 0.4 m/s
  • Maximum Load: Up to 200 kg with adequate distribution
  • Wire Resolution: 38 AWG
  • Penetration: Capable of penetrating 34 mm steel plates
  • Monitor: 21.5-inch LED display
  • Power Consumption: 1 kVA
  • Noise Level: 53.8 dB(A)
  • Dimensions: 2984 mm (L) × 1405 mm (W) × 1666 mm (H)
  • Weight: Approximately 1150 kg

Applications

The ZKTeco ZKX10080 is ideal for environments that require stringent security measures, such as airports, ports, government buildings, and event venues. Its advanced imaging capabilities, ergonomic design, and high-density alarms make it a reliable choice for efficient and effective security screening. The system ensures high-resolution imaging, facilitating accurate detection of potential threats and enhancing overall security.

Why Choose the ZKTeco ZKX10080?

The ZKTeco ZKX10080 delivers comprehensive X-ray inspection capabilities with high-resolution imaging, ergonomic design, and advanced threat detection features. Its ability to handle larger items, robust detection for explosives and drugs, and enhanced operator security make it an excellent choice for high-security environments. With compliance to industry standards and user-friendly features, the ZKX10080 provides a reliable and comprehensive security screening solution, ensuring the safety of people and property.
