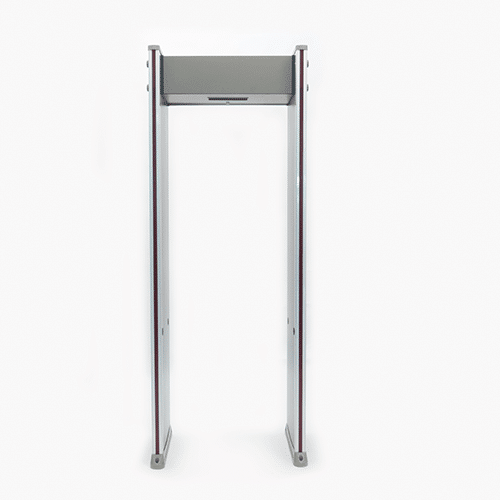

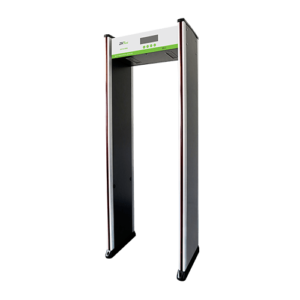

ZKTeco ZK-D2180S: Walk-Through Metal Detector

Description

ZKTeco ZK-D2180S: Advanced Walk-Through Metal Detector for Reliable Security Screening

The ZKTeco ZK-D2180S is an advanced walk-through metal detector designed to enhance security screening in various environments, such as airports, schools, government buildings, and public venues. Equipped with 18 overlapping detection zones, the ZK-D2180S allows for precise localization of metal objects, ensuring a high level of accuracy and security. The device is constructed with fireproof materials and is designed to be safe for all individuals, including those with pacemakers and pregnant women, making it a reliable choice for any security screening application.

With adjustable sensitivity levels, the ZK-D2180S offers flexibility in setting up the detector to meet specific security requirements, while minimizing interference from harmless metal items. The 3.7-inch LCD display provides clear visual indicators and operational information, allowing security personnel to easily manage the device. The ZK-D2180S features both audible and visual alarms, with LED indicators and speakers located on both sides of the detector, clearly indicating the location of detected metal objects.

Key Features

• 18 Detection Zones – Provides precise localization of metal objects, enhancing the accuracy of threat detection and reducing false alarms.
• Adjustable Sensitivity Levels – Offers 256 sensitivity levels for each detection zone, enabling customization to meet specific security needs.
• Audible and Visual Alarms – Features LED indicators and speakers on both sides of the detector, providing synchronous sound and light alarms to indicate the location of detected metal objects.
• People and Alarm Counters – Integrated counters track the number of individuals who have passed through and the number of alarms triggered, aiding in monitoring and reporting.
• Remote Control and Network Connectivity – Supports remote control operation and TCP/IP communication, allowing for integration with other security systems and centralized management.

Technical Specifications

• Power Supply: AC 100V–240V
• Working Temperature: -20°C to +50°C
• Working Frequency: 4kHz–8kHz
• External Dimensions: 2200mm (H) x 800mm (W) x 580mm (D)
• Internal Dimensions: 2010mm (H) x 700mm (W) x 500mm (D)
• Gross Weight: 70kg
• Display: 3.7-inch LCD screen

Applications

The ZKTeco ZK-D2180S is ideal for environments requiring reliable and efficient security screening. It is suitable for use in airports, government buildings, schools, public venues, and other facilities that require advanced metal detection to ensure safety. The device’s adjustable sensitivity levels, multiple detection zones, and comprehensive alarm system make it a versatile solution for various security needs.

Why Choose ZKTeco ZK-D2180S?

• High Precision Detection – 18 detection zones allow for accurate identification and localization of metal threats.
• Customizable Sensitivity – Adjustable sensitivity levels enable customization based on specific security requirements, minimizing interference from harmless items.
• Remote Control & Integration – Supports remote control and network connectivity, facilitating centralized management and integration with other security systems.
