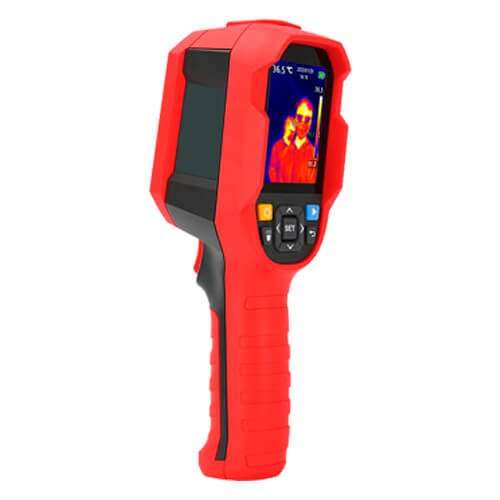

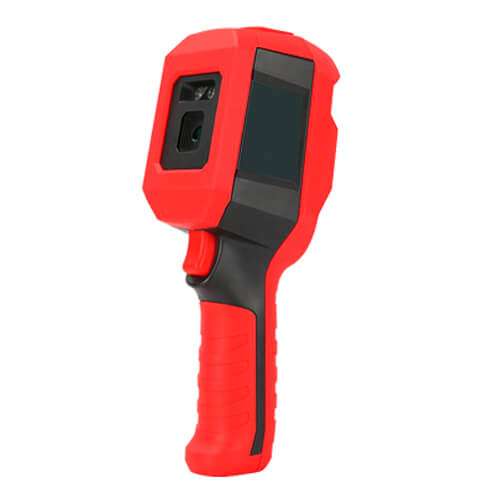

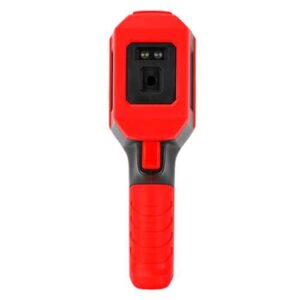

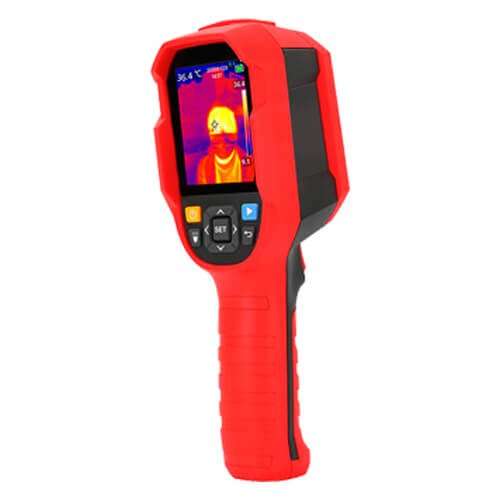

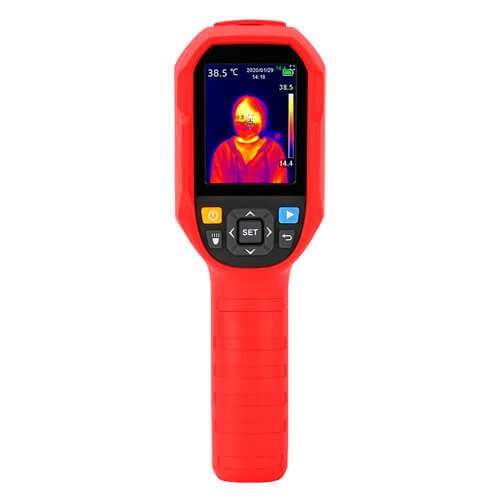

ZKTeco ZK-178S: Portable Infrared Thermal Imager

Description

ZKTeco ZK-178S: Portable Infrared Thermal Imager for Enhanced Temperature Monitoring and Safety

The ZKTeco ZK-178S is an advanced handheld infrared thermal imager, combining real-time temperature measurement with detailed thermal imaging to enhance safety and efficiency in diverse environments. Designed for quick and accurate surface temperature monitoring, the ZK-178S is particularly useful in industrial inspections, electrical maintenance, and public health screening applications. With a temperature range of 30°C to 45°C and an accuracy of ±0.5°C, the ZK-178S ensures precise temperature detection, making it a reliable tool for professionals across different sectors.

The ZK-178S is equipped with a range of features designed to make temperature monitoring easier and more effective. The high/low temperature alarms provide audio and visual alerts when temperatures exceed predefined limits, ensuring immediate awareness of abnormal conditions. Users can choose from multiple color palettes—such as Black-White, Red-White, Iron-Red, and Rainbow—to suit different applications and improve visualization. Additionally, the built-in flashlight allows for easy operation in low-light conditions, making the ZK-178S versatile for use across various settings.

Key Features

• Real-Time Thermal Imaging – Combines surface temperature measurement with real-time thermal imaging for quick and accurate temperature assessments.
• High/Low Temperature Alarm – Audio and visual alarms activate when temperatures exceed predefined thresholds, ensuring timely detection of abnormal conditions.
• Multiple Color Palettes – Choose from different color palettes, including Black-White, Red-White, Iron-Red, and Rainbow, for optimal visualization in different applications.
• Built-In Flashlight – High-brightness flashlight enhances usability in low-light or dark environments, ensuring efficient operation in any setting.
• User-Friendly Interface – Features a 2.8-inch TFT LCD display with a resolution of 320×240 pixels, providing clear and detailed thermal images for easy interpretation.

Technical Specifications

• Sensor: Uncooled Focal Plane Array
• Temperature Range: 30°C to 45°C
• Accuracy: ±0.5°C at 1 meter
• Thermal Resolution: 80×60 pixels
• Field of View (FOV): 51° (H) × 38° (V)
• Frame Rate: <9Hz
• Battery Life: Up to 6 hours
• Storage: Supports Micro SD cards

Applications

The ZKTeco ZK-178S is ideal for a range of applications, including industrial inspections, electrical maintenance, and public health screenings. Its precision temperature detection capabilities, coupled with user-friendly features such as alarms and a built-in flashlight, make it an indispensable tool for professionals working in environments requiring quick and accurate temperature monitoring.

Why Choose ZKTeco ZK-178S?

• Accurate Temperature Monitoring – Offers precise surface temperature measurement, ensuring reliability in various safety and maintenance applications.
• Built for Versatility – Features a built-in flashlight for operation in low-light environments, making it suitable for inspections in challenging conditions.
• Quick and Easy to Use – A user-friendly interface with real-time imaging allows users to quickly identify potential issues and make informed decisions.

Specifications

Downloads

Brochure
