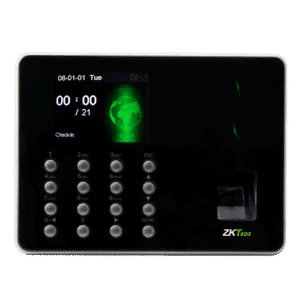

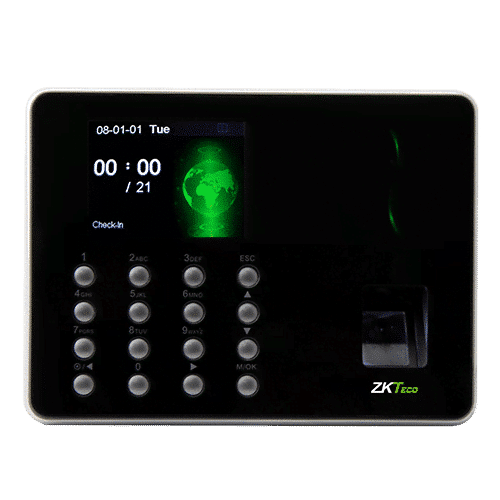

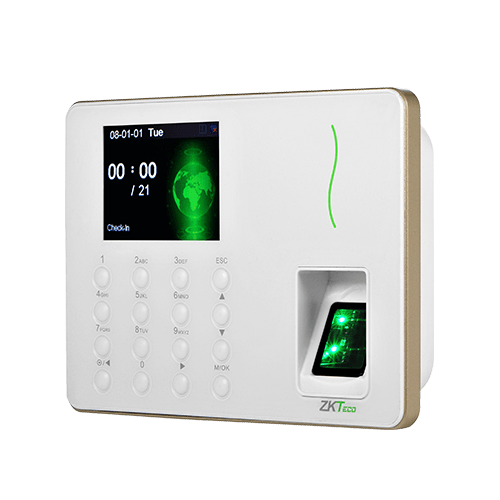

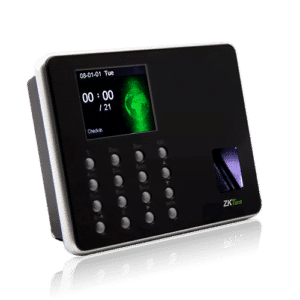

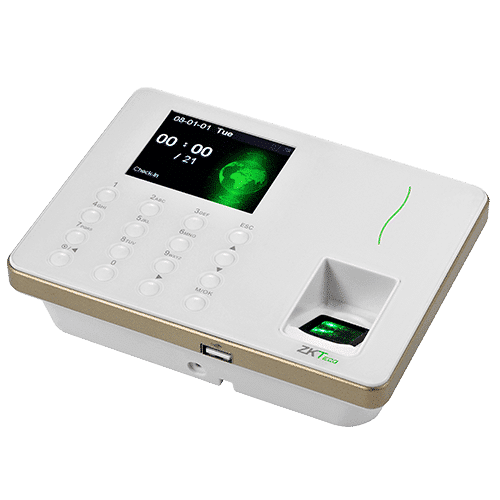

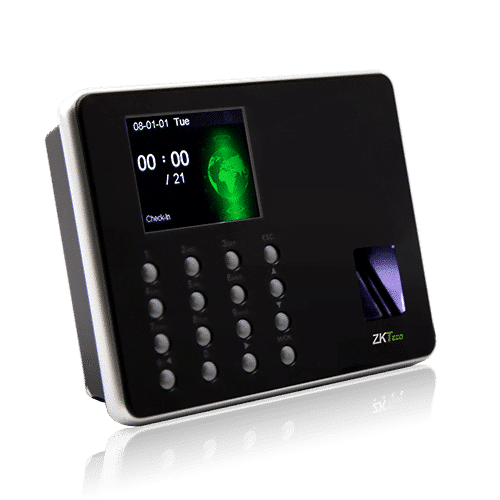

ZKTeco WL30: Fingerprint Time Attendance Terminal

Description

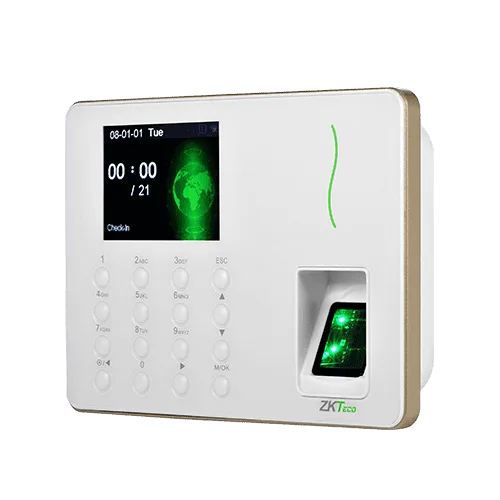

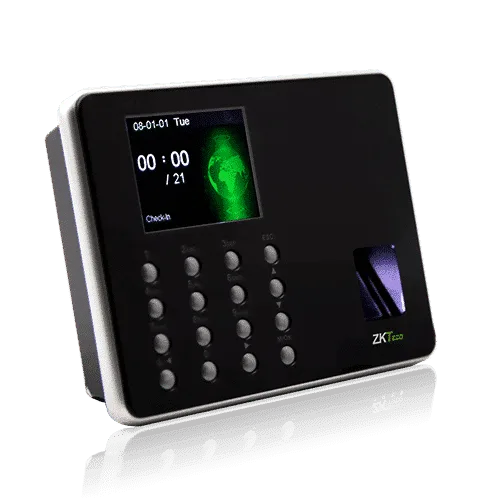

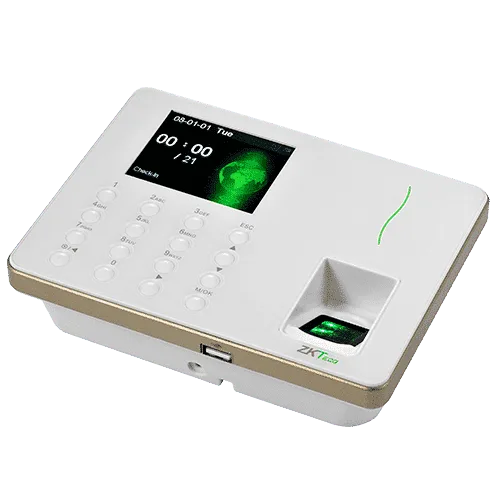

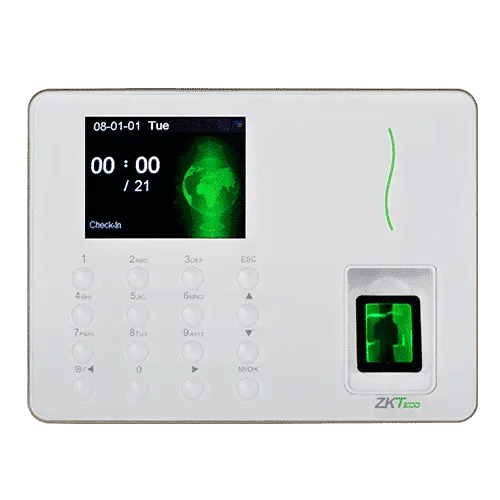

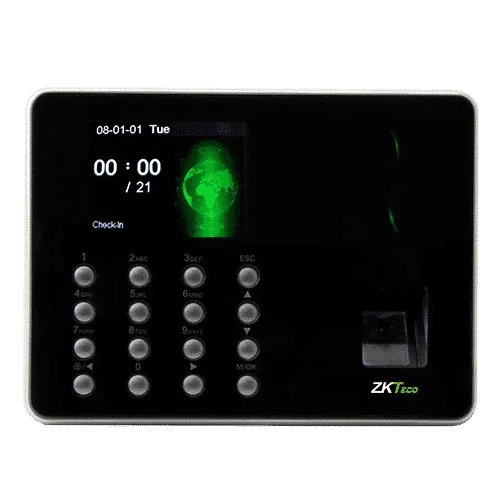

ZKTeco WL30: Advanced Fingerprint Time Attendance Terminal with Wi-Fi Capability

The ZKTeco WL30 is an innovative fingerprint time attendance terminal that brings convenience to workforce management through its built-in Wi-Fi capability, eliminating the need for traditional Ethernet cabling. Designed to support both networked and standalone modes, the WL30 is equipped with a 2.8-inch TFT screen and ZKTeco’s advanced fingerprint reader technology, ensuring accurate and fast fingerprint verification even in challenging conditions such as strong light or rough fingers.

The WL30 supports up to 1,000 fingerprint templates (expandable to 1,500) and can store up to 50,000 attendance records, making it suitable for small to medium-sized businesses. It offers multiple communication options, including Wi-Fi and USB-Host, for seamless data transfer and integration. Additionally, the WL30 comes with built-in SSR Excel software, allowing easy management of shifts and attendance reports. The terminal also supports integration with the TA Assistant mobile app, providing users with the ability to manage shifts and download reports directly from their smartphones.

Key Features

• Built-in Wi-Fi Module – Eliminates the need for Ethernet cabling, providing flexible installation options and seamless communication.
• Advanced Fingerprint Reader – Utilizes ZKTeco’s latest fingerprint reader technology, ensuring stable operation under strong light and accurate verification for wet and rough fingers.
• Mobile App Integration – Compatible with the TA Assistant mobile app, enabling users to download reports and manage shifts from their smartphones.
• Built-in SSR Excel Software – Includes Self-Service Recorder (SSR) Excel software for easy attendance tracking and shift management.
• High Record Capacity – Stores up to 1,000 fingerprint templates (expandable to 1,500 without SSR) and 50,000 transaction records.

Technical Specifications

• Fingerprint Capacity: 1,000 templates (expandable to 1,500 without SSR)
• Record Capacity: 50,000 attendance records
• Display: 2.8-inch TFT color display
• Communication: Wi-Fi, USB-Host
• Fingerprint Algorithm: ZKFinger V13.0 (default) or ZKFinger V10.0
• Standard Functions: SSR, DST, self-service query, automatic status switch, T9 input, 9-digit user ID
• Power Supply: DC 5V 0.8A
• Operating Temperature: 0°C to 45°C
• Operating Humidity: 20% to 80%
• Dimensions: 168 x 125 x 37.5 mm

Applications

The ZKTeco WL30 is ideal for small to medium-sized businesses that need an efficient and flexible time attendance management solution. Its Wi-Fi capability, mobile app integration, and built-in attendance tracking features make it suitable for use in offices, retail stores, and other environments requiring reliable workforce management.

Why Choose ZKTeco WL30?

• Wi-Fi Connectivity – Built-in Wi-Fi support eliminates the need for Ethernet cabling, providing flexibility in installation and seamless communication.
• Advanced Fingerprint Reader – Ensures stable and accurate verification even under challenging conditions, providing reliable security and attendance management.
• Mobile App Support – Integrates with the TA Assistant mobile app for convenient attendance management directly from your smartphone.
