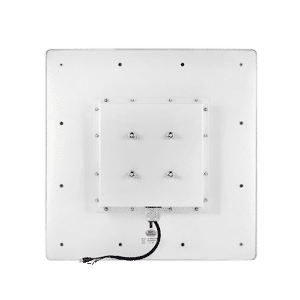

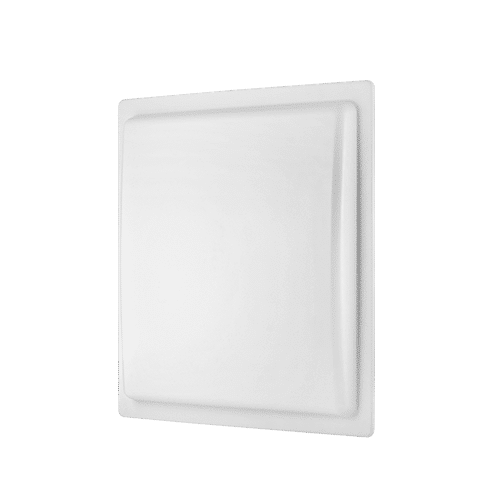

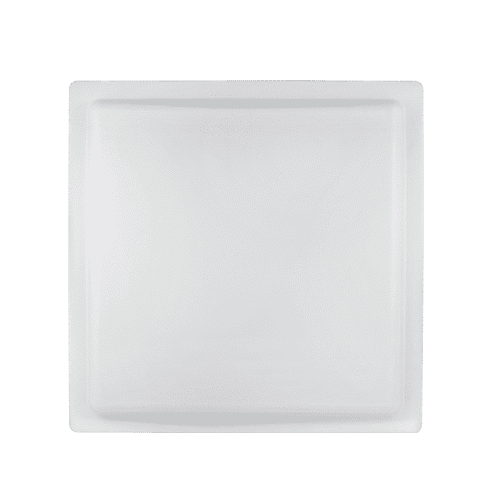

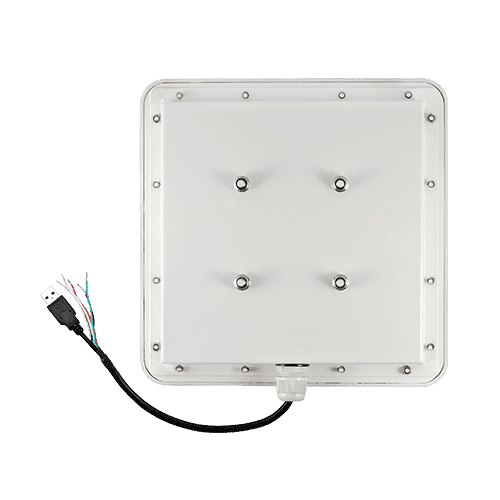

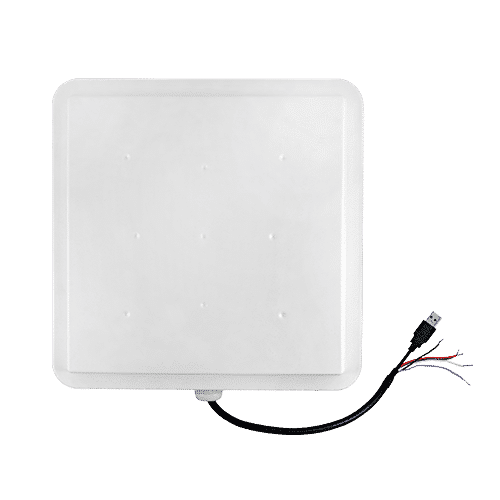

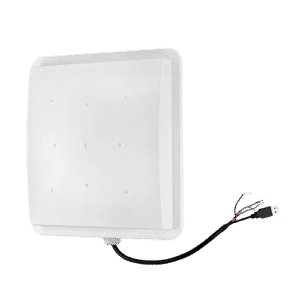

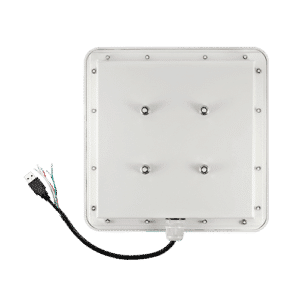

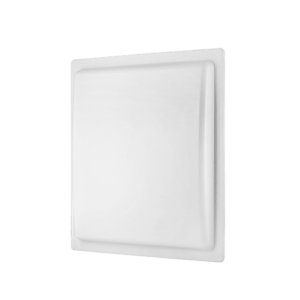

ZKTeco UHF 5 Series: Long-Range RFID Reader

Description

ZKTeco UHF 5 Series: Advanced Long-Range RFID Readers for Modern Access Control

The ZKTeco UHF 5 Series consists of advanced Ultra High Frequency (UHF) RFID readers, providing efficient long-distance identification for applications like vehicle access and personnel management. With a reading range of up to 6 meters, the UHF 5 Series readers offer flexibility and stable performance, making them suitable for access control, parking management, and asset tracking.

Equipped with multiple communication interfaces, including Wiegand and RS485, the UHF 5 Series ensures compatibility with a wide range of access control systems. The readers feature dual working modes—’Trigger to Read’ and ‘Always Read’—allowing users to choose the optimal operating mode based on specific requirements. With IP66 protection, the UHF 5 Series is ideal for both indoor and outdoor environments, ensuring reliable operation even under challenging conditions.

Please note that the ZKTeco UHF 5 Series has been upgraded to the Pro Series, which features enhanced performance and additional functionalities. Learn more about the ZKTeco UHF 5/10 Pro Series here.

Key Features

• Extended Reading Range – Offers an adjustable reading distance of up to 6 meters, providing efficient long-range identification.
• Dual Working Modes – Supports ‘Trigger to Read’ and ‘Always Read’ modes, giving flexibility for different operational needs.
• Multiple Communication Interfaces – Equipped with Wiegand and RS485 interfaces for compatibility with various access control systems.
• Visual Indicators – LED indicator with seven color options to display reading status, enhancing user experience.
• Robust Design for Outdoor Use – Built with IP66 protection, ensuring durability in harsh environments.

Technical Specifications

• Dimensions: 308.5 mm × 308.5 mm × 67.5 mm
• Weight: 1.8 kg
• Power Consumption: 1.2 – 4.2 W
• Frequency Range: 865 MHz – 868 MHz (Region E); 902 MHz – 906 MHz (Region F)
• Output Power: Adjustable between 19 dBm and 30 dBm
• Operating Voltage: DC 9 – 15 V
• Operating Temperature: -20°C to 80°C
• Communication Baud Rates: Supports multiple baud rates, with 115200 as the default

Applications

The ZKTeco UHF 5 Series is ideal for various applications requiring reliable long-distance RFID reading, such as parking lot management, vehicle access control, and asset tracking. Its advanced features ensure efficient and secure operations across diverse environments, and the upgraded Pro Series now provides even better capabilities to meet modern requirements.

Why Choose ZKTeco UHF 5 Series?

• High Performance – Efficient long-range identification and robust design make it ideal for high-traffic applications.
• Upgradable to Pro Series – Enjoy enhanced features and improved performance with the new UHF 5/10 Pro Series, ensuring future-proof technology investments.
• Ease of Installation – Designed for quick and easy installation, reducing setup time and costs.
