ZKTeco U1000 & U2000: Long Distance RFID Access Control

Description

ZKTeco U1000 & U2000: Comprehensive Long-Distance RFID Access Control Solutions

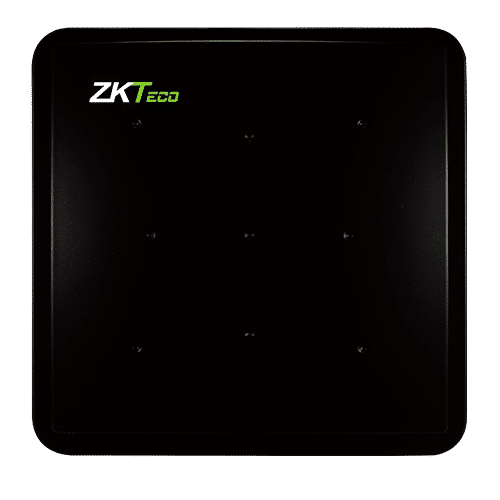

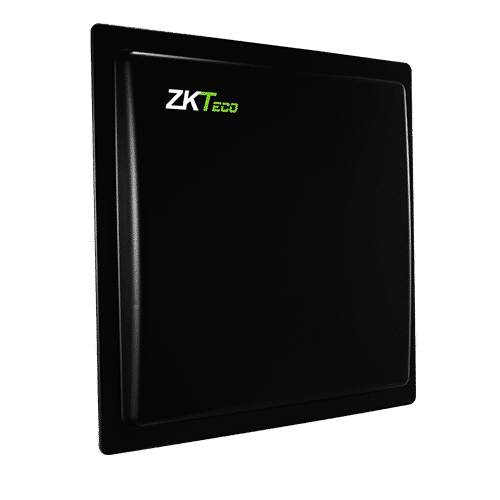

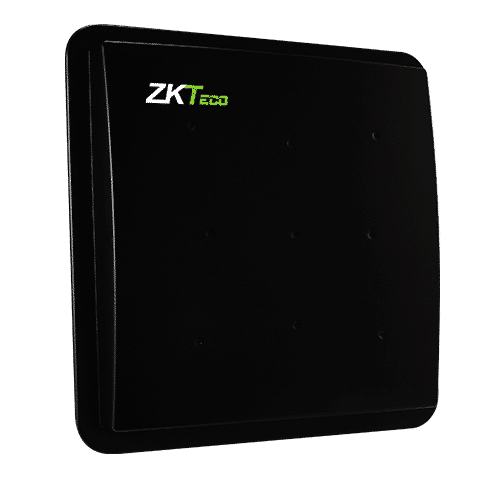

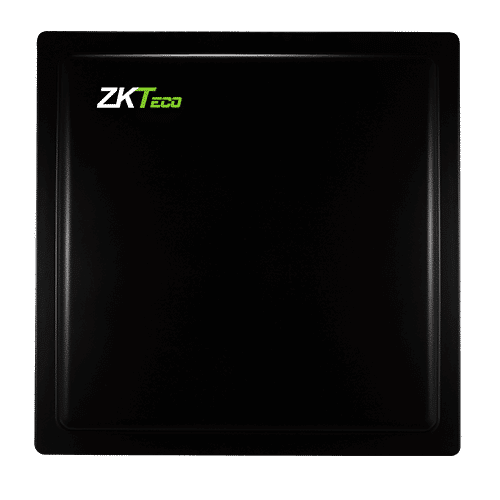

The ZKTeco U1000 and U2000 are advanced RFID access control devices that seamlessly integrate the functionalities of UHF readers and access controllers. Unlike conventional UHF readers, these devices come with enhanced access control capabilities, supporting multiple communication modes including TCP/IP, Wiegand in/out, and USB. This feature set ensures effortless installation and user-friendly operation, making these devices suitable for a wide range of applications such as parking lot management, gated communities, and industrial access control.

The U1000 offers a reading distance of up to 6 meters, while the U2000 extends up to 12 meters, providing flexibility for various access control applications. Both models support up to 5,000 card entries and store up to 30,000 transaction records, making them ideal for environments that require high-capacity and reliable access management. With a robust IP66 protection rating, these devices are suitable for outdoor use, ensuring reliable operation in various environmental conditions. Additionally, they are compatible with ZKAccess 3.5 and ZKBioSecurity 3.0 software, providing efficient and centralized management of access control systems.

Key Features

• Long-Distance Reading – U1000 supports a reading distance of up to 6 meters, while U2000 extends to 12 meters, ideal for parking lots and gated communities.
• High Capacity – Supports up to 5,000 card entries and can store up to 30,000 transaction records, accommodating extensive access control needs.
• Robust Communication Options – Equipped with TCP/IP and USB interfaces, allowing seamless integration into diverse networking environments.
• Comprehensive Access Control – Includes support for third-party electric locks, door sensors, exit buttons, alarms, and Wiegand input/output for enhanced security and control.
• Software Compatibility – Compatible with ZKAccess 3.5 and ZKBioSecurity 3.0 software for efficient and centralized access control management.
• Durable Design – With an IP66 protection level, these devices are suitable for outdoor use, ensuring reliability in various environmental conditions.

Technical Specifications

• Card Capacity: 5,000 cards
• Transaction Capacity: 30,000 records
• Working Frequency: F Series: 902MHz–926MHz; E Series: 865MHz–868MHz
• Reading Distance: U1000: up to 6 meters; U2000: up to 12 meters
• Communication: TCP/IP, USB
• Access Control Interface: Supports third-party electric lock, door sensor, exit button, alarm, Wiegand in/out
• Access Control Functions: Standard access functions, anti-passback
• Output Power: 18dBm–26dBm
• Power Supply: DC12V, 3A
• Operating Temperature: -20°C to +60°C
• Operating Humidity: <95% (25°C)
• Dimensions: U1000: 250mm x 250mm x 70mm; U2000: 445mm x 445mm x 70mm

Applications

The ZKTeco U1000 and U2000 are ideal for long-distance access control applications such as parking lot management, gated communities, and industrial facilities. Their long reading distance and comprehensive access control features make them a reliable choice for environments that require high capacity and security. With compatibility for outdoor use, they provide a versatile solution for managing secure access in diverse conditions.

Why Choose ZKTeco U1000 & U2000?

• Long-Distance Capability – Ideal for applications that require extended reading distances, such as parking lots and gated communities.
• Advanced Security Integration – Comprehensive access control features including support for electric locks, door sensors, and alarms.
• Durable and Weatherproof – IP66-rated design ensures reliable operation in outdoor environments.
