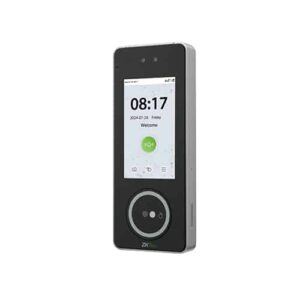

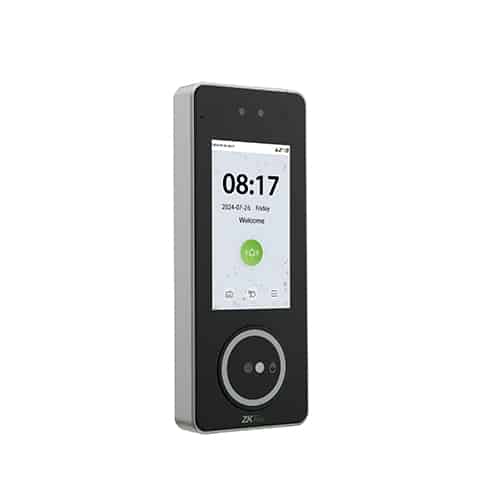

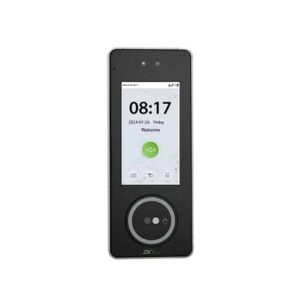

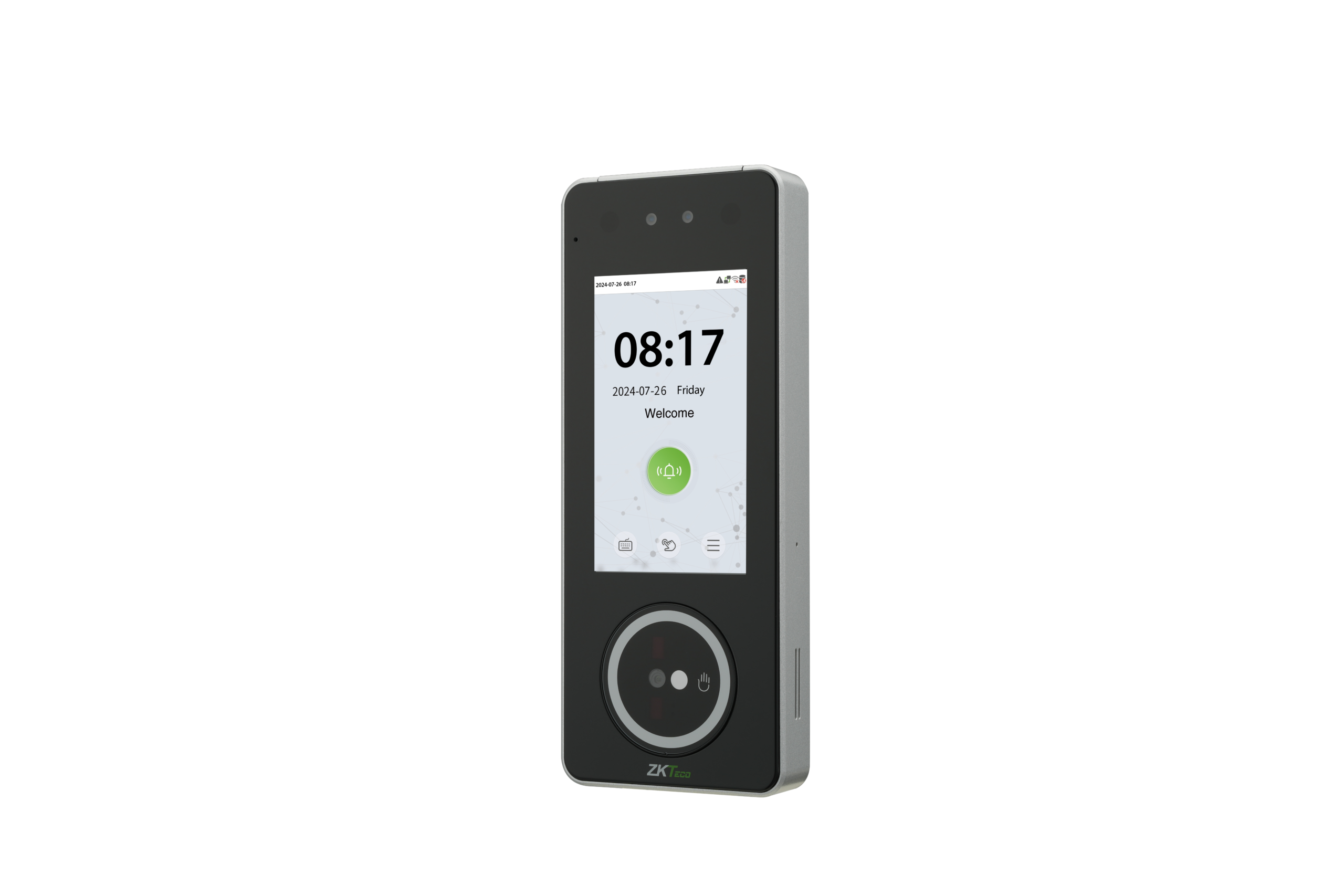

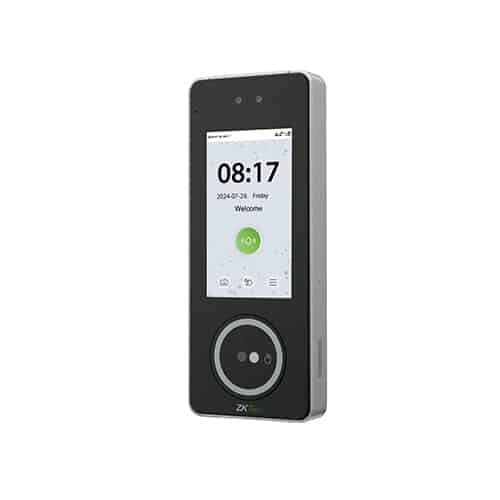

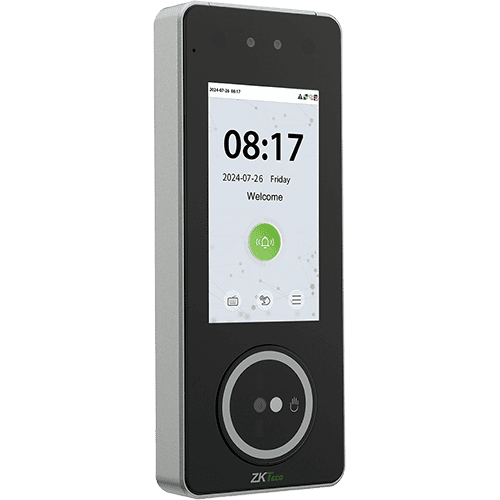

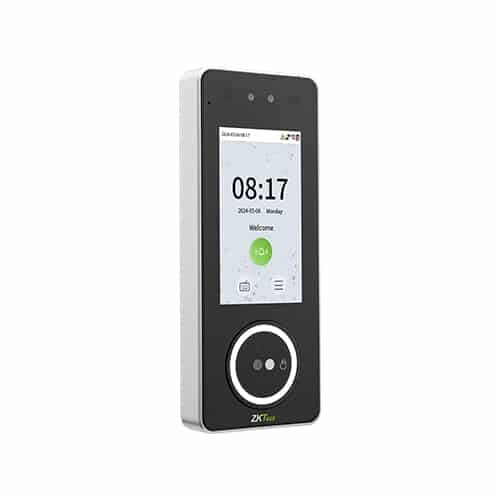

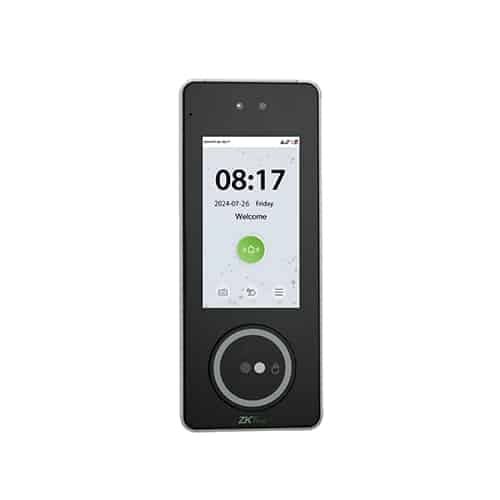

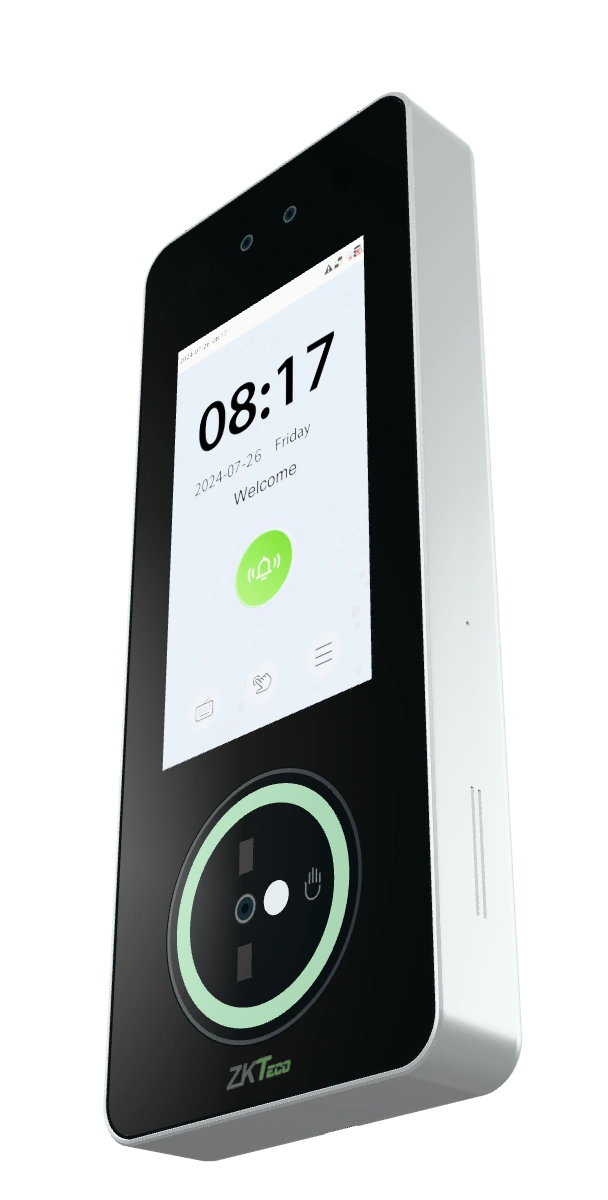

The ZKTeco SpeedPalm V5L is a state-of-the-art access control terminal that utilizes visible light face and palm authentication technologies. Offering touchless, hygienic access verification, it ensures fast and secure identification for corporate, healthcare, and educational environments.
Combining advanced anti-spoofing technology, fast recognition speeds, and seamless software integration, the SpeedPalm V5L offers reliable, next-gen access control for today’s businesses.
The ZKTeco SpeedPalm V5L is an innovative access control terminal equipped with advanced visible light face and palm authentication technologies. By leveraging the latest algorithms and computer vision advancements, it provides a hygienic, touchless biometric verification experience, supporting multiple identification methods such as face, palm, and card recognition.
The SpeedPalm V5L is ideal for:
The SpeedPalm V5L offers a comprehensive, touchless biometric access control solution that enhances security, improves user experience, and integrates seamlessly into various environments. Its advanced features and robust performance make it an excellent choice for modern access control needs.
| Feature | Specification |
|---|---|
| Model | SpeedPalm-V5L |
| Display | 5"@ ISP Color LCD Touch Screen (720*1280) |
| Camera | WDR Low Light Camera @ 2MP |
| Operation System | Linux |
| Hardware | CPU: 1GHz Dual Core RAM: 1G; ROM: 8G Supplement Light: Yes |
| Visual Indicator | Steady Green LED: Normal Status Steady White LED: Authentication in Progress Steady Red LED: Error/ Fault |
| Authentication Method | Face / Palm / Card / Password (Virtual Keypad) |
| Face Template Capacity | 10,000 (1:N) |
| Palm Template Capacity | 5,000 (1:N) |
| Card Capacity | 10,000 (1:N) |
| Transaction Capacity | 200,000 |
| Biometric Verification Speed | less than 1 sec (Facial Authentication) less than 0.35 sec (Palm Authentication) |
| Touchless Biometric Recognition Distance | 1cm to 100cm (Facial Authentication) 5cm to 15cm (Palm Authentication) |
| False Acceptance Rate (FAR) % | FAR ≤ 0.01% (Visible Light Facial Authentication) FAR ≤ 0.01% (Palm Authentication) |
| False Rejection Rate (FRR) % | FRR ≤ 0.02% ( Visible Light Facial Authentication) FRR ≤ 0.17% (Palm Authentication) |
| Biometric Algorithm | ZKFace V3.9 & PalmElite3.3.3 |
| Card Type | ID Card@125 kHz (Standard) IC Card@13.56 MHz (Optional) |
| Communication | TCP/IP*1 Wi-Fi (IEEE 802.1 a/b/g/n/ac) @2.4GHz ; 5GHz Wiegand (Input or Output)*1 RS485: ZKTeco RS485*1 Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm *1 |
| Standard Functions | ADMS, T9 Input, 14-digit User ID, Access Levels, Groups, Holidays, Antipassback, Record Query, Schedule Bell, Tamper Switch Alarm, Mask Detection ,Multiple Verification Methods, SIP 2.0 Protocol, AC Push and TA Push Protocol Switch |
| Optional Functions | IC Card, ZSmart APP |
| Power Supply | 12V DC 3A |
| Operating Temperature | -10°C to 45°C (14°F to 113°F) |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | 227.3 *92.3 * 24.5 (mm) (L*W*D) |
| Gross Weight | 1.3 Kg |
| Net Weight | 0.62 Kg |
| Supported Software | Software: ZKBio CVAccess / ZKBio Time / ZKBio CVSecurity Mobile App: ZSmart |
| Installation | Wall-mount (Compatible with Asian Gang-box / Single Gang-Box) |
| Housing Material | Aluminium Alloy |
| Ingress Protection Rating | / |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
