ZKTeco SBTL5200: Swing Barrier Turnstile

Description

ZKTeco SBTL5200: Cost-Effective Swing Barrier Turnstile for Seamless Access Control

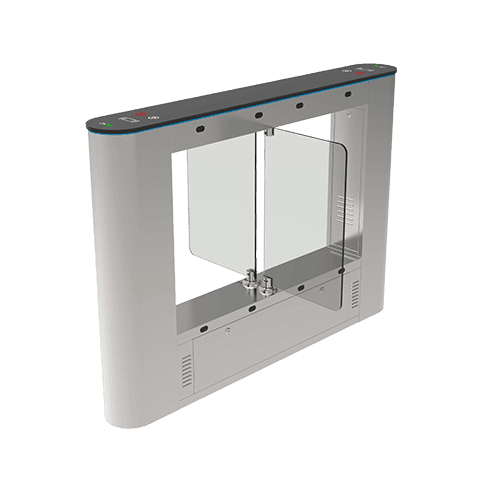

The ZKTeco SBTL5200 is an advanced swing barrier turnstile designed to manage high-traffic volumes efficiently. It is an additional lane module for the SBTL5000 series, making it ideal for creating multiple lanes to handle crowd movement smoothly. Crafted from SUS304 stainless steel, the SBTL5200 combines durability, aesthetics, and security, making it suitable for corporate offices, government buildings, and public transportation hubs.

The SBTL5200 features a user-friendly interface, including an LCD screen that displays the current operating status, making it easy for operators to manage and maintain. Engineered for silent and smooth operation, the turnstile consumes minimal power, ensuring a quiet and efficient environment. Available models, including the SBTL5211 (with RFID reader) and SBTL5222 (with fingerprint and RFID readers), provide additional flexibility for diverse access control needs.

Key Features

• Durable Construction – Built with SUS304 stainless steel for long-lasting durability and resistance to corrosion.
• Smooth Operation – Designed for silent operation with minimal power consumption, making it ideal for environments where quiet functionality is important.
• Integrated Access Control – Available models with RFID reader (SBTL5211) and fingerprint reader (SBTL5222) for enhanced security and ease of use.
• User-Friendly Interface – Equipped with an LCD screen that displays the current operating status for easy operation and maintenance.
• Safety Features – Includes emergency modes and ergonomic design to ensure user safety and prevent unauthorized access.

Technical Specifications

• Power Requirements: AC 100 ~ 120V/200 ~ 240V, 50/60Hz
• Operating Temperature: -28°C to 60°C
• Operating Humidity: 20% to 95% (non-condensing)
• Throughput Speed: Up to 30 people per minute with RFID, 25 people per minute with fingerprint verification
• Lane Width: 650 mm
• Dimensions: 1400 mm (L) x 180 mm (W) x 1000 mm (H)
• Net Weight: 72 kg
• Mean Cycles Between Failures (MCBF): 2 million cycles

Applications

The ZKTeco SBTL5200 is perfect for applications requiring efficient and secure access control in high-traffic areas. Its elegant design and robust construction make it ideal for corporate offices, government buildings, public transportation hubs, and other locations where aesthetics and security are equally important. The modular design allows for easy integration with existing access control systems, providing a scalable solution for expanding security needs.

Why Choose ZKTeco SBTL5200?

• Cost-Effective Solution – The additional lane module provides a flexible and scalable option for expanding access control requirements without compromising quality.
• Multiple Access Options – Choose from RFID and fingerprint verification models, ensuring a tailored solution for your security needs.
• Reliable and Easy to Maintain – Engineered for long-lasting use with a user-friendly LCD interface, ensuring straightforward maintenance and seamless operation.
