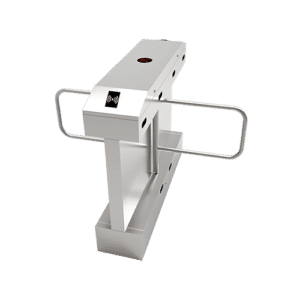

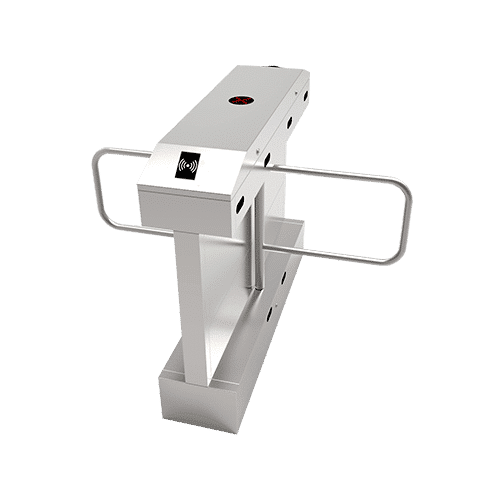

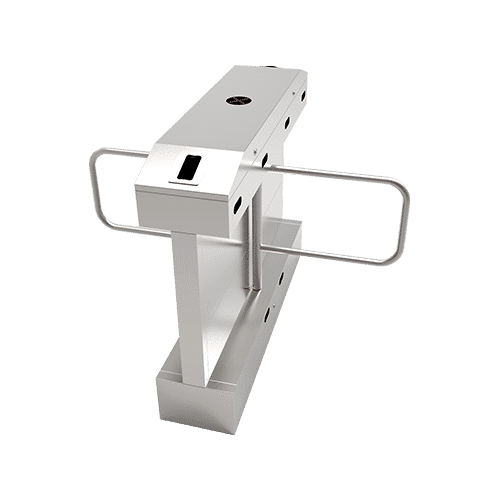

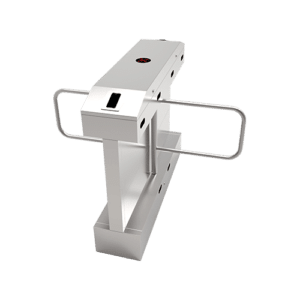

ZKTeco SBTL2200: Swing Barrier Turnstile

Description

ZKTeco SBTL2200: High-Traffic Swing Barrier Turnstile with Smooth Operation

The ZKTeco SBTL2200 is a swing barrier turnstile designed to serve as an additional lane in high-traffic environments. It is intended to work in conjunction with the SBTL2000 series to create multiple lanes, providing a cost-effective and elegant entrance control solution for office buildings, airports, public transportation hubs, and other areas that require efficient pedestrian management. Crafted from SUS304 stainless steel, the SBTL2200 ensures longevity and resistance to wear, making it ideal for environments with high throughput requirements.

The SBTL2200 features a smooth and silent swing barrier mechanism, providing a user-friendly experience for individuals passing through. With the capability to process up to 30 individuals per minute using RFID authentication and up to 25 individuals per minute with fingerprint recognition, the SBTL2200 offers efficient crowd management, making it suitable for high-volume locations. In the event of an emergency, the barriers automatically swing open, allowing free passage to ensure safety and compliance with emergency protocols.

Key Features

• Durable Construction – Made from SUS304 stainless steel for longevity and resistance to wear, suitable for high-traffic environments.
• Smooth Operation – Features a smooth and silent swing barrier mechanism for a user-friendly experience.
• High Throughput – Capable of processing up to 30 individuals per minute using RFID authentication, ensuring efficient crowd management.
• Wide Lane Width – Supports a lane width of up to 1,050 mm, accommodating various user needs, including those requiring wider access.
• Emergency Mode – Barriers automatically swing open in the event of an emergency, ensuring safe and unrestricted passage.

Technical Specifications

• Power Requirements: AC110V/220V, 50/60Hz
• Operating Temperature: -28°C to 60°C
• Operating Humidity: 5% to 80%
• Dimensions: 1200 mm (L) x 280 mm (W) x 1000 mm (H)
• Net Weight: 68 kg
• Mean Cycles Between Failures (MCBF): 2 million cycles

Applications

The ZKTeco SBTL2200 is ideal for high-traffic environments where multiple lanes are required, such as office buildings, airports, public transportation hubs, and other public facilities. Its durable construction, wide lane width, and emergency mode make it suitable for ensuring secure, smooth, and safe pedestrian flow in various settings.

Why Choose ZKTeco SBTL2200?

• Cost-Effective and Elegant Design – Provides an elegant entrance control solution for creating additional lanes in high-traffic environments, complementing the SBTL2000 series.
• Durable and Reliable – Made from high-quality stainless steel, the SBTL2200 offers reliable performance even in high-traffic areas.
• Emergency Safety Features – The swing barrier opens automatically in emergencies, ensuring safe and unrestricted access.

Specifications

Downloads

Brochure
Instructions
Installation Guide
