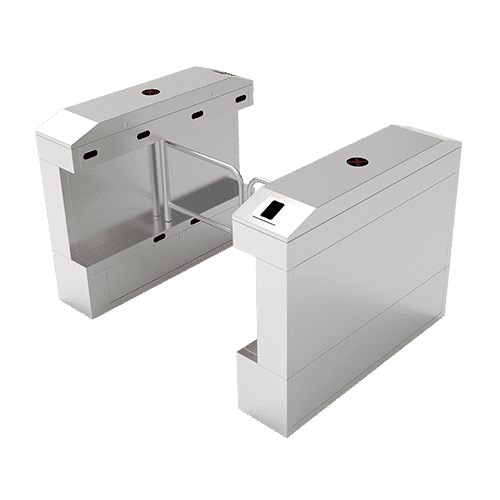

ZKTeco SBTL2000: Single Lane Swing Barrier Turnstile
ZKTeco SBTL2000
The ZKTeco SBTL2000 is a durable single lane swing barrier turnstile designed for high-traffic areas. Equipped with RFID and/or fingerprint recognition technology, the SBTL2000 offers secure access control to the desired side. Its swing barrier movement allows for efficient throughput of up to 30 people per minute with RFID, and 25 people per minute with fingerprint.
The SBTL2000 has several parameters including power requirements of AC110V/220V at 50/60Hz, working temperature range of -28°C to 60°C, working humidity range of 5% to 80%, speed of throughput with RFID at maximum 30/minute and fingerprint at maximum 25/minute.
Features
- Supports RFID and fingerprint authentication
- Maximum throughput of 30 people per minute with RFID
- Maximum throughput of 25 people per minute with fingerprint
- Made of stainless steel
- Smooth and silent operation
Product Details
The ZKTeco SBTL2000 is a single lane swing barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes SBTL2000 highly durable. The SBTL2000 is an elegant cost-effective entrance control system designed for high-traffic volume.
The turnstile has swing barriers made of SUS304 stainless steel, LED indicators, and emergency mode support. It has several parameters including power requirements of AC110V/220V at 50/60Hz, working temperature range of -28°C to 60°C, working humidity range of 5% to 80%, speed of throughput with RFID at maximum 30/minute and fingerprint at maximum 25/minute, lane width of 1,050mm, footprint of 1610mm by 1200mm, dimensions of 1200mm by 280mm by 1000mm, net weight of 118kg, LED indicator support, SUS304 stainless steel cabinet material and lid material, SUS304 stainless steel barrier material, barrier movement swing, emergency mode support.
Specifications
| Feature | Specification |
|---|---|
| Power Requirements | AC110V/220V, 50/60Hz |
| Working Temperature | -28°C to 60°C |
| Working Humidity | 5% to 80% |
| Speed of Throughput | RFID: Maximum 30/min |
| Fingerprint: Maximum 25/min | |
| Lane Width (mm) | 1050mm |
| Footprint (mm x mm) | 1610 x 1200 |
| Dimensions (L x W x H) | 1200 x 280 x 1000 (mm) |
| Dimensions with Packing (L x W x H) | 1310 x 800 x 1100 (mm) |
| Net Weight (kg) | 118 kg |
| Weight with Packing (kg) | 160 kg |
| LED Indicator | Supported |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | SUS304 Stainless Steel |
| Barrier Material | SUS304 |
| Barrier Movement | Swing |
| Emergency Mode | Supported |
| Security Level | Medium |
| Warranty | 1 year |
