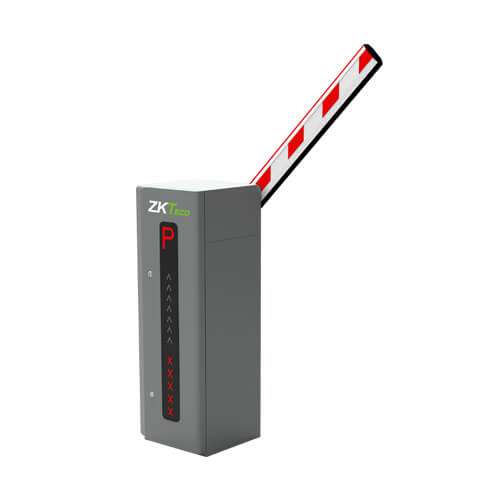

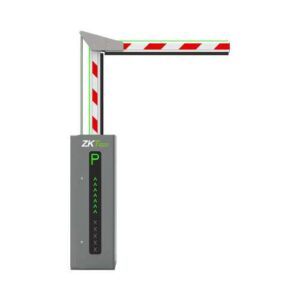

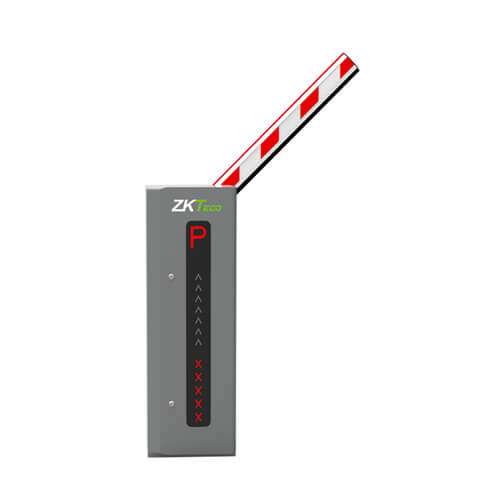

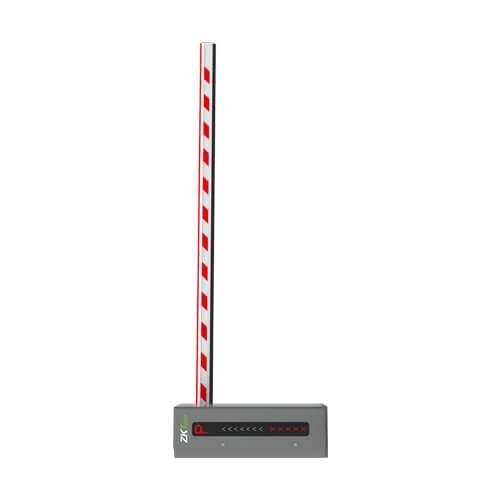

ZKTeco ProBG3000: Barrier Gate for Vehicle Access Control

Description

ZKTeco ProBG3000: High-Performance Vehicle Barrier Gate for Efficient Access Control

The ZKTeco ProBG3000 is a high-speed barrier gate designed to provide reliable and efficient vehicle entrance control. It is suitable for a wide range of applications, including expressways, business centers, commercial buildings, airports, seaports, and transport stations. Built with a robust servo motor and an innovative transmission structure, the ProBG3000 is designed for high durability and long-term use, with a Mean Cycles Between Failures (MCBF) of up to 5 million cycles, significantly extending its lifespan compared to traditional barrier gates.

The ProBG3000 is equipped with a servo motor that allows the opening and closing speed to be adjusted between 0.9 and 10 seconds, depending on the vehicle flow and boom length. This adjustable speed feature ensures efficient traffic management in both high-volume and regular traffic scenarios. Additionally, the ProBG3000 is energy efficient, with a low power consumption design that can save approximately 500 kWh per year. The barrier gate is also designed to operate in a wide range of temperatures, from -40°C to +75°C, making it a reliable solution for various environmental conditions.

Key Features

• High Reliability – With a Mean Cycles Between Failures (MCBF) of up to 5 million cycles, the ProBG3000 ensures extended durability and reduced maintenance.
• Adjustable Speed – Opening and closing speed can be adjusted between 0.9 to 10 seconds, providing flexibility for different traffic scenarios.
• Wide Operating Temperature Range – Capable of operating in temperatures ranging from -40°C to +75°C, ensuring reliability in various environmental conditions.
• Energy Efficiency – Low power consumption, saving approximately 500 kWh per year, making it an environmentally friendly choice.
• Advanced Safety Features – Anti-collision boom connector design, automatic boom rise during power outage, and obstruction detection for enhanced safety.

Technical Specifications

• Motor Type: Servo Motor
• Boom Type: Straight boom
• Boom Length: Supports 3m, 4.5m, and 6m (adjustable)
• Ingress Protection Level: IP54
• Operating Temperature: -40°C to +75°C
• Power Supply: 24V DC, 100 to 240V AC
• Frequency: 50 to 60Hz
• Power Consumption: 100W
• Case Material: Powder-coated steel
• Case Size: 360mm (L) x 330mm (W) x 1000mm (H)
• Net Weight: 43 kg

Applications

The ZKTeco ProBG3000 is ideal for high-traffic areas requiring reliable and efficient vehicle access control. It is suitable for use in expressways, business centers, airports, seaports, commercial buildings, and transport stations. The ProBG3000’s adjustable speed, advanced safety features, and robust construction make it an effective solution for managing vehicle flow in environments that demand precision and reliability.

Why Choose ZKTeco ProBG3000?

• High Durability – With an MCBF of up to 5 million cycles, the ProBG3000 offers a long operational life with minimal maintenance.
• Customizable Speed – Adjustable opening and closing speed provide flexibility for different traffic demands, ensuring efficiency in both high and low traffic situations.
• Enhanced Safety Features – Equipped with an anti-collision boom connector, automatic boom rise during power outage, and obstruction detection for enhanced safety and reliability.
