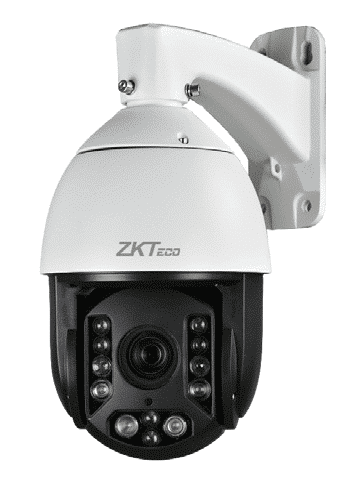

PL-852D18M – ZKTeco

The PL-852D18M is a compact 6-inch PTZ camera equipped with advanced human detection technology for efficient and reliable surveillance.

Compact Design: Only 6 inches, simplifying installation.
Human Detection: Minimizes false alarms with precise alerts.
PoE Function: Convenience in cabling and labor cost savings.
High Pan & Tilt Speed: Comprehensive HD video coverage.
Video Compression: Uses H.265 for high-quality video at lower bandwidths.
Durability: Functions in temperatures from -20°C to 60°C with up to 90% humidity.

Enquire Now

Product Details

Description
Specifications
Downloads
Reviews (0)

PL-852D18M - ZKTeco

System Overview:

The PL-852D18M is a premium PTZ camera by ZKTeco designed with cutting-edge human detection technology, ensuring efficient and secure surveillance.

Compact Design: Features a mini compact design of only 6 inches, simplifying installation.
Human Detection: Advanced human detection technology filters out false alarms and ensures accurate alerts.
PoE Function: Comes with a default Power over Ethernet function, offering convenience in cabling and cost savings on labor.
Pan & Tilt Speed: Achieves pan speeds of up to 180°/s and tilt speeds of up to 100°/s, ensuring comprehensive HD video coverage.
Optimized Video Compression: Uses H.265 technology which provides high-quality video at up to 70% lower bandwidth compared to H.264.
Durable for Harsh Conditions: Functions efficiently in temperatures ranging from -20°C to 60°C and up to 90% humidity.
Image & Video:
- Image Sensor: 1/2.9” 1080p CMOS
- Resolution: Main Stream at 1080p@25f/s and Sub Stream at 640 * 480@25f/s
- Compression: H.265 / H.264
- IR Range: 7pcs Array LED + 3pcs Laser IR + 2pcs Warm Stroble Lights with a range of 150m.
Network Features:
- Protocols: TCP/IP, UDP, HTTP, DHCP, RTSP, NTP
- Compatibility: Onvif profile S
- Web Browsers: IE, Chrome, Firefox
Miscellaneous:
- Weight: Net weight of 3.5kg and Gross weight of 4.5kg
- Protection: IP66 ingress protection
- Power: PoE / DC 12V 4A
- Dimensions: Φ185 * 375 (mm)

This product is ideal for SMB solutions including buildings, factories, and schools, both indoor and outdoor.

Specifications

Feature	Description
Model	PL-852D18M
Image Sensor	1/2.9” 1080p CMOS
FOV	55.4°(W) ~ 3.55°(T)
Scanning System	Progressive
Eletronic Shutter	Auto / Manual (1/5s - 1/100,000s)
Min. illumination	0.05Lux (color), 0.01Lux (BW), 0 Lux with IR on
IR Range	7pcs Array LED + 3pcs Laser IR + 2pcs Warm Stroble Lights, 150m
Compression	H.265 / H.264
Resolution	Main Stream: 1080p@25f/s Sub Stream: 640 * 480@25f/s
Bit Rate	Main Stream: 1024Kbps ~ 4Mbps Sub Stream: 160Kbps ~ 896Kbps
Bit Rate Control	CBR / VBR
Audio Compression	G.711a / G.711u (32Kbps) / PCM (128Kbps)
BLC	Supported
Human Detetion	Linkage with Sound / Strobe light and Track by human detection alarm
Audio I/O	Built-in with Speaker and Microphone
WDR	DWDR
Day / Night	Auto(ICR) / Color / B / W
White Balance	Auto / Custom / Locked WB / Incandescent Lamp / Warm Light / Natural Light / Fluorescent Lamp
Gain Control	Auto
Noise Reduction	2D & 3D DNR
Privacy Mask	Up to 5 areas
Network
Protocol	TCP/IP, UDP, HTTP, DHCP, RTSP, NTP
Onvif	Onvif profile S
Max. Online Users	3
Web Browser	IE, Chrome, Firefox
P/T
Pan / Tilt Range	Pan: 0°~ 360°, Tilt: -5°~ 90°
Pan Speed	0 ~ 180°/s
Tilt Speed	0 ~ 100°/s
Preset	255
Preset Speed	7-Level selection
Pattern Group	4
Auto Mode	Support Idle motion, Power-on auto detection, Rotation speed changes with optical zoom proportionally
Protocol	Pelco-D, Pelco-P
Net Weight	3.5kg
Ingress Protection	IP66
Working Environment	-20°C ~ 60°C, RH＜90%
Power Supply	PoE / DC 12V 4A
Lightning Protection	EDS 4000V
Tour Group	8
A-B Scan Group	8
Dimensions (LWH)	Φ185 * 375 (mm)
Gross Weight	4.5kg
Ordering Information
Type	2MP PTZ Camera
Part Number	PL-852D18M
Description	6 inches 2MP PTZ camera, 18X
