ZKTeco FBL2000 Pro: Single Lane Flap Barrier Turnstile

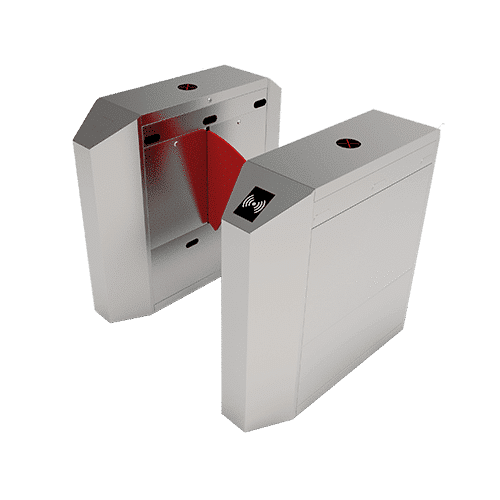

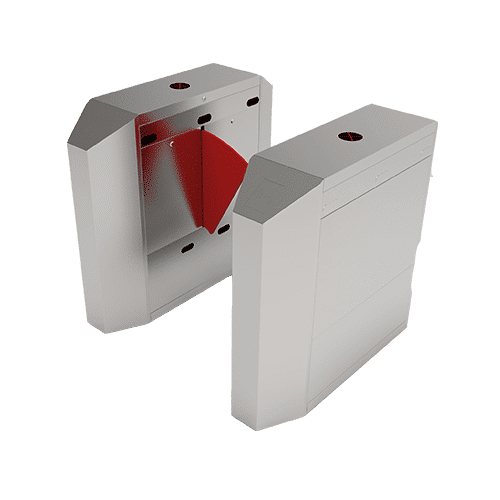

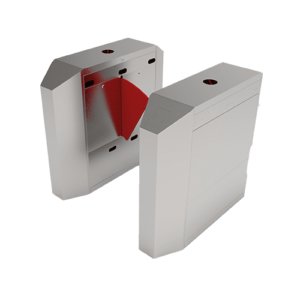

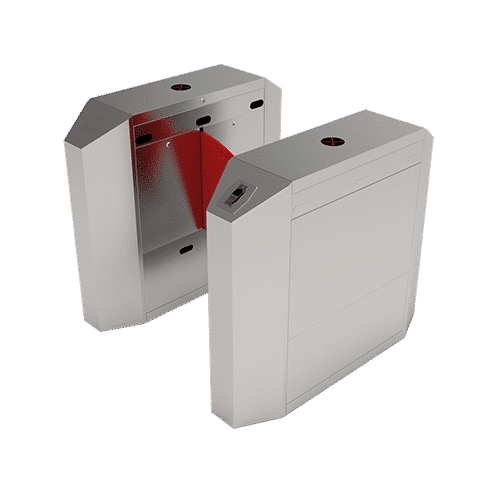

The ZKTeco FBL2000 Pro
A single lane flap barrier turnstile designed for smooth and silent operation. It’s made of stainless steel which makes it highly durable. The FBL2000 Pro barriers are normally held in a locked position, thus denying access to the secured side. Upon positive recognition by its reader (RFID and/or fingerprint), its barriers retract upward automatically, allowing users passage to the secured side.
It has several parameters including power requirements of AC 100V to 120V or 200V to 240V at 50/60Hz, working temperature range of -28°C to 60°C, working humidity range of 5% to 80%, working environment of indoor/outdoor (if sheltered), speed of throughput with RFID at maximum 30/minute and fingerprint at maximum 25/minute.
Features
- Supports RFID and fingerprint authentication
- Maximum throughput of 30 people per minute with RFID
- Maximum throughput of 25 people per minute with fingerprint
- Made of stainless steel
- Smooth and silent operation
Product Details
The ZKTeco FBL2000 Pro is a single lane flap barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL2000 Pro highly durable. The FBL2000 Pro barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL2000 Pro’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side.
The FBL2000 Pro has several parameters including power requirements of AC 100V to 120V or 200V to 240V at 50/60Hz, working temperature range of -28°C to 60°C, working humidity range of 5% to 80%, working environment of indoor/outdoor (if sheltered), speed of throughput with RFID at maximum 30/minute and fingerprint at maximum 25/minute, lane width of 600mm, footprint of 1200mm by 1150mm, dimensions of 1150mm by 300mm by 1000mm, net weight of 119kg, LED indicator support, SUS304 stainless steel lid material, acrylic barrier material (optional: tempered glass), barrier movement retracting, emergency mode support, medium security level, MCBF of 2 million.
Specifications
Feature | Specification |
---|---|
Power Requirements | AC 100-120V/200-240V, 50/60Hz |
Working Temperature | -28°C to 60°C |
Working Humidity | 5% to 80% |
Working Environment | Indoor/outdoor (if sheltered) |
Speed of Throughput | RFID Maximum: 30/minute Fingerprint Maximum: 25/minute |
Lane Width (mm) | 600 |
Footprint (mm*mm) | 1200*1150 |
Dimension (LWH) | 11503001000 (mm) |
Dimension with Packing (LWH) | 13107801250 (mm) |
Net Weight (kg) | 119 |
Weight with Packing (kg) | 156 |
LED Indicator | Supports |
Lid Material | SUS304 Stainless Steel |
Barrier Material | Acrylic (optional: tempered glass) |
Barrier Movement | Retracting |
Emergency Mode | Supports |
Security Level | Medium |
MCBF | 2 million |
Warranty | 1 year |
