Name: ZKTeco FBL1000 Pro: Single Lane Flap Barrier Turnstile - NZTeco
Brand: ZKTeco
SKU: 54

Build your own Estimate

Choose a Category to get started

Thanks! Your estimate is on the way 🙂

Please select a category to get started

Access Control

Time & Attendance

Turnstiles

Smart Door Locks

Vehicle Barriers & Inspection

CCTV Surveillance

Security Inspection

You need to select an item to continue

Next step

Access Control Estimator

How many doors require Access Control?

* This includes gates and turnstiles

Your selection

More than 4 Doors

Input Door Quantity

Reset Selection

Confirm

You need to select an item to continue

Next step

Previous step

What type of access control system do you require?

Swipe Card Reader

Keypad PIN Reader

Fingerprint Reader

Push button required for exit

Reader on both sides of the door

You need to select an item to continue

Next step

Previous step

Time & Attendance Estimate

Number of Time & Attendance devices required

Do you require Payroll integration?

Yes

No, just Time & Attendance

Do you have existing Payroll software?

Yes

Which Payroll software do you use?

You need to select an item to continue

Next step

Previous step

Locking Devices

Strike Lock

Maglock

V-Lock (Drop Bolt)

Mortice Lock

Reset Selection

Not sure which Lock to choose?

Don't worry, just pick the Maglock, which is the most common commercial lock. You can always change your selection later.

Locks Explained

Making sense of locks: An overview of designs, uses, and advice.

Electric Strike (Budget-friendly, Discrete)

How it Works: Works with your existing deadbolt for access control on interior doors. When activated, it releases a bolt to secure the door frame.

Good for: Adding access control to already secured doors. Discreet installation inside the door frame.

Not ideal for: Exterior doors as the primary lock (requires separate deadbolt for security).

Maglock (Easy Access, Budget-friendly)

How it Works: Electromagnet on the door frame holds the door shut with a magnetic pull.

Good for: High-traffic areas, especially glass doors (with appropriate mounting kits) where easy access control is needed. Budget-friendly option.

Considerations:

• New Zealand Building Compliance: May not meet minimum height requirements (1990mm from floor) for some applications.
• Aesthetics: Larger size might be less suitable for design-focused areas.

V-Lock (Drop Bolt Lock, High Security, Discrete)

How it Works: Similar to a deadbolt, but with a "V" shaped bolt for strong locking.

Good for: Exterior doors or high-security areas. Offers strong locking mechanism. Discreet installation inside the door frame.

Considerations: May not be the most budget-friendly option for all clients.

Electronic Mortise Lock (High Security, Discrete)
How it Works: Replaces existing mechanical lock and integrates with access control system.
Good for: Exterior doors or high-security entrances where key override is also desired. Discreet installation inside the door.
Good to Know: Generally more expensive than other options.

Additional Considerations:

Door Type:

• Electric Strike & Electronic Mortise Lock: Work with solid wood doors.
• Maglock & V-Lock: May require additional hardware for glass doors.

You need to select an item to continue

Next step

Previous step

Do you require tags or cards?

All of our readers can additionally read Tags and Cards

Tip!

You can also choose a combination of both.

RFID Cards

How many Cards?

RFID Tags (Fobs)

How many Tags?

Not required? Just hit Next step

You need to select an item to continue

Next step

Previous step

Staff Details

How many staff will use the system?

* Estimated

You need to select an item to continue

Next step

Previous step

Staff Details

With Payroll

How many staff will used the system?

* Estimated

Timesheets Required

Payroll Required

You need to select an item to continue

Next step

Previous step

COMING SOON!

Estimator Unavailable for Some Departments

Our pricing estimator is now available for Access Control and Time & Attendance only. We're actively working to include more departments. Thank you for your patience.

For pricing on other services, please call us at 09 3205 396, email sales@nzteco.co.nz, or leave your contact details below for a callback.

You need to select an item to continue

Next step

Previous step

Turnstile Access Control

Full Height Turnstiles

Tripod Turnstiles

Swing Barrier

Flap Barriers (Speed Gates)

* Click the image again to reset your selection

You need to select an item to continue

Next step

Previous step

Full Height Turnstile Pricing

Single Lane

Quantity

Double Lane

You need to select an item to continue

Next step

Previous step

Estimated Cost Completed

The final estimated price is :

Required:

Enter your email to receive the estimate

Please allow around 5 minutes for our clever bots to generate the estimate for you.

Optional info:

First Name

Last Name

Contact Number

Message

Anything else you'd like to let us know?

The estimated cost is charged monthly

Summary

Description	Information	Quantity	Price
Discount :
Total :

Email Estimate

Previous step

Feature	Specification
Power Requirements	AC 100 to 120V/200 to 240V, 50/60Hz
Working Temperature	-28°C to 60°C
Working Humidity	5% to 80%
Working Environment	Indoor/outdoor (if sheltered)
Speed of Throughput	RFID: Maximum 30/minute Fingerprint: Maximum 25/minute
Lane Width (mm)	600
Footprint (mm*mm)	1200*870
Dimension (LWH)	8703001000 (mm)
Dimension with Packing (LWH)	8703001000 (mm)
Net Weight (kg)	97
Weight with Packing (kg)	144
LED Indicator	Supports
Cabinet Material	SUS304 Stainless Steel
Lid Material	SUS304 Stainless Steel
Barrier Material	Acrylic (optional: tempered glass)
Barrier Movement	Retracting
Emergency Mode	Supports
Security Level	Medium
MCBF	2 million
Warranty	1 year

Feature	Specification
Power Requirements	AC 100 to 120V/200 to 240V, 50/60Hz
Working Temperature	-28°C to 60°C
Working Humidity	5% to 80%
Working Environment	Indoor/outdoor (if sheltered)
Speed of Throughput	RFID: Maximum 30/minute Fingerprint: Maximum 25/minute
Lane Width (mm)	600
Footprint (mm*mm)	1200*870
Dimension (LWH)	8703001000 (mm)
Dimension with Packing (LWH)	8703001000 (mm)
Net Weight (kg)	97
Weight with Packing (kg)	144
LED Indicator	Supports
Cabinet Material	SUS304 Stainless Steel
Lid Material	SUS304 Stainless Steel
Barrier Material	Acrylic (optional: tempered glass)
Barrier Movement	Retracting
Emergency Mode	Supports
Security Level	Medium
MCBF	2 million
Warranty	1 year

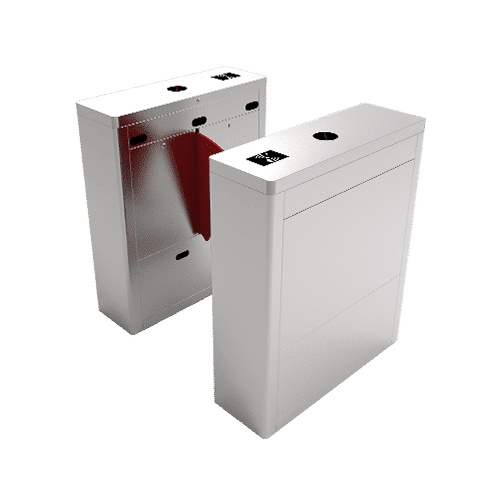

ZKTeco FBL1000 Pro: Single Lane Flap Barrier Turnstile
