A high-performance full-color series camera that delivers high-quality color images with rich details even in total darkness. It features a built-in P2P cloud function for flexible remote viewing.

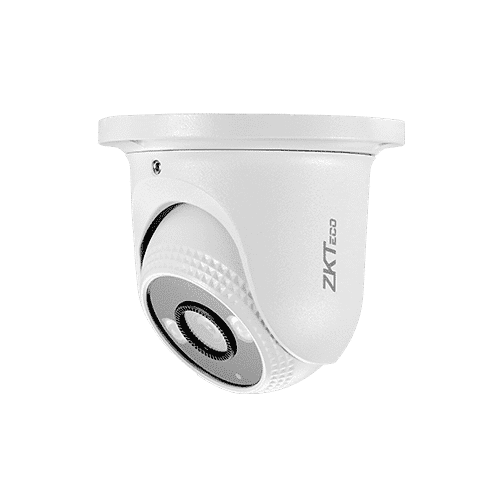

The ZKTeco ES-855P11C-S7-C is part of the full-color series camera, powered by a cutting-edge F1.0 large aperture lens and warm white LED illuminators. This model promises to deliver accurate identification round-the-clock.
One of the standout features of this model is the built-in P2P cloud function. This allows for more convenient and flexible remote real-time viewing and monitoring. The camera also utilizes H.265 and H.264 compression, an evolutionary optimization of H.265 and the traditional H.264. It includes a series of encoding strategies such as dynamic ROI, smart 2D&3D noise reduction for delivering high-quality videos while greatly saving up to 70% bandwidth and storage.
With precise mechanical design and rugged metal casing rated IP67, this camera can withstand water and dust for a long time. It can work safely under extreme or unstable power conditions and adapt to a variety of harsh outdoor environments with a working temperature range from -30°C ~ 60°C.
Key Features:
| Feature | Description |
|---|---|
| Model | ES-855P11C-S7-C |
| Image Sensor | 1/2.7” CMOS |
| Effective Pixels | 2592x1944 |
| Min. Illumination | Colour: 0.0001Lux@F1.0 (AGC ON) |
| Flash / DDR | 128Mb / 512Mb |
| IR LED No. | 2 |
| IR Distance | 20m |
| S/N Ratio | > 52dB |
| LENS | |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8mm |
| Aperture | F1.0 |
| FOV | 115° |
| Optical Zoom | N/A |
| Compression | H.265 / H.264 |
| Resolution | 5MP (2592 x 1944), 4MP (2688 x 1520), 3MP (2304 x 1296), 1080P (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720) |
| Bitrate Control | CBR / VBR |
| Bitrate | H.265: 4Mbps - 16Mbps, H.264: 5Mbps - 20Mbps |
| Multi-Streaming | Main Stream: 5MP@25fps / 4MP@25fps / 3MP@25fps / 1080P@25fps / 960P@25fps / 720P@25fps |
| Sub Stream | D1@25fps / VGA@25fps / CIF@25fps |
| Third Stream | N/A |
| Motion Detection | Support |
| Digital Zoom | Support |
| Audio Compression | G7.11u |
| Privacy Mask | 5 areas |
| WDR | 120 db true WDR |
| Day / Night | Support |
| White Balance | Support |
| Defog | N/A |
| Noise Reduction | 2D/3D DNR |
| Mirror / Flip | Support |
| Corridor Mode | Support |
| HLC | Support |
| BLC | Support |
| ROI | 4 areas |
| Anti-flicker | Support |
| IVA | Intelligent Video |
| Face Detection | Support |
| NETWORK | |
| Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP, RTMP |
| Interoperability | ONVIF Profile S, SDK, API |
| Max. Online Users | 3 |
| Web Browser | IE / Firefox / Chrome / Safari |
| Management Software (VMS) | AntarVis 2.0, ZKBioSecurity IVS, ZKBio Access IVS |
| Operation System | Windows |
| Mobile Application | AntarView Pro |
| P2P Cloud Service | Support |
| INTERFACE | |
| Ethernet | 1 RJ-45 port (10/100Mbps) |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| RS485 | N/A |
| Reset Button | N/A |
| Micro-SD Slot | N/A |
| ANR | N/A |
| USB | N/A |
| GENERAL | |
| Power Supply | PoE(IEEE802.3af), DC 12V±10% |
| Power Consumption | < 3W |
| Ingress Protection | IP67 |
| Dimensions | Φ107 x 107 (mm) |
| Working Temperature | -30°C to 60°C |
| Working Humidity | 10% to 90% |
| Net Weight | 0.30kg |
| Gross Weight | 0.45kg |
| ORDERING INFORMATION | |
| Camera | 5MP Camera |
| Model | ES-855P11C-S7-C |
| Description | 5MP Full Colour Face Detection Eyeball IP Camera |
