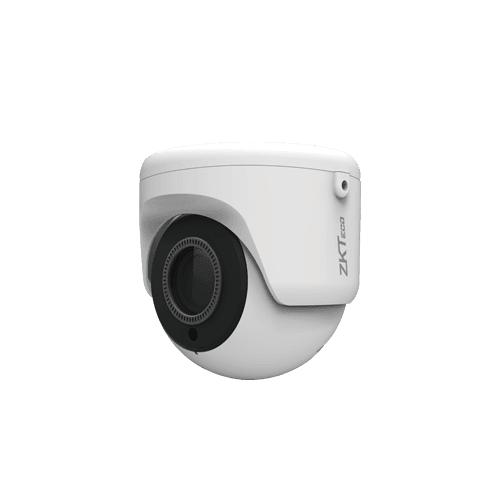

ZKTeco EL-854N38I-E3: 4MP Face Detection Dome Camera
ZKTeco EL-854N38I-E3
A cost-efficient solution offering clear video monitoring with face detection and intelligent video analytics. It features a built-in P2P cloud function for flexible remote viewing.
Product Details
The ZKTeco EL-854N38I-E3 is part of the BioPro Series, a 4MP IP camera that provides a cost-efficient solution powered by cutting-edge technology for crystal-clear video monitoring. This model comes with an embedded face detection algorithm and supports multiple industry-leading Intelligent video analytic functions, such as Face Detection, Line Crossing, Intrusion, Object Left/Lost, and Counting for smart event alarms.
One of the standout features of this model is the built-in P2P cloud function. This allows for more convenient and flexible remote real-time viewing and monitoring. The camera also utilizes H.265+ technology, an evolutionary optimization of H.265 and the traditional H.264. It includes a series of encoding strategies such as dynamic ROI, smart 2D&3D noise reduction for delivering high-quality videos while greatly saving up to 70% bandwidth and storage.
With precise mechanical design and rugged metal casing rated IP67, this camera can withstand water and dust for a long time. It can work safely under extreme or unstable power conditions and adapt to a variety of harsh outdoor environments with a working temperature range from -30°C ~ 60°C.
- Super cost-efficient solution powered by cutting-edge technology
- Crystal clear video monitoring
- Embedded face detection algorithm
- Supports multiple industry-leading Intelligent video analytic functions
- Built-in P2P cloud function for flexible remote viewing
- H.265+ technology for high-quality videos
- Precise mechanical design with IP67 rated protection
Specifications
| Feature | Description |
|---|---|
| Model | EL-854N38I-E3 |
| Image Sensor | 1/2.8” Sony STARVIS CMOS |
| Effective Pixels | 2592 * 1520 |
| Flash / DDR | 128Mb / 1Gb |
| IR LED No. | 2 |
| IR Distance | 50m |
| S/N Ratio | > 52dB |
| Lens | Lens Type |
| Motorized | Mount Type |
| Board-in | Focal Length |
| 3.6mm - 10.8mm | Aperture |
| F1.7 ~ F3.3 | FOV |
| 29.8° ~ 93.5° | Optical Zoom |
| 3X | Compression |
| H.265+/ H.265/ H.264 | Resolution |
| 4MP (2592 x 1520) / 3MP (2304 x 1296) / 1080P (1920 x 1080) / 1.3MP (1280 x 960) / 720P (1280 x 720) | Bitrate Control |
| CBR / VBR | Bitrate |
| 1024Kbps ~ 4Mbps | Multi-Streaming |
| Main Stream | 4MP@25fps / 3MP@25fps / 1080P@25fps / 960P@25fps / 720P@25fps |
| Sub Stream | D1@25fps / VGA@25fps / CIF@25fps |
| Third Stream | N/A |
| Motion Detection | Support |
| Digital Zoom | Support |
| Audio Compression | G7.11u |
| Privacy Mask | 5 areas |
| WDR | TWDR |
| Day / Night | Support |
| White Balance | Support |
| Corridor Mode | Support |
| Defog | N/A |
| Noise Reduction | 2D/3D DNR |
| HLC | Support |
| Mirror / Flip | Support |
| BLC | Support |
| ROI | 4 areas |
| Anti-flicker | Support |
| IVA | Intelligent Video |
| Face Detection / Line Crossing / Area Detection / Target Count / Object Left / Lost / VQD / Video Tampering | Facial Detection |
| Face Templates | N/A |
| Face Detected Per Frame | 30 |
| Detected Face Size | 80 x 80 ~ 300 x 300 Pixels |
| Face Quality Filtering | Support |
| Detection Area | User-defined |
| Capture Response | ≤1s |
| Network | Protocol |
| TCP/IP/ UDP/ HTTP/ DHCP/ RTSP/ NTP | Interoperability |
| ONVIF Profile S/ SDK/ API | Max. Online Users |
| 3 | Web Browser |
| IE / Firefox / Chrome / Safari | Management Software (VMS) |
| AntarVis 2.0 | |
| ZKBioSecurity IVS | ZKBio Access IVS |
| Operation System | Windows |
| Mobile APP | AntarView Pro |
| P2P Cloud Service | Support |
| Interface | Note |
| Video streaming is not available for Firefox / Chrome / Safari | Ethernet |
| 1 RJ-45 port (10/100Mbps) | Audio I/O |
| 1/0 | Alarm I/O |
| N/A | RS485 |
| N/A | Reset Button |
| N/A | Micro-SD Slot |
| N/A | ANR |
| N/A | USB |
| N/A | General |
| Power Supply | PoE (IEEE802.3af )/ DC 12V±10% |
| Power Consumption | < 3W |
| Ingress Protection | IP67 |
| Dimensions (L*W*H) | Φ111.6 * 105 (mm) |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 10% ~ 90% |
| Net Weight | 0.40kg |
| Gross Weight | 0.64kg |
| Ordering Information | Camera |
| 4MP Camera | Model |
| EL-854N38I-E3 | Description |
| 4MP Motorized Lens Face Detection | Eyeball IP Camera |
