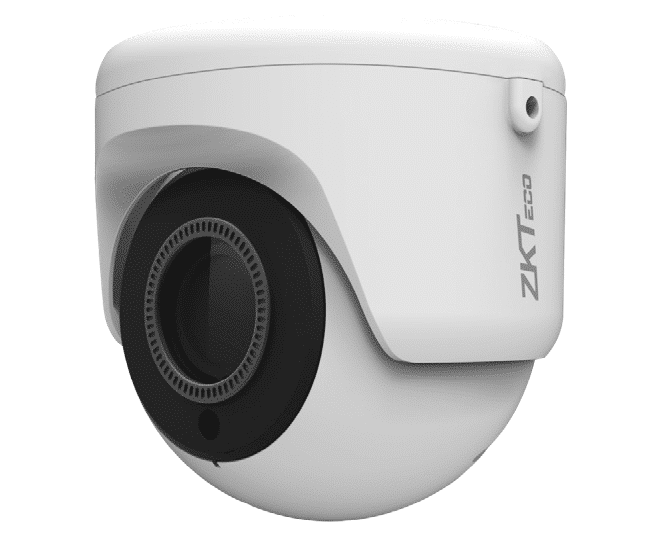

ZKTeco EL-852T38I-S6: Pro Series 2MP Motorized Lens Face Recognition Eyeball IP Camera

Description

ZKTeco EL-852T38I-S6: High-Performance 2MP Eyeball IP Camera for Intelligent Surveillance

The ZKTeco EL-852T38I-S6 is a high-performance 2-megapixel eyeball IP camera designed for reliable video surveillance in various security applications. Featuring a 1/2.8” Sony STARVIS CMOS sensor, it delivers clear, high-resolution images at up to 1920 × 1080 pixels, making it suitable for both day and night monitoring. The EL-852T38I-S6 comes with an embedded face recognition algorithm, allowing the camera to effectively identify and analyze human faces, providing enhanced security and monitoring capabilities.

This IP camera also supports multiple intelligent video analytic functions, including line crossing detection, intrusion detection, object left/lost, and counting, allowing users to receive alerts for specific security events. Equipped with a motorized varifocal lens and four smart IR LEDs, it offers flexible monitoring and an effective range of up to 50 meters, ensuring visibility in low-light or nighttime conditions. The camera’s IP67-rated casing ensures reliable operation in various environmental conditions, making it suitable for outdoor installations.

Key Features

• High-Resolution Imaging – 2MP Sony STARVIS CMOS sensor delivers clear and detailed video at resolutions up to 1920 × 1080 pixels.
• Face Recognition – Built-in face recognition algorithm for identifying and analyzing individuals, with support for white/black list event alarms.
• Intelligent Video Analytics – Supports multiple intelligent video analytic functions, including line crossing detection, intrusion detection, and object left/lost detection.
• Infrared Illumination – Equipped with four IR LEDs with an effective range of up to 50 meters, ensuring visibility in low-light or nighttime conditions.
• Motorized Varifocal Lens – Motorized lens with a focal length range of 3.35mm to 10.05mm, offering 3x optical zoom and flexible field-of-view adjustments.
• Power over Ethernet (PoE) – Supports PoE for simplified installation by allowing power and data transmission over a single Ethernet cable.
• Durable Design – IP67-rated metal casing provides robust protection against dust and water ingress, making it suitable for outdoor environments.

Technical Specifications

• Image Sensor: 1/2.8” Sony STARVIS CMOS
• Effective Pixels: 1920 × 1080
• Lens Type: Motorized Varifocal
• Focal Length: 3.35mm to 10.05mm
• Aperture: F1.7 to F3.0
• Field of View (FOV): 38° to 107°
• Optical Zoom: 3x
• Video Compression: H.265 / H.264
• Resolution Options: 1080P (1920 × 1080), 1.3MP (1280 × 960), 720P (1280 × 720)
• IR Distance: Up to 50 meters
• Ingress Protection: IP67
• Power Supply: PoE (IEEE802.3af), DC 12V±10%
• Operating Temperature: -30°C to 60°C
• Dimensions: Φ111.6 × 105 mm
• Weight: Net: 0.50 kg; Gross: 0.70 kg

Applications

The ZKTeco EL-852T38I-S6 is an ideal solution for various surveillance applications, offering intelligent video analytics and reliable face recognition for enhanced security. It is particularly well-suited for monitoring building perimeters, parking lots, and other areas where high-quality, real-time video analytics are essential for proactive security management.

Why Choose ZKTeco EL-852T38I-S6?

• Advanced Face Recognition – Built-in face recognition helps identify and analyze individuals, adding an extra layer of security.
• Intelligent Video Analytics – Intelligent functions such as line crossing and intrusion detection provide smart event alarms and enhance monitoring capabilities.
• Rugged Outdoor Design – IP67-rated casing ensures reliable operation in various environmental conditions, offering long-term durability and consistent performance.
