ZKTeco EC10 & EX16: Scalable Elevator Control Panels

ZKTeco EC10 & EX16: Advanced Elevator Access Control

The ZKTeco EC10 & EX16 provide a reliable and scalable solution for **elevator access control**, designed to enhance security in multi-story buildings. The EC10 panel manages up to 10 floors, while the EX16 extension board adds control for 16 additional floors per unit. Together, they offer seamless floor management with flexible user authentication options and robust time-based scheduling.

Whether it’s a commercial property or a residential complex, this system allows property managers to implement precise and secure floor access policies with ease.

Key Features

• Comprehensive Floor Access Control: EC10 manages 10 floors, and each EX16 adds 16 more, supporting up to 58 floors.
• Flexible Authentication: Supports fingerprint, RFID, and PIN for enhanced security.
• Time-Based Scheduling: Configure access based on specific time slots for improved security and efficiency.
• Passage Mode: Allows unrestricted access during designated hours for operational flexibility.
• Scalable Integration: Daisy-chain EX16 boards to expand floor control as needed.

Specifications

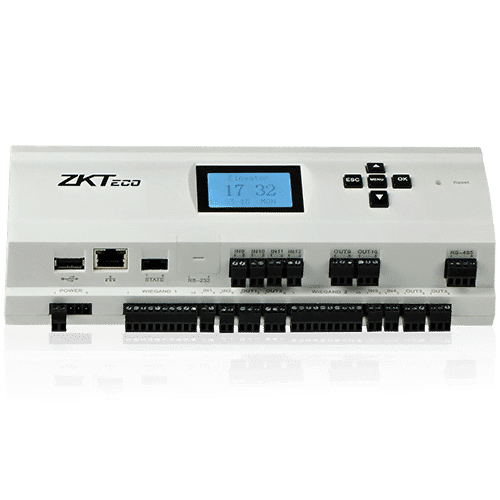

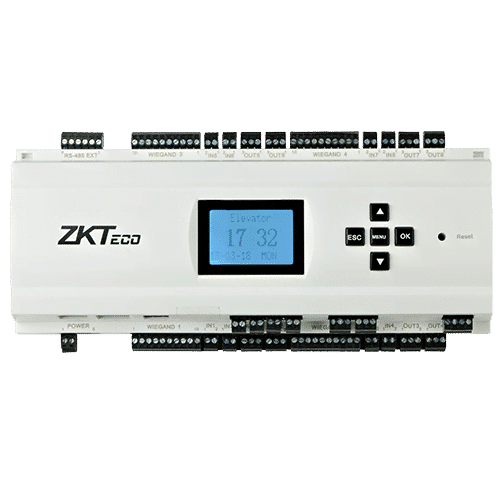

• EC10 Elevator Control Panel:
  • Manages up to 10 floors.
  • Supports 30,000 cards and 3,000 fingerprints.
  • Communication: TCP/IP, RS485.
  • Event Capacity: 100,000 logs.
  • Power Supply: 12V DC, 1A.
  • Dimensions: 242mm × 95mm × 60mm.

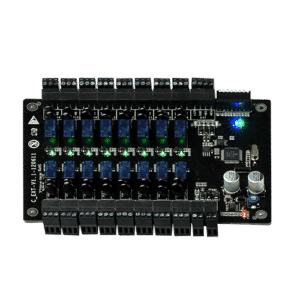

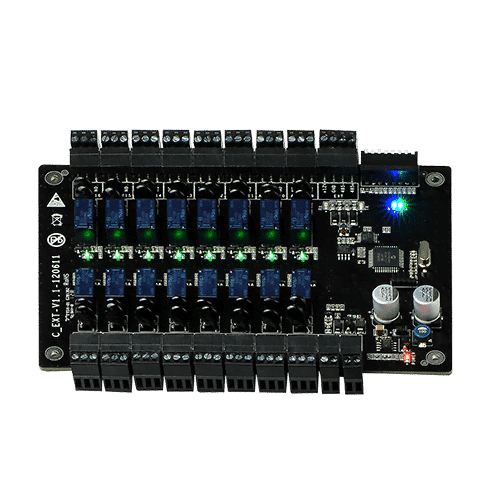

• EX16 Extension Board:
  • Adds 16 additional floors per board.
  • Up to 3 EX16 boards supported per EC10 panel.
  • Communication: RS485.
  • Power Supply: 12V DC, 1A.
  • Dimensions: 160mm × 106mm.

Applications

The ZKTeco EC10 & EX16 are ideal for managing elevator access in various settings, including:

• Commercial buildings requiring secure floor access for employees and tenants.
• Residential complexes with controlled access to specific floors.
• Hotels offering restricted floor access to guests and staff.
