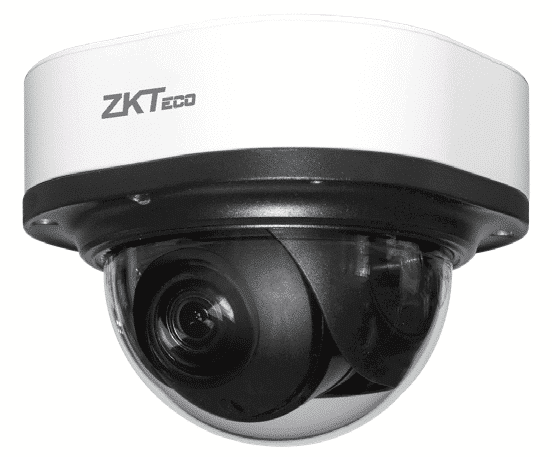

ZKTeco DL-852T28B-S6 | Pro Series 2MP Motorized Lens Face Recognition Dome IP Camera
ZKTeco DL-852T28B-S6
A cost-efficient solution offering clear video monitoring with face detection and intelligent video analytics. It features a built-in P2P cloud function for flexible remote viewing.
Product Details
The ZKTeco DL-852T28B-S6 is part of the Pro Series, a 2MP starlight IP camera powered by Sony STARVIS sensor providing excellent night vision. This model comes with an embedded face detection algorithm and supports multiple industry-leading Intelligent video analytic functions, such as Face Detection, Line Crossing, Intrusion, Object Left/Lost, and Counting for smart event alarms.
One of the standout features of this model is the built-in P2P cloud function. This allows for more convenient and flexible remote real-time viewing and monitoring. The camera also utilizes H.265 technology, an evolutionary optimization of the traditional H.264. It includes a series of encoding strategies such as dynamic ROI, smart 2D&3D noise reduction for delivering high-quality videos while greatly saving up to 70% bandwidth and storage.
With precise mechanical design and rugged metal casing rated IP67, this camera can withstand water and dust for a long time. It can work safely under extreme or unstable power conditions and adapt to a variety of harsh outdoor environments with a working temperature range from -20°C to 55°C.
- Super cost-efficient solution powered by cutting-edge technology
- Crystal clear video monitoring
- Embedded face detection algorithm
- Supports multiple industry-leading Intelligent video analytic functions
- Built-in P2P cloud function for flexible remote viewing
- H.265 technology for high-quality videos
- Precise mechanical design with IP67 rated protection
Specifications
| Feature | Description |
|---|---|
| Model | DL-852T28B-S6 |
| Image Sensor | 1/2.8” 2MP Sony STARVIS CMOS |
| Effective Pixels | 1920 x 1080 |
| Flash / DDR | 1Gb / 2Gb |
| IR LED No. | 4 (Smart IR) |
| IR Distance | 30m |
| S/N Ratio | > 52dB |
| Lens Type | Motorised |
| Mount Type | Board-in |
| Focal Length | 3.35mm ~ 10.05mm |
| Aperture | F1.7 ~ 3.0 |
| FOV | 38° ~ 107° |
| Optical Zoom | 3X |
| Compression | H.265 / H.264 |
| Resolution | 1080P (1920 x 1080) / 1.3MP (1280 x 960) / 720P (1280 x 720) |
| Bitrate Control | CBR / VBR |
| Bitrate | 1024Kbps ~ 4Mbps |
| Main Stream | 1080P@25fps / 960P@25fps / 720P@25fps |
| Sub Stream | D1(704 x 576)@25fps / VGA@25fps / Q720P@25fps |
| Third Stream | 1080P@25fps |
| Motion Detection | Supported |
| Digital Zoom | Supported |
| Audio Compression | G7.11u |
| Privacy Mask | 4 areas |
| WDR | TWDR |
| Day / Night | Supported |
| White Balance | Supported |
| Corridor Mode | Supported |
| Defog | Not Available |
| Noise Reduction | 2D/3D DNR |
| HLC | Supported |
| Mirror / Flip | Supported |
| BLC | Supported |
| ROI | 4 areas |
| Anti-flicker | Not Available |
| IVA | Intelligent Video - Face Recognition |
| Face Templates | 2000 |
| Face Detected Per Frame | 30 |
| Detected Face Size | 80x80 ~ 300x300 Pixels |
| Face Quality Filtering | Supported |
| Detection Area | User-defined |
| Capture Response | ≤200ms |
| Network Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP, FTP |
| Interoperability | ONVIF Profile S, SDK, API |
| Max. Online Users | 3 |
| Web Browser | IE / Firefox / Chrome / Safari |
| Management Software (VMS) | AntarVis 2.0, ZKBioSecurity IVS, ZKBio Access IVS |
| Operating System | Windows |
| Mobile APP | AntarView Pro |
| P2P Cloud Service | Supported |
| Ethernet | 1 RJ-45 port (10/100Mbps) |
| Audio I/O | 1-Jan |
| Alarm I/O | 2-Jan |
| RS485 | Supported |
| Reset Button | Supported |
| Micro-SD Slot | Supported (up to 256GB) |
| ANR | Not Available |
| USB | Not Available |
| Power Supply | PoE (IEEE802.3af), DC 12V±10% |
| Power Consumption | < 3W |
| Ingress Protection | IP67, IK10 |
| Dimensions | Φ102 x 93.3 mm |
| Working Temperature | -20°C to 55°C |
| Working Humidity | 0% to 90% |
| Net Weight | 0.50kg |
| Gross Weight | 0.70kg |
| Camera | 2MP Camera |
| Description | 2MP Motorised Lens, Face Recognition Dome IP Camera |
