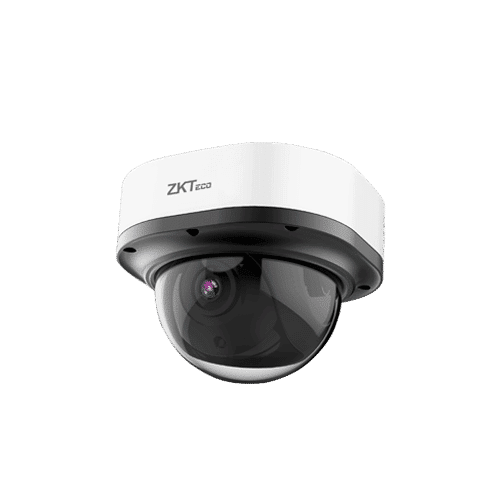

ZKTeco DL-852Q28B-LP: ZK-LPR Car ID License Plate Recognition Camera
ZKTeco DL-852Q28B-LP
A high-performance camera with embedded License Plate Recognition application. It features a built-in P2P cloud function for flexible remote viewing.
Product Details
The ZKTeco DL-852Q28B-LP, also known as ZK-LPR Car ID, is a high-performance camera with an embedded License Plate Recognition application. The license plate recognition algorithm is executed inside the camera, avoiding the use of computers in access control, tolling, and weighing scenarios[^1^][1]. The License Plate Recognition engine can identify license plates from over 80 countries around the world[^1^][1].
ZK-LPR Car ID is the next step in ZKTeco’s access control system technology for efficient and simple vehicle access management. It delivers faster & easier set-up and allows customers to achieve high performance with lower installation, maintenance, and off-site programming costs[^1^][1].
With precise mechanical design and rugged metal casing rated IP67, this camera can withstand water and dust for a long time. It can work safely under extreme or unstable power conditions and adapt to a variety of harsh outdoor environments with a working temperature range from -30°C to 60°C[^1^][1].
- High-performance camera with embedded License Plate Recognition application
- Built-in P2P cloud function for flexible remote viewing
- License Plate Recognition engine can identify license plates from over 80 countries
- Efficient and simple vehicle access management
- Precise mechanical design with IP67 rated protection
Specifications
Feature | Description |
---|---|
Model | DL-852Q28B-LP |
Image Sensor | 1/2.8” Sony STAVIS CMOS |
Effective Pixels | 1920 * 1080 |
Min. Illumination | Colour: 0.001Lux@F1.7 (AGC ON) |
Flash | 512 Mb |
IR LED No. | 2 (Smart IR) |
IR Distance | 50m |
S/N Ratio | > 52dB |
Lens Type | Motorised |
Mount Type | Board-in |
Focal Length | 3.35mm ~ 10.05mm |
Aperture | F1.7 ~ F3.0 |
FOV | 38° ~ 107° |
Optical Zoom | 3X |
Compression | H.265+ / H.265 / H.264 |
Resolution | 1080P (1920 * 1080) / 1.3MP (1280 * 960) / 720P (1280 * 720) Q720P (640 * 360) / CIF (352 * 288) |
Bitrate Control | CBR / VBR |
Bitrate | H.265+: 1536Kbps - 7Mbps; H.265: 1536Kbps - 7Mbps; H.264: 1792Kbps - 9Mbps |
Main Stream | 1080P@25fps |
Sub Stream | Q720P@25fps |
Third Stream | N/A |
Motion Detection | Support |
Digital Zoom | Support |
Audio Compression | G7.11u |
Privacy Mask | 5 areas |
WDR | TWDR |
Day / Night | Support |
White Balance | Support |
Defog | Support |
Noise Reduction | 3D DNR |
Mirror / Flip | Support |
Corridor Mode | Support |
HLC | Support |
BLC | N/A |
ROI | 4 areas |
Anti-flicker | Support |
IVA | Intelligent Video |
Face Recognition / Line Crossing / Intrusion / Object Left / Lost / Counting / Video Shelter / Scene Change / Audio Detection / Fire Detection/ VQD | Face Recognition / Line Crossing / Intrusion / Object Left / Lost / Counting / Video Shelter / Scene Change / Audio Detection / Fire Detection/ VQD |
Network Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP |
Interoperability | ONVIF, SDK, API |
Max. Online Users | 5 |
Web Browser | IE / Firefox / Chrome / Safari |
Management Software (VMS) | AntarVis 2.0 |
Operation System | Windows |
Mobile Application | Antar View Pro |
P2P Cloud Service | Support |
Ethernet | 1 RJ-45 port (10/100Mbps) |
Audio I/O | 1 in / 1 out |
Alarm I/O | 2 in / 1 out |
RS485 | Support |
Reset Button | Support |
Micro-SD Slot | 64GB MicroSD card included |
ANR | Support |
USB | N/A |
Power Supply | PoE (IEEE802.3af ), DC 12V±10% |
Power Consumption | < 3W |
Ingress Protection | IP 67 |
Dimensions | 247(L) * 85(W) * 76(H)mm |
Working Humidity | 10% ~ 90% |
Working Temperature | -30°C ~ +60 °C |
Net Weight | 0.50 kg |
Gross Weight | 0.64 kg |
