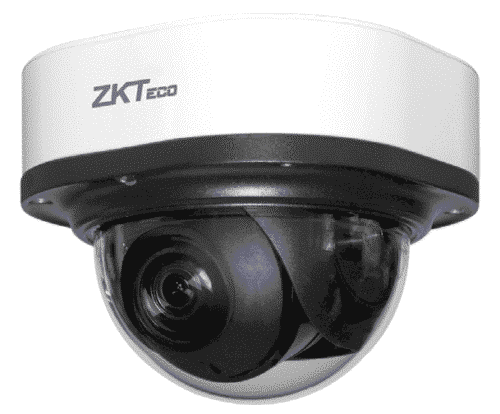

The ZKTeco DL-852O28B-S5 is part of the Lite Series, powered by a 1/2.9” 2MP CMOS sensor and H.265 dual stream encoding. This model promises to deliver accurate identification round-the-clock with an IR effective range of 30m.
One of the standout features of this model is the built-in P2P cloud function. This allows for more convenient and flexible remote real-time viewing and monitoring. The camera also utilizes H.265 dual stream encoding, an evolutionary optimization of H.265 and the traditional H.264. It includes a series of encoding strategies such as dynamic ROI, smart 2D&3D noise reduction for delivering high-quality videos while greatly saving up to 70% bandwidth and storage.
With precise mechanical design and rugged metal casing rated IP67, this camera can withstand water and dust for a long time. It can work safely under extreme or unstable power conditions and adapt to a variety of harsh outdoor environments with a working temperature range from -30°C ~ 60°C.
Key Features:
Feature | Description |
---|---|
Model | DL-852O28B-S5 |
Image Sensor | 1/2.9” CMOS |
Effective Pixels | 1920x1080 |
Flash / DDR | 128Mb / 512Mb |
IR LED No. | 4 |
IR Distance | 30m |
Min. Illumination | Colour: 0.5Lux@F1.7~3.0(AGC ON), B/W: 0.001Lux@F1.7~3.0(IR ON) |
S/N Ratio | < 50dB |
LENS | |
Lens Type | Motorised |
Mount Type | Board-in |
Focal Length | 3.35mm ~ 10.05mm |
Aperture | F1.7 ~ F3.0 |
FOV | 38° ~ 101° |
Optical Zoom | 3X |
VIDEO | |
Compression | H.265 / H.264 |
Resolution | 1080P (1920 × 1080), 1.3M (1280 × 960), 720P (1280 × 720) |
Bitrate Control | CBR / VBR |
Bitrate | H.265: 16Kbps - 4Mbps, H.264: 16Kbps - 4Mbps |
Multi-Streaming | Main Stream: 1080P@25fps / 960P@25fps / 720P@25fps |
Sub Stream | D1@25fps / VGA@25fps / CIF@25fps |
Third Stream | N/A |
Motion Detection | Support |
Digital Zoom | Support |
Audio Compression | G7.11u |
Privacy Mask | 4 areas |
WDR | DWDR |
Day / Night | Support |
White Balance | Support |
Corridor Mode | Support |
Defog | N/A |
Noise Reduction | 2D / 3D DNR |
HLC | N/A |
Mirror / Flip | Support |
BLC | Support |
ROI | 4 areas |
Anti-flicker | Support |
IVA | Intelligent Video |
Face Detection | Facial Detection |
FACIAL DETECTION | |
Face Templates | N/A |
Face Detected Per Frame | 6 |
Detected Face Size | 80 x 80 ~ 300 x 300 Pixels |
Face Quality Filtering | Support |
Detection Area | User-defined |
Capture Response | ≤200ms |
NETWORK | |
Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, NTP, RTMP |
Interoperability | ONVIF Profile S, SDK, API |
Max. Online Users | 3 |
Web Browser | IE / Firefox / Chrome / Safari |
Management Software (VMS) | AntarVis 2.0, ZKBioSecurity IVS, ZKBio Access IVS |
Operation System | Windows |
Mobile APP | AntarView Pro |
P2P Cloud Service | Support |
INTERFACE | |
Ethernet | 1 RJ-45 port (10/100Mbps) |
Audio I/O | 1/0 |
Alarm I/O | N/A |
RS485 | N/A |
Reset Button | N/A |
Micro-SD Slot | N/A |
ANR | N/A |
USB | N/A |
GENERAL | |
Power Supply | PoE (IEEE802.3af), DC 12V±10% |
Power Consumption | < 3W |
Ingress Protection | IP67 |
Dimensions (L*W*H) | Φ102 x 93.3 (mm) |
Working Temperature | -30°C ~ 60°C |
Working Humidity | 10% ~ 90% |
Net Weight | 0.50kg |
Gross Weight | 0.70kg |
ORDERING INFORMATION | |
Camera | 2MP Camera |
Model | DL-852O28B-S5 |
Description | 2MP Motorised Lens Face Detection Dome IP Camera |
