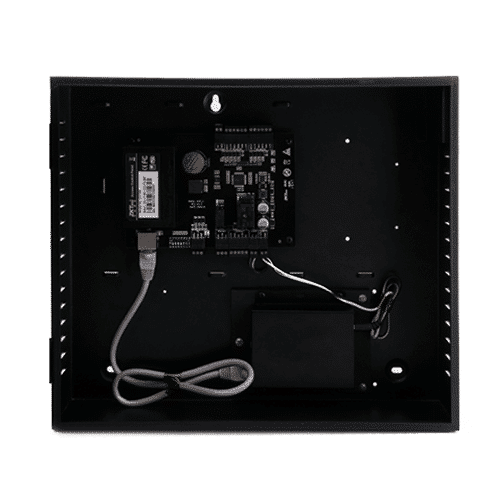

The ZKTeco C3-100 PoE is a **one-door access control panel**, offering advanced security features and seamless integration with your existing network. Powered by **PoE**, it simplifies installation and eliminates the need for separate power supplies.
With support for up to **30,000 users** and compatibility with Wiegand-output readers, the C3-100 PoE is perfect for corporate offices, schools, and healthcare facilities.
The ZKTeco C3-100 PoE is a robust **one-door access control panel**, designed for efficient and secure access management. Leveraging **Power over Ethernet (PoE)** technology, it simplifies installation by eliminating the need for separate power supplies, making it a cost-effective solution for small to medium-sized organizations.
Equipped with advanced access control features and support for a wide range of card readers, the C3-100 PoE offers the flexibility to meet diverse security requirements. Its ability to integrate seamlessly with both TCP/IP and RS-485 networks ensures reliable and adaptable connectivity.
The ZKTeco C3-100 PoE is ideal for small to medium-sized organizations needing secure access control. Common use cases include:
Combining ease of installation, advanced security features, and reliable performance, the ZKTeco C3-100 PoE is a versatile and cost-effective access control solution. Its seamless integration capabilities and robust design make it an excellent choice for modern security needs.
| Feature | Specification |
|---|---|
| User Capacity | 30000 |
| Event Buffer | 100,000 transactions |
| Communication | RS485, Ethernet |
| Nominal Voltage of C3-100 | 12v |
| Standby Current of C3-100 | 40mA |
| Operating Temp | 0°C~ 45 °C |
| Operating Humidity | 20%~ 80% |
| Number of doors controlled | One door |
| Number of readers Supported | 2 |
| Aux. Output | 1 |
| Types of readers supported | 26-bit Wiegand, others upon request |
| Number of Inputs | 2 (Exit Device and Door Status) |
| Number of Outputs | 2 (One Form C relay for lock and one Form C relay for Aux output) |
| Weight | 3.35kg |
| Dimensions (Bundle Only) | 305.2mm × 298.4mm × 89mm |
| Dimensions ( Board Only) | 160mm × 106mm |
| Specification of POE Splitter | |
| Maximum Power | 15.4W (IEEE 802.3af)；25.5W (IEEE 802.3at) |
| Input voltage | 36-57V |
| Output voltage: | 12V |
| Network standards | IEEE802.3i 10 BASE-T，IEEE802.3i 100 BASE-TX，IEEE802.3x flow control，IEEE802.3af/ IEEE802.3at |
| Working Temperature | 0°C ~ 45 °C |
| Interface protection | Meet the IEC61000-4-2 (ESD) ± 15KV (air), ± 8KV (contact) requires，Able to withstand 8/20us 24A (12A) energy |
| Input | an input RJ45 interface |
| Output | an output RJ45 connector and a DC output interface |
| Data transfer rate | 10/100/1000Mbps |
| The maximum transmission distance | 100 meters |
