ZKTeco C2-260: IP-Based Two Doors Mini Control Panel with TCP/IP and RS485 Communication

ZKTeco C2-260: Mini Control Panel for Scalable Access Control

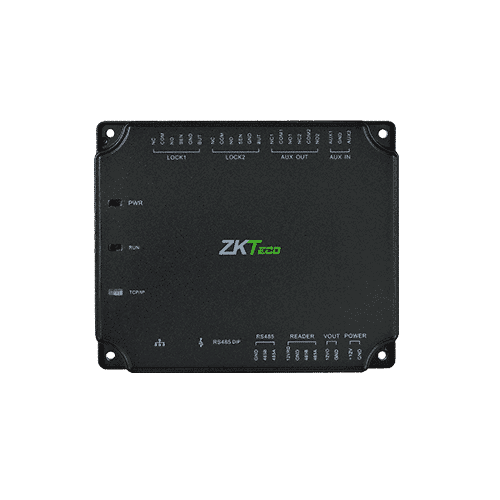

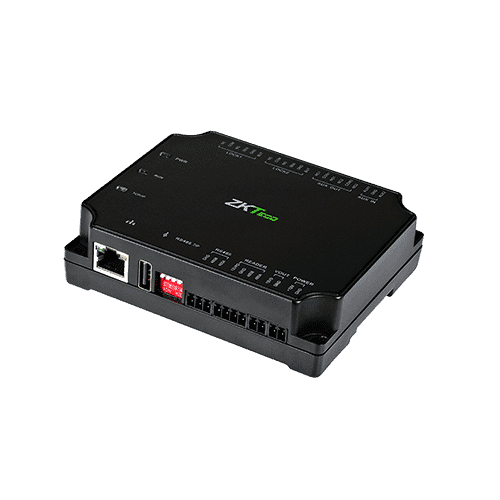

The ZKTeco C2-260 is a compact, **IP-based mini control panel** that delivers efficient and scalable access control for up to two doors. Supporting **TCP/IP communication** over LAN or WAN and **RS485 connectivity**, it seamlessly integrates with a wide range of devices and systems for enhanced security and flexibility.

Designed for scalability, the C2-260 can manage two doors out of the box and expand to control up to ten doors using optional DM10 extension boards. With features such as **auxiliary input/output expansion** and **multi-identification access methods**, it provides comprehensive and adaptable security management for modern facilities.

Key Features

• Two-Door Control: Manages two doors by default, expandable to ten doors with DM10 modules.
• Flexible Communication: TCP/IP and RS485 support for robust connectivity and integration.
• Reader Compatibility: Works with RS485 card readers and Wiegand readers through WR485 converters.
• Auxiliary Inputs/Outputs: Includes 2 auxiliary I/Os, expandable to 4 with AUX485 modules.
• Advanced Access Features: Time zones, multi-identification, anti-passback, and more for secure management.

Specifications

• Number of Doors: 2 (expandable to 10).
• Card Capacity: 30,000 cards.
• Log Capacity: Stores 200,000 transaction logs.
• Power Supply: 9.6V – 14.4V DC.
• Operating Temperature: -10°C to 50°C.
• Dimensions: 116.47 mm (L) × 96.49 mm (W) × 31.40 mm (H).

Applications

The ZKTeco C2-260 is perfect for:

• Corporate offices requiring scalable access control solutions.
• Warehouses needing flexible door control and security management.
• Educational institutions managing controlled access for students and staff.
