A high-performance camera from the Pro Series that delivers up to 8MP ultra HD videos and excellent night vision, powered by Sony STARVIS’s super high definition sensor. It features a built-in P2P cloud function for flexible remote viewing.

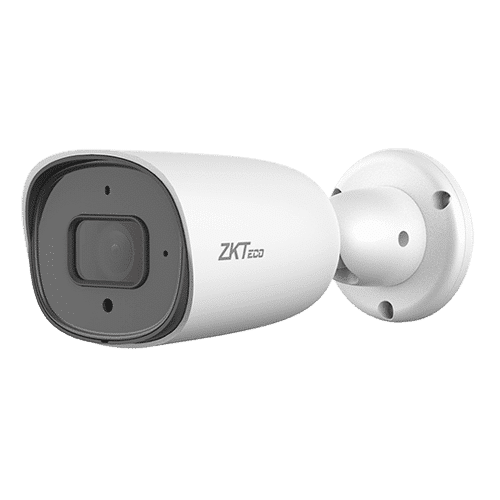

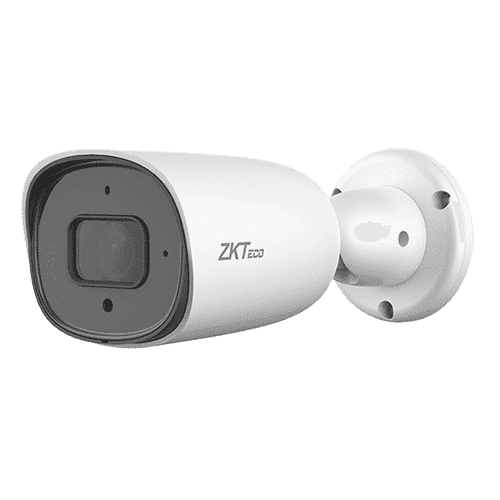

The ZKTeco BS-858M22C-S8 is part of the Pro Series, powered by a 1/2.7” 8MP Sony STARVIS CMOS sensor and H.265+ triple stream encoding. This model promises to deliver accurate identification round-the-clock with an IR effective range of 30m.
One of the standout features of this model is the built-in P2P cloud function. This allows for more convenient and flexible remote real-time viewing and monitoring. The camera also utilizes H.265+ triple stream encoding, an evolutionary optimization of H.265 and the traditional H.264. It includes a series of encoding strategies such as dynamic ROI, smart 2D&3D noise reduction for delivering high-quality videos while greatly saving up to 70% bandwidth and storage.
With precise mechanical design and rugged metal casing rated IP67, this camera can withstand water and dust for a long time. It can work safely under extreme or unstable power conditions and adapt to a variety of harsh outdoor environments with a working temperature range from -30°C ~ 60°C.
| Feature | Description |
|---|---|
| Model | BS-858M22C-S8 |
| Image Sensor | 1/2.7” Sony CMOS |
| Effective Pixels | 3840x2160 |
| Min. Illumination | Colour: 0.01Lux@F1.6 (AGC ON), B/W: 0.001Lux@F1.6 (AGC ON) |
| Flash / DDR | 1Gb / 2Gb |
| IR LED No. | 2 |
| IR Distance | 30m |
| S/N Ratio | > 52dB |
| LENS | |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 3.6mm |
| Aperture | F1.6 |
| FOV | 95° |
| Optical Zoom | N/A |
| VIDEO | |
| Compression | H.265 / H.264 |
| Resolution | 8MP (3840 x 2160), 5MP (2592 x 1944), 4MP (2560 x 1440), 1080P (1920 x 1080), D1 (720 x 576), VGA (620 x 480), CIF (352 x 288) |
| Bitrate Control | CBR / VBR |
| Bitrate | 4Mbps ~ 8Mbps |
| Multi-Streaming | Main Stream: 8MP@20fps / 5M@25fps / 4MP@25fps / 2MP@25fps; Sub Stream: D1@25fps / VGA@25fps / CIF@25fps; Third Stream: N/A |
| Motion Detection | Support |
| Digital Zoom | Support |
| Audio Compression | G7.11u |
| Privacy Mask | 4 areas |
| WDR | DWDR |
| Day / Night | Support |
| White Balance | Support |
| Corridor Mode | Support |
| Defog | N/A |
| Noise Reduction | 2D / 3D DNR |
| HLC | Support |
| Mirror / Flip | Support |
| BLC | Support |
| ROI | 4 areas |
| Anti-flicker | N/A |
| IVA | Intelligent Video |
| Face Detection | Support |
| FACIAL DETECTION | |
| Face Templates | N/A |
| Face Detected Per Frame | N/A |
| Detected Face Size | N/A |
| Face Quality Filtering | N/A |
| Detection Area | N/A |
| Capture Response | N/A |
