A high-performance full-color series camera offering clear video monitoring with face detection and intelligent video analytics. It features a built-in P2P cloud function for flexible remote viewing.

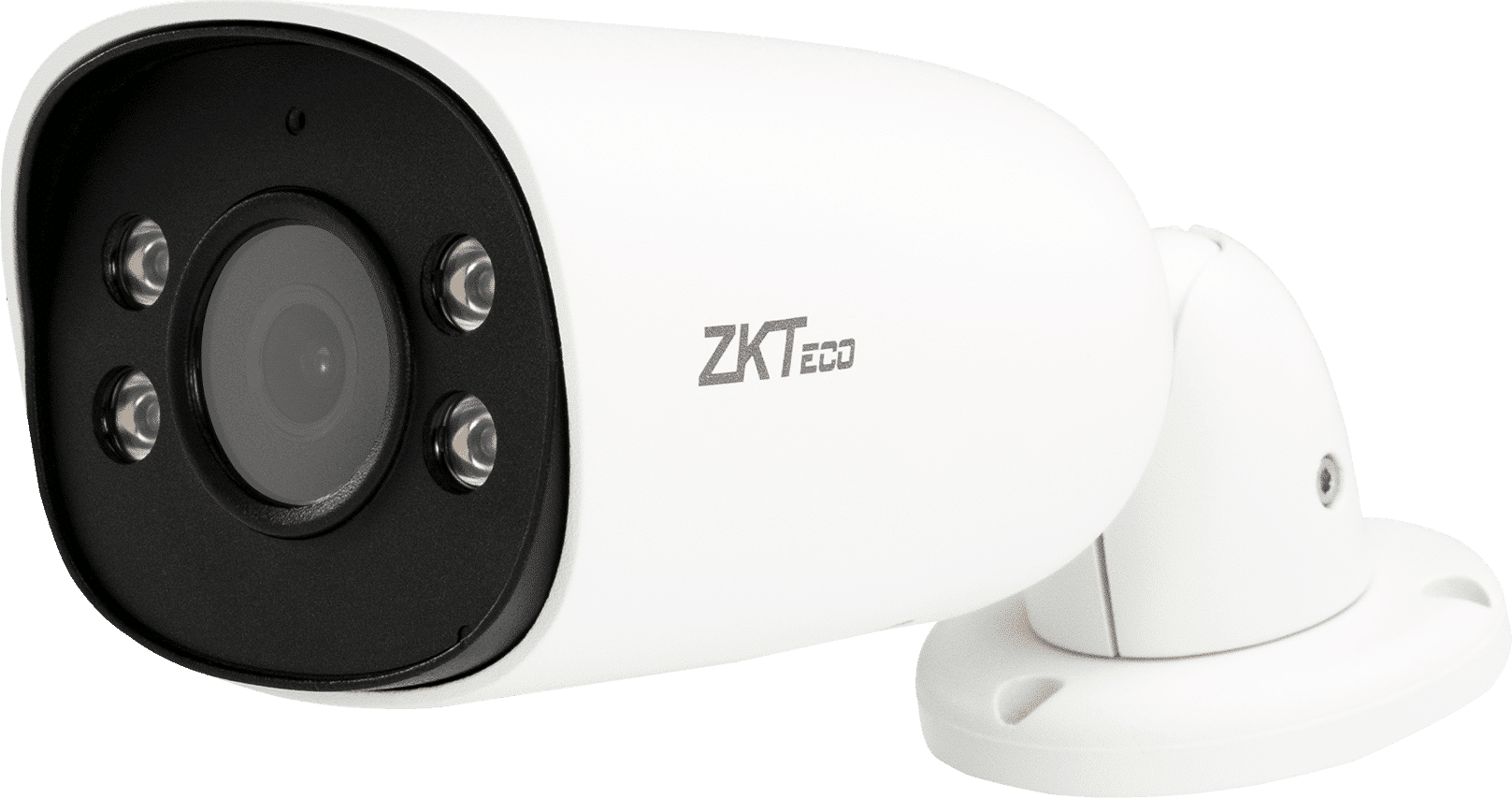

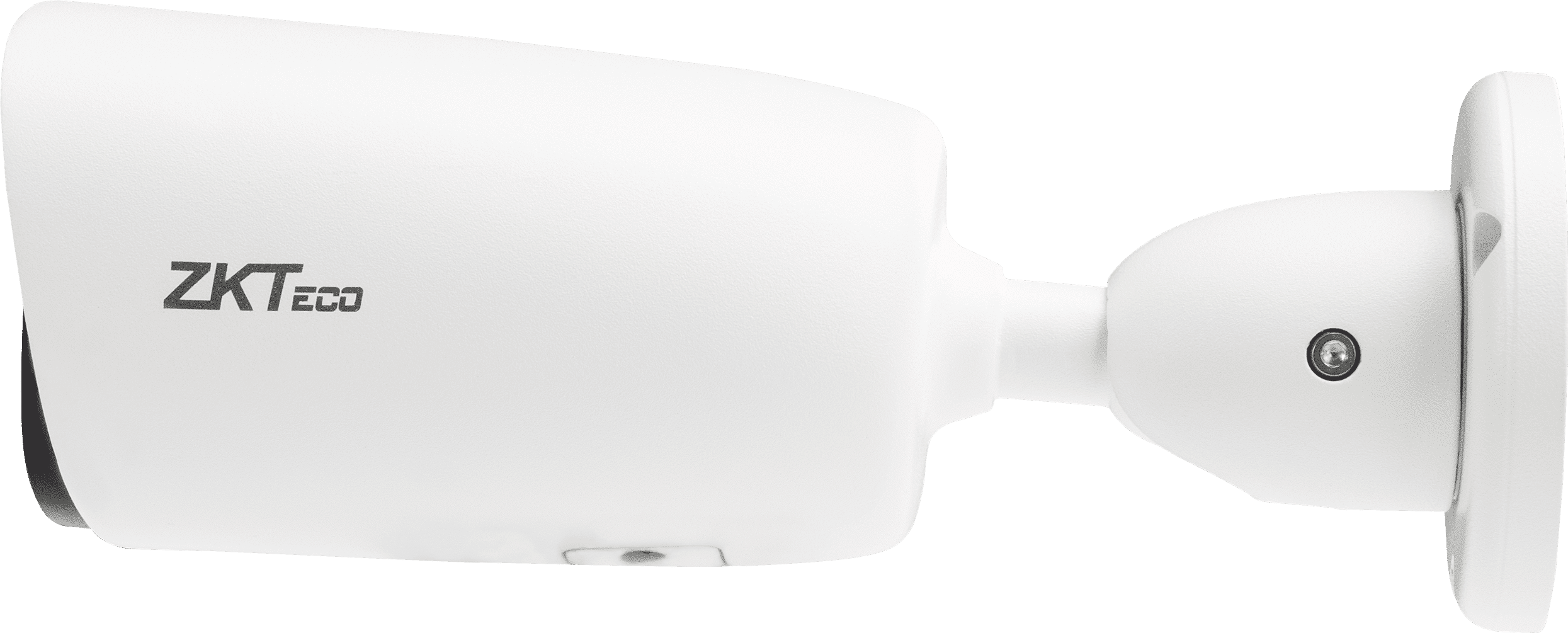

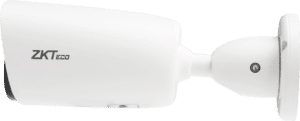

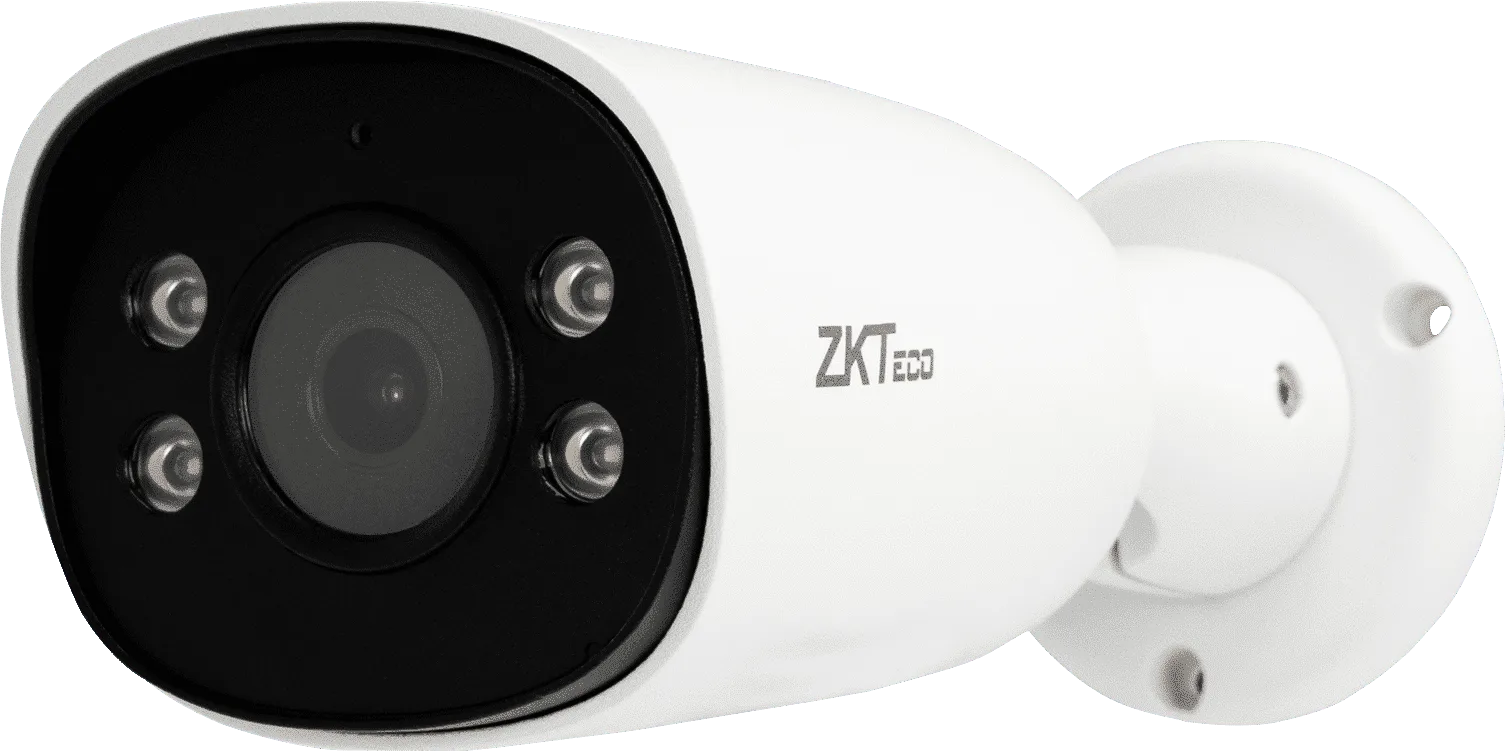

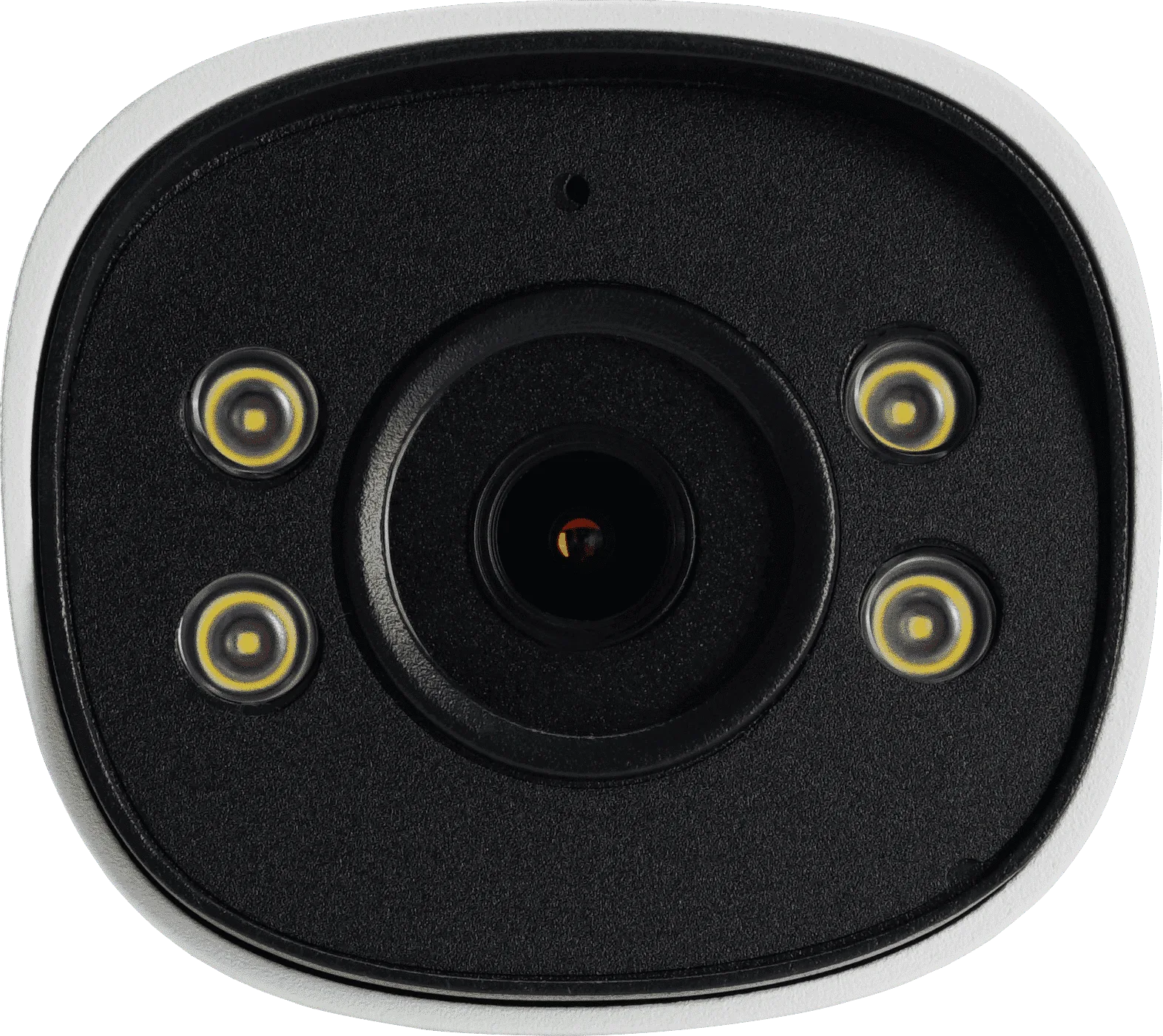

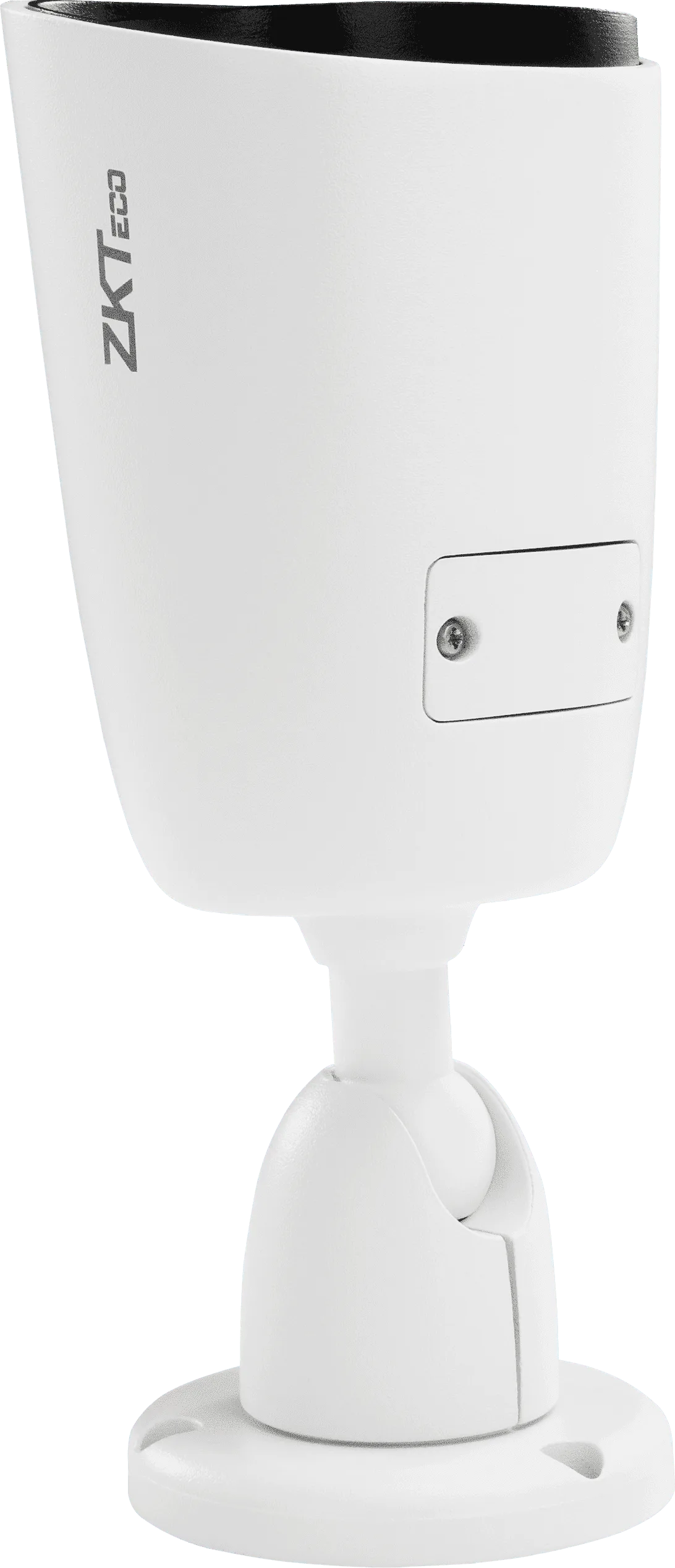

The ZKTeco BS-855P11T-S7-C-MI is part of the full-color series camera, powered by a cutting-edge F1.0 large aperture lens and warm white LED illuminators. This model comes with an embedded face detection algorithm and supports multiple industry-leading Intelligent video analytic functions, such as Face Detection, Line Crossing, Intrusion, Object Left/Lost, and Counting for smart event alarms[^1^][1].
One of the standout features of this model is the built-in P2P cloud function. This allows for more convenient and flexible remote real-time viewing and monitoring[^1^][1]. The camera also utilizes H.265+ dual-stream encoding, an evolutionary optimization of H.265 and the traditional H.264[^1^][1]. It includes a series of encoding strategies such as dynamic ROI, smart 2D&3D noise reduction for delivering high-quality videos while greatly saving up to 70% bandwidth and storage[^1^][1].
With precise mechanical design and rugged metal casing rated IP67, this camera can withstand water and dust for a long time[^1^][1]. It can work safely under extreme or unstable power conditions and adapt to a variety of harsh outdoor environments with a working temperature range from -30°C ~ 60°C[^1^][1].
| Feature | Description |
|---|---|
| Model | BS-855P11T-S7-C-MI |
| Image Sensor | 1/2.7\ CMOS" |
| Effective Pixels | 2592x1944 |
| Min. Illumination | Colour: 0.0001Lux@F1.0 (AGC ON) |
| Flash / DDR | 128Mb/1Gb |
| White Lights No. | 4 |
| White Light Distance | 20m |
| S/N Ratio | > 52dB |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8mm |
| Aperture | F1.0 |
| FOV | 110° |
| Optical Zoom | N/A |
| Compression | H.265/H.264 |
| Resolution | 5MP(2592x1944) / 4MP(2688x1520) /3MP(2304x1296) /1080P(1920x1080) /1.3MP(1280x960)/ 720P(1280x720) / 5MP(2560x1920) / 4MP(2688x1520) /3MP(2304x1296) /1080P(1920x1080) /1.3MP(1280x960)/ 720P(1280x720) |
| Bitrate Control | CBR/VBR |
| Bitrate | H.265: 4Mbps -16Mbps, H.264: 5Mbps - 20Mbps |
| Main Stream | 5MP@25fps/4MP@25fps/3MP@25fps/1080P@25fps/960P@25fps/720P@25fps |
| Sub Stream | D1@25fps/VGA@25fps/CIF@25fps |
| Third Stream | N/A |
| Motion Detection | Support |
| Digital Zoom | Support |
| Audio Compression | G7.11 u |
| Privacy Mask | 5 areas |
| WDR | 120db True WDR |
| Day / Night | Support |
| White Balance | Support |
| Defog | N/A |
| Noise Reduction | 2D/3D DNR |
| Mirror / Flip | Support |
| Corridor Mode | Support |
| HLC | Support |
| BLC | Support |
| ROI | 4 areas |
| Anti-flicker | Support |
| IVA | Intelligent Video |
| Facial Detection | |
| "Face Templates" | N/A |
| "Face Detected Per Frame" | 5 |
| "Detected Face Size" | 80x80-300x300 Pixels |
| "Face Quality Filtering" | Support |
| "Detection Area" | User-defined |
| "Capture Response" | ≤ 200ms |
| Network Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP, RTMP |
| Interoperability | ONVIF, SDK, API |
| Max. Online Users | 3 |
| Web Browser | IE/Firefox / Chrome / Safari |
| Management Software (VMS) | AntarVis 2.0, ZKBioSecurity IVS, ZKBioAccess IVS |
| Operation System | Windows |
| Mobile APP | AntarView Pro |
| P2P Cloud Service | Support |
| Ethernet | 1 RJ-45 port (10/100Mbps) |
| Audio I/O | Built-in Mic for audio in |
| Alarm I/O | N/A |
| RS485 | N/A |
| Reset Button | N/A |
| Micro-SD Slot | Support (max, 256GB) |
| ANR | Support |
| USB | N/A |
| Power Supply | PoE, DC12V±10% |
| Power Consumption | <3.7W |
| Working Temperature | -30℃ to 60℃ |
| Working Humidity | 10% to 90% |
| Ingress Protection | IP67 |
| Dimensions (L*W*H) | 180.80 x 75.30 x 66.20 (mm) |
| Net Weight | 0.40kg |
| Gross Weight | 0.52kg |
| Ordering Information - Camera | 5MP Camera |
| Model | BS-855P11T-S7-C-MI |
| Description | 5MP Full Colour Face Detection Bullet IP Camera |
