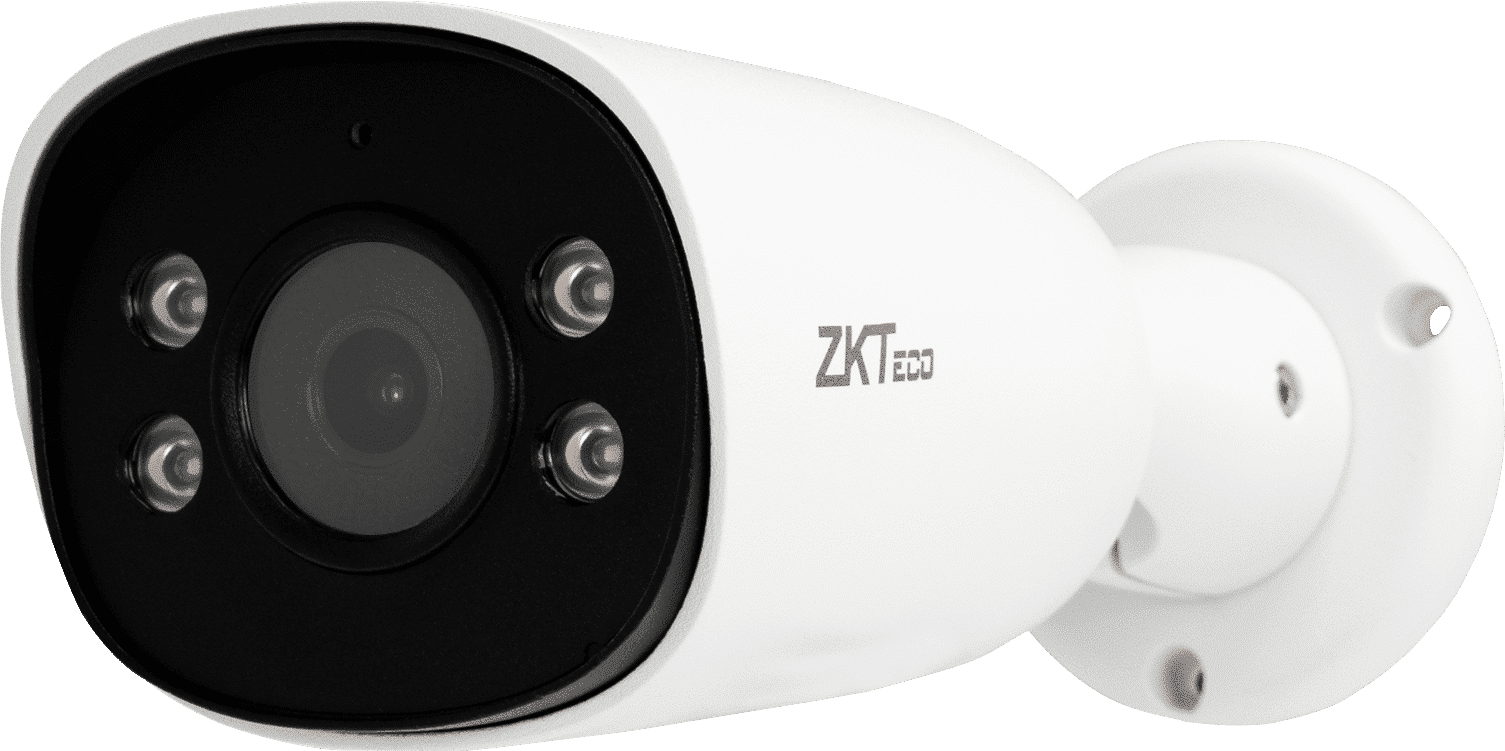

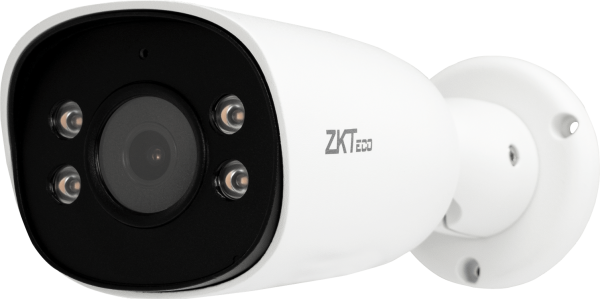

A high-performance full-color series camera that delivers high-quality color images with rich details even in total darkness. It features a built-in P2P cloud function for flexible remote viewing.

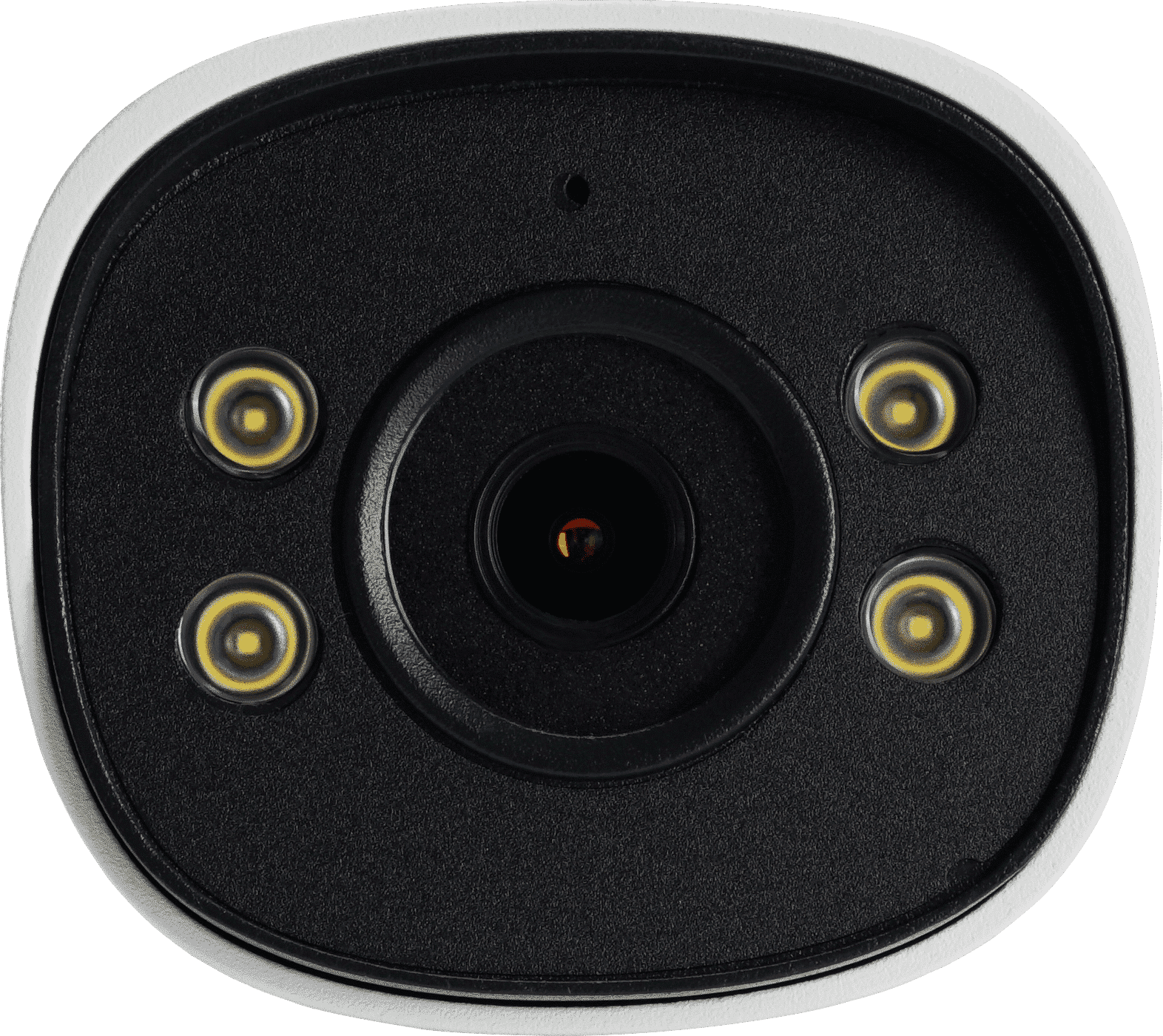

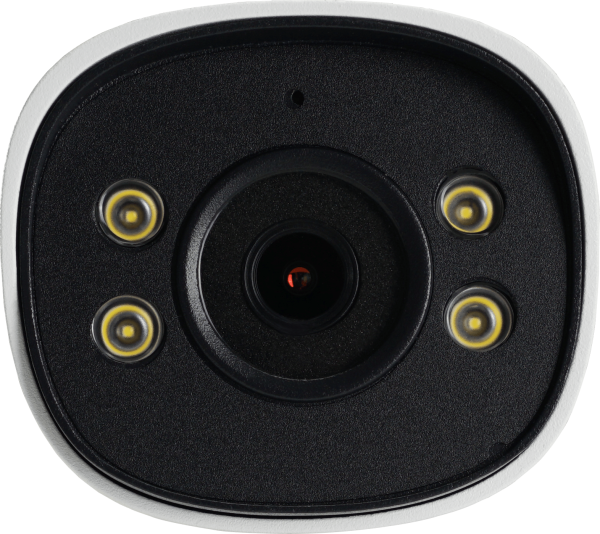

The ZKTeco BS-852O12T-S5-C-MI is part of the full-color series camera, powered by a cutting-edge F1.0 large aperture lens and warm white LED illuminators. This model promises to deliver accurate identification round-the-clock.
One of the standout features of this model is the built-in P2P cloud function. This allows for more convenient and flexible remote real-time viewing and monitoring. The camera also utilizes H.265 and H.264 compression, an evolutionary optimization of H.265 and the traditional H.264. It includes a series of encoding strategies such as dynamic ROI, smart 2D&3D noise reduction for delivering high-quality videos while greatly saving up to 70% bandwidth and storage.

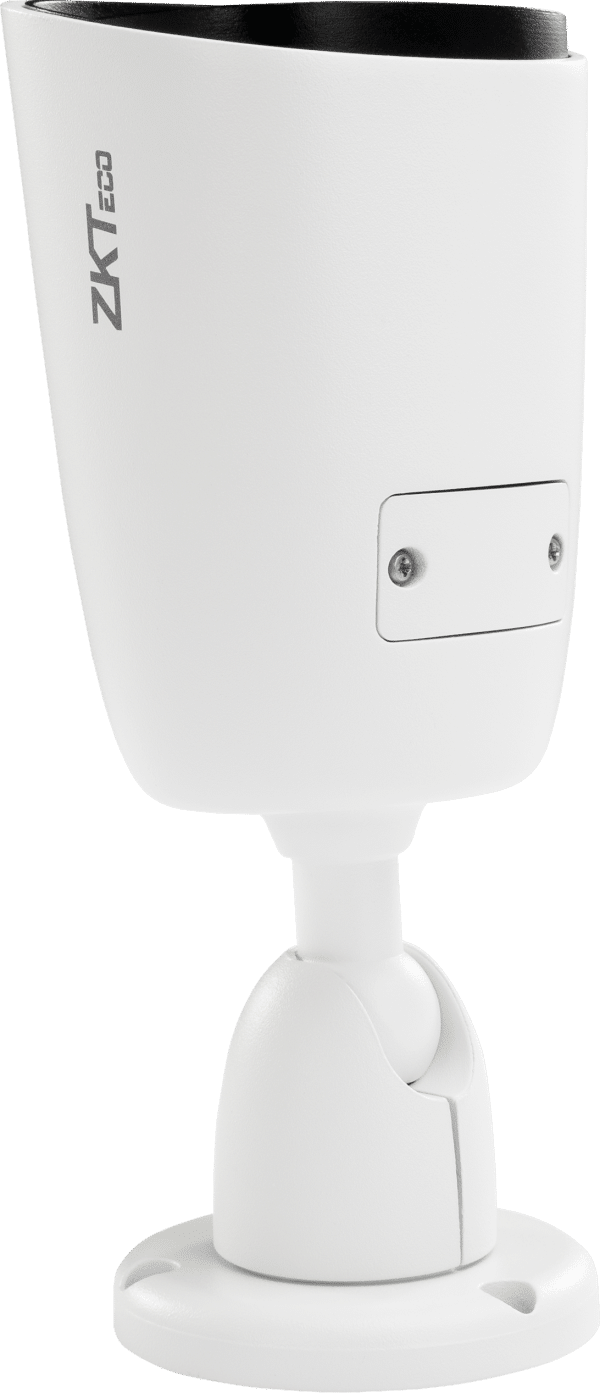

With precise mechanical design and rugged metal casing rated IP67, this camera can withstand water and dust for a long time. It can work safely under extreme or unstable power conditions and adapt to a variety of harsh outdoor environments with a working temperature range from -30°C ~ 60°C.
Key Features:
| Feature | Description |
|---|---|
| CAMERA | |
| "Model" | BS-852O12T-S5-C-MI |
| "Image Sensor" | 1/2.9\ CMOS" |
| "Effective Pixels" | 1920x1080 |
| "Illumination (Minimum)" | Colour: 0.0001Lux@F1.0 (AGC ON) |
| "Flash / DDR" | 16Mb / 512Mb |
| "IR LED No." | 4 |
| "IR Distance" | 20m |
| "S/N Ratio" | ≥52dB |
| LENS | |
| "Lens Type" | Fixed |
| "Mount Type" | Board-in |
| "Focal Length" | 3.6mm |
| "Aperture" | F1.0 |
| "FOV" | 85° |
| "Optical Zoom" | N/A |
| "Compression" | H.265 / H.264 |
| "Resolution" | 1080P (1920 x 1080), 1.3M (1280 x 960), 720P (1280 x 720) |
| "Bitrate Control" | CBR / VBR |
| "Bitrate" | H.265: 128Kbps-6Mbps, H.264: 128Kbps-6Mbps |
| "Main Stream" | 1080P@25fps/960P@25fps/720P@25fps |
| "Sub Stream" | D1@25fps/VGA@25fps |
| "Third Stream" | N/A |
| "WDR" | DWDR |
| "Day / Night" | Support |
| "White Balance" | Support |
| "Defog" | N/A |
| "Noise Reduction" | 2D/3D DNR |
| "Mirror / Flip" | Support |
| "Corridor Mode" | Support |
| "Motion Detection" | Support |
| "Digital Zoom" | Support |
| "Audio Compression" | G7.11u |
| "Privacy Mask" | 4 areas |
| "HLC" | Support |
| "BLC" | Support |
| "ROI" | 4 areas |
| "Anti-flicker" | N/A |
| "IVA" | Intelligent Video |
| FACIAL DETECTION | |
| "Face Templates" | N/A |
| "Face Detected Per Frame" | N/A |
| "Detected Face Size" | N/A |
| "Face Quality Filtering" | N/A |
| "Detection Area" | N/A |
| "Capture Response" | N/A |
| NETWORK | |
| "Protocol" | TCP/IP, UDR, HTTP, DHCP, RTSP, DDNS, NTP |
| "Interoperability" | ONVIF, SDK, API |
| "Max. Online Users" | 3-Jan |
| "Web Browser" | IE / Firefox / Chrome / Safari |
| "Management Software (VMS)" | AntarVis 2.0, ZKBioSecurity IVS, ZKBioAccess IVS |
| "Operation System" | Windows |
| "Mobile APP" | AntarView Pro |
| "P2P Cloud Service" | Support |
| INTERFACE | |
| "Ethernet" | 1 RJ-45 port (10/100Mbps) |
| "Audio I/O" | Built-in Mic for audio in |
| "Alarm I/O" | N/A |
| "RS485" | N/A |
| "Reset Button" | Support |
| "Micro-SD Slot" | Support (max. 256GB) |
| "ANR" | Support |
| "USB" | N/A |
| GENERAL | |
| "Power Supply" | PoE, DC12V±10% |
| "Power Consumption" | <3.7W |
| "Ingress Protection" | IP67 |
| "Dimensions (L*W*H)" | 180.80 x 75.30 x 66.20 (mm) |
| "Working Temperature" | -30℃ to 60℃ |
| "Working Humidity" | 0% to 90%RH |
| "Net Weight" | 0.4kg |
| "Gross Weight" | 0.52kg |
| ORDER INFORMATION | |
| "Camera" | 2MP Camera |
| "Model" | BS-852O12T-S5-C-MI |
| "Description" | 2MP Full Colour Bullet IP Camera |
