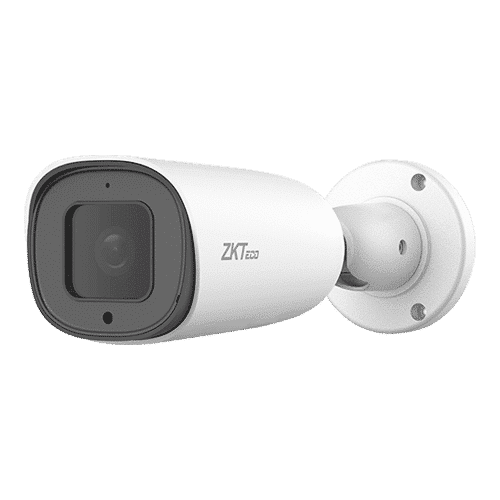

The ZKTeco BL-858M48A-S8 is part of the Pro Series, powered by a 1/2.7” 8MP Sony STARVIS CMOS sensor and H.265+ triple stream encoding. This model promises to deliver accurate identification round-the-clock with an IR effective range of 80m.
One of the standout features of this model is the built-in P2P cloud function. This allows for more convenient and flexible remote real-time viewing and monitoring. The camera also utilizes H.265+ triple stream encoding, an evolutionary optimization of H.265 and the traditional H.264. It includes a series of encoding strategies such as dynamic ROI, smart 2D&3D noise reduction for delivering high-quality videos while greatly saving up to 70% bandwidth and storage.
With precise mechanical design and rugged metal casing rated IP67, this camera can withstand water and dust for a long time. It can work safely under extreme or unstable power conditions and adapt to a variety of harsh outdoor environments with a working temperature range from -30°C ~ 60°C.
Key Features:
Feature | Description |
---|---|
Model | BL-858M48A-S8 |
Image Sensor | 1/2.7” Sony STARVIS CMOS |
Effective Pixels | 3840x2160 |
Min. Illumination | Colour: 0.01Lux@F1.6-3.3 (AGC ON), B/W: 0.001Lux@F1.6-3.3 (AGC ON) |
Flash / DDR | 1Gb / 2Gb |
IR LED No. | 4 |
IR Distance | 80m |
S/N Ratio | > 52dB |
LENS | |
Lens Type | Motorised |
Mount Type | Board-in |
Focal Length | 3.2mm ~ 10.05mm |
Aperture | F1.6 - 3.3 |
FOV | 29°~110° |
Optical Zoom | 3X |
VIDEO | |
Compression | H.265 / H.264 |
Resolution | 8MP (3840 x 2160), 5MP (2592 x 1944), 4MP (2560 x 1440), 1080P (1920 x 1080), D1 (720 x 576), VGA (620 x 480), CIF (352 x 288) |
Bitrate Control | CBR / VBR |
Bitrate | 4Mbps ~ 8Mbps |
Multi-Streaming | Main Stream: 8MP@20fps / 5MP@25fps / 4MP@25fps / 2MP@25fps; Sub Stream: D1@25fps / VGA@25fps / CIF@25fps; Third Stream: N/A |
Motion Detection | Support |
Digital Zoom | Support |
Audio Compression | G7.11u |
Privacy Mask | 4 areas |
WDR | DWDR |
Day / Night | Support |
White Balance | Support |
Corridor Mode | Support |
Defog | N/A |
Noise Reduction | 2D / 3D DNR |
HLC | Support |
Mirror / Flip | Support |
BLC | Support |
ROI | 4 areas |
Anti-flicker | N/A |
IVA | Intelligent Video |
Face Detection | Support |
FACIAL DETECTION | |
Face Templates | N/A |
Face Detected Per Frame | N/A |
Detected Face Size | N/A |
Face Quality Filtering | N/A |
Detection Area | N/A |
Capture Response | N/A |
