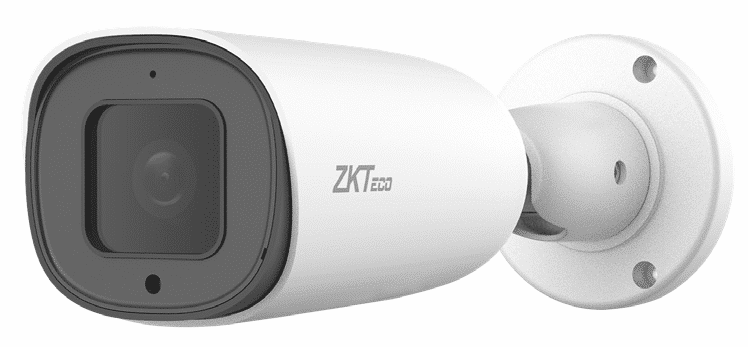

ZKTeco BL-855P48S-S7: 5MP Face Detection Bullet Camera
![](https://www.nzteco.co.nz/wp-content/uploads/2023/09/ZKTeco-BL-855P48S-S7.png)
The BL-855P48S-S7 Pro Series from ZKTeco is a 5MP bullet IP camera equipped with face detection and a motorized lens. It ensures high-quality monitoring and supports multiple video analytics. With its rugged IP67 metal casing, it’s built for durability in challenging conditions.
Product Details
BL-855P48S-S7 Pro Series 5MP Bullet IP Camera
Experience superior video monitoring with ZKTeco's cutting-edge 5MP bullet IP camera, tailored for enhanced security and surveillance.
- Crystal Clear Video: Powered by H.265 technology, save up to 70% bandwidth and storage while ensuring high-quality visuals.
- Intelligent Video Analytics: Features include Face Detection, Line Crossing, and more for smarter surveillance.
- Durable Design: IP67 rated metal casing provides protection against water and dust. Safe operation under extreme power conditions and temperature ranges from -30°C to 60°C.
- Key Specifications:
- 1/2. ” CMOS sensor
- Optical lens with a ~1mm range and 3X Optical Zoom
- Resolution support ranging from 720P to 5MP
- Built-in PoE for easy installation
- 120db True WDR for clear visuals in challenging light conditions
- Lightning protection up to 6kV
- Compatible with multiple web browsers and mobile apps
- Connectivity & Compatibility: The camera supports TCP/IP, UDP, HTTP, DHCP protocols, and more. It's compatible with Windows OS and supports browsing via IE, Firefox, Chrome, and Safari. Users can also access real-time monitoring via the AntarView Pro mobile app.
Trust in the security and reliability provided by ZKTeco's BL-855P48S-S7 Pro Series. Get yours now for state-of-the-art surveillance.
Specifications
Feature | Description |
---|---|
Model | BL-855P48S-S7 |
Image Sensor | 1/2.7” CMOS |
Effective Pixels | 2592 * 1944 |
Flash / DDR | 128Mb / 1Gb |
IR LED No. | 4 |
IR Distance | 80m |
S/N Ratio | > 52dB |
Lens | |
Lens Type | Motorized |
Mount Type | Board-in |
Focal Length | 3.6mm ~ 10.8mm |
Aperture | F1.7 ~ F3.3 |
FOV | 35°~95° |
Optical Zoom | 3X |
Compression | H.265 / H.264 |
Resolution | 5MP (2592 x1944) / 4MP (2688 x 1520) / 3MP (2304 x 1296) / 1080P (1920 x 1080) / 1.3MP (1280 x 960) / 720P (1280 x 720) |
Bitrate Control | CBR / VBR |
Bitrate | H.265: 3Mbps - 8Mbps H.264: 3Mbps - 8Mbps |
Multi-Streaming | |
Main Stream | 5MP@25fps / 4MP@25fps / 3MP@25fps /1080P@25fps / 960P@25fps / 720P@25fps |
Sub Stream | D1@25fps / VGA@25fps / CIF@25fps |
Third Stream | N/A |
Motion Detection | Support |
Digital Zoom | Support |
Audio Compression | G7.11u |
Privacy Mask | 4 areas |
WDR | True WDR |
Day / Night | Support |
White Balance | Support |
Corridor Mode | Support |
Defog | N/A |
Noise Reduction | 2D/3D DNR |
HLC | Support |
Mirror / Flip | Support |
BLC | Support |
ROI | 4 areas |
Anti-flicker | Support |
IVA | |
Intelligent Video | Face Detection |
Facial Detection | |
Face Templates | N/A |
Face Detected Per Frame | 6 |
Detected Face Size | 80 x 80 ~ 300 x 300 Pixels |
Face Quality Filtering | Support |
Detection Area | User-defined |
Capture Response | ≤200ms |
Network | |
Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, NTP, RTMP |
Interoperability | ONVIF Profile S, SDK, API |
Max. Online Users | 3 |
Web Browser | IE / Firefox / Chrome / Safari |
Management Software (VMS) | AntarVis 2.0 ZKBioSecurity IVS ZKBio Access IVS |
Operation System | Windows |
Mobile APP | AntarView Pro |
P2P Cloud Service | Support |
Interface | |
Ethernet | 1 RJ-45 port (10/100Mbps) |
Audio I/O | 1/0 |
Alarm I/O | N/A |
RS485 | N/A |
Reset Button | N/A |
Micro-SD Slot | N/A |
ANR | N/A |
USB | N/A |
General | |
Power Supply | PoE (IEEE802.3af ), DC 12V±10% |
Power Consumption | < 3W |
Ingress Protection | IP67 |
Dimensions (L*W*H) | 246 * 85 * 76 (mm) |
Working Temperature | -30℃ to 60℃ |
Working Humidity | 10% to 90% |
Net Weight | 0.50kg |
Gross Weight | 0.64kg |
Ordering Information | |
Camera | 5MP Camera |
Model | BL-855P48S-S7 |
Description | 5MP Motorized Lens Face Detection Bullet IP Camera |
