ZKTeco BL-852Q38A-LP: ZK-LPR Car ID License Plate Recognition Camera

Description

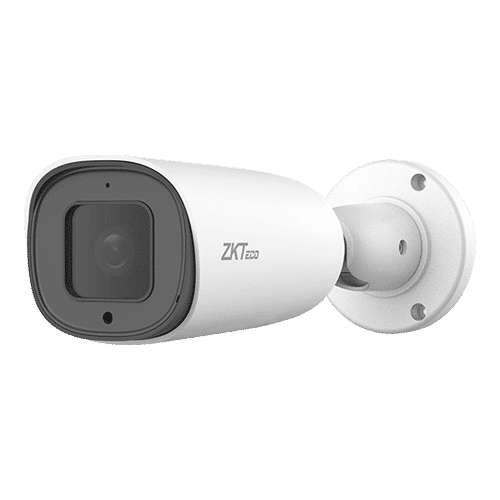

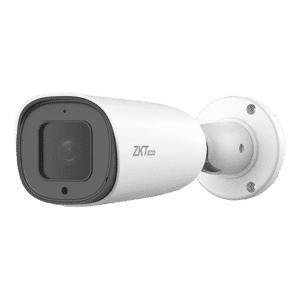

ZKTeco BL-852Q38A-LP: Advanced 2MP License Plate Recognition IP Camera for Vehicle Access Management

The ZKTeco BL-852Q38A-LP, also known as ZK-LPR Car ID, is an advanced 2-megapixel IP camera with an embedded License Plate Recognition (LPR) application. This unique feature allows the camera to process license plate recognition internally, eliminating the need for external computers in vehicle access scenarios such as tolling, parking, and vehicle weighing stations. With its high-performance 1/2.8” Sony STARVIS CMOS sensor and motorized varifocal lens, the BL-852Q38A-LP delivers clear, high-resolution images with flexible zoom capabilities to suit different monitoring requirements.

The BL-852Q38A-LP is designed to simplify installation and reduce the overall cost of vehicle access management systems by integrating LPR directly within the camera. It features IR illumination with a range of up to 50 meters, enabling license plate recognition even in low-light or nighttime conditions. The camera’s IP67-rated casing provides robust protection against dust and water ingress, making it ideal for outdoor use in various environmental conditions.

Key Features

• Embedded License Plate Recognition – Built-in LPR engine recognizes license plates from over 80 countries, making it ideal for vehicle access management.
• High-Resolution Imaging – Equipped with a 2MP Sony STARVIS CMOS sensor for capturing clear, detailed images at 1920 × 1080 resolution.
• Motorized Varifocal Lens – Features a 3.35mm to 10.05mm motorized lens with 3x optical zoom, offering flexible field-of-view adjustments.
• Infrared Illumination – Smart IR LEDs provide an effective range of up to 50 meters, ensuring visibility in low-light conditions for round-the-clock surveillance.
• Durable Design – The IP67-rated metal casing offers protection against dust and water ingress, making it suitable for outdoor environments.
• Power over Ethernet (PoE) – Supports PoE (IEEE802.3af), simplifying installation by allowing power and data transmission over a single Ethernet cable.

Technical Specifications

• Image Sensor: 1/2.8” Sony STARVIS CMOS
• Effective Pixels: 1920 × 1080
• Minimum Illumination: Color: 0.001 Lux @ F1.7 (AGC ON)
• Lens Type: Motorized Varifocal
• Focal Length: 3.35mm to 10.05mm
• Aperture: F1.7 to F3.0
• Field of View (FOV): 38° to 107°
• Optical Zoom: 3x
• Video Compression: H.265+, H.265, H.264
• Resolution Options: 1080P (1920 × 1080), 1.3MP (1280 × 960), 720P (1280 × 720), Q720P (640 × 360), CIF (352 × 288)
• IR Distance: Up to 50 meters
• Ingress Protection: IP67
• Power Supply: PoE (IEEE802.3af), DC 12V±10%
• Operating Temperature: -30°C to +60°C
• Dimensions: 247mm (L) × 85mm (W) × 76mm (H)
• Weight: Net: 0.50 kg; Gross: 0.64 kg

Applications

The ZKTeco BL-852Q38A-LP is an ideal solution for various vehicle access management applications. It is particularly well-suited for tolling stations, parking management, and access control at secured facilities where efficient, real-time license plate recognition is required. Its high-resolution imaging, advanced LPR capabilities, and robust design make it a versatile choice for both urban and rural environments.

Why Choose ZKTeco BL-852Q38A-LP?

• All-in-One LPR Solution – The embedded LPR engine eliminates the need for additional hardware, simplifying installation and reducing system costs.
• Flexible Monitoring – Motorized varifocal lens with 3x zoom offers a flexible field of view, making it suitable for diverse surveillance needs.
• Rugged and Reliable – IP67-rated casing ensures reliable operation in challenging environmental conditions, providing long-term durability and consistent performance.

Specifications

Downloads

Brochure
