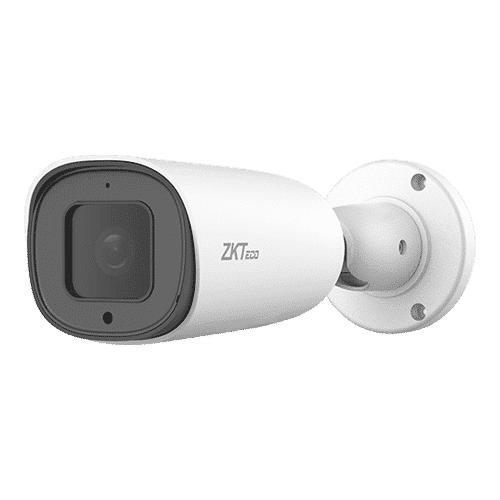

A high-performance camera from the Lite Series that delivers high-quality 2MP images with an embedded face detection algorithm. It features a built-in P2P cloud function for flexible remote viewing and supports multiple industry-leading Intelligent video analytic functions.
[et_pb_section fb_built=”1″ _builder_version=”4.16″ custom_padding=”0px||||false|false” da_disable_devices=”off|off|off” collapsed=”on” global_colors_info=”{}” da_is_popup=”off” da_exit_intent=”off” da_has_close=”on” da_alt_close=”off” da_dark_close=”off” da_not_modal=”on” da_is_singular=”off” da_with_loader=”off” da_has_shadow=”on”][et_pb_row _builder_version=”4.16″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” custom_padding=”0px||0px||false|false” global_colors_info=”{}”][et_pb_column type=”4_4″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_breadcrumb _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_breadcrumb][et_pb_wc_cart_notice _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_cart_notice][/et_pb_column][/et_pb_row][et_pb_row column_structure=”1_2,1_2″ _builder_version=”4.16″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” custom_padding=”0px||||false|false” global_colors_info=”{}”][et_pb_column type=”1_2″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_images _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_images][/et_pb_column][et_pb_column type=”1_2″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_title _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_title][et_pb_wc_rating _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_rating][et_pb_wc_price _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_price][et_pb_wc_description _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_description][et_pb_wc_add_to_cart _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_add_to_cart][et_pb_wc_meta _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_meta][/et_pb_column][/et_pb_row][et_pb_row _builder_version=”4.16″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” global_colors_info=”{}”][et_pb_column type=”4_4″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_wc_tabs _builder_version=”4.16″ global_colors_info=”{}”] [/et_pb_wc_tabs][et_pb_wc_upsells _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_upsells][et_pb_wc_related_products _builder_version=”4.16″ global_colors_info=”{}”][/et_pb_wc_related_products][/et_pb_column][/et_pb_row][/et_pb_section]
| Feature | Description |
|---|---|
| Model | EL-852O38I-S5 |
| Image Sensor | 1/2.9” CMOS |
| Effective Pixels | 1920x1080 |
| Flash / DDR | 128Mb / 512Mb |
| IR LED No. | 2 |
| IR Distance | 50m |
| Min. Illumination | Colour: 0.5Lux@F1.7~3.0(AGC ON), B/W: 0.001Lux@F1.7~3.0(IR ON) |
| S/N Ratio | < 50dB |
| LENS | |
| Lens Type | Motorised |
| Mount Type | Board-in |
| Focal Length | 3.35mm ~ 10.05mm |
| Aperture | F1.7 ~ F3.0 |
| FOV | 38° ~ 101° |
| Optical Zoom | 3X |
| VIDEO | |
| Compression | H.265 / H.264 |
| Resolution | 1080P (1920 × 1080), 1.3M (1280 × 960), 720P (1280 × 720) |
| Bitrate Control | CBR / VBR |
| Bitrate | H.265: 16Kbps - 4Mbps, H.264: 16Kbps - 4Mbps |
| Multi-Streaming | Main Stream: 1080P@25fps |
| Sub Stream | Q720P@25fps |
| Third Stream | N/A |
| Motion Detection | Support |
| Digital Zoom | Support |
| Audio Compression | G7.11u |
| Privacy Mask | 4 areas |
| WDR | DWDR |
| Day / Night | Support |
| White Balance | Support |
| Corridor Mode | Support |
| Defog | N/A |
| Noise Reduction | 2D / 3D DNR |
| HLC | N/A |
| Mirror / Flip | Support |
| BLC | Support |
| ROI | 4 areas |
| Anti-flicker | Support |
| IVA | Facial Detection |
| FACIAL DETECTION | |
| Face Detection | Support |
| Face Templates | N/A |
| Face Detected Per Frame | 6 |
| Detected Face Size | 80x80 ~ 300x300 Pixels |
| Face Quality Filtering | Support |
| Detection Area | User-defined |
| Capture Response | ≤200ms |
| NETWORK | |
| Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, NTP, RTMP |
| Interoperability | ONVIF Profile S, SDK, API |
| Max. Online Users | 3 |
| Web Browser | IE / Firefox / Chrome / Safari |
| Management Software (VMS) | AntarVis 2.0, ZKBioSecurity IVS, ZKBio Access IVS |
| Operation System | Windows |
| Mobile APP | AntarView Pro |
| P2P Cloud Service | Support |
| INTERFACE | |
| Ethernet | 1 RJ-45 port (10/100Mbps) |
| Audio I/O | 1/0 |
| Alarm I/O | N/A |
| RS485 | N/A |
| Reset Button | N/A |
| Micro-SD Slot | N/A |
| ANR | N/A |
| USB | N/A |
| GENERAL | |
| Power Supply | PoE (IEEE802.3af), DC 12V±10% |
| Power Consumption | <3W |
| Ingress Protection | IP67 |
| Dimensions (L*W*H) | Φ111.6 x 105 (mm) |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 0% ~ 90% |
| Net Weight | 0.40kg |
| Gross Weight | 0.64kg |
| ORDERING INFORMATION | |
| Camera | 2MP Camera |
| Model | EL-852O38I-S5 |
| Description | 2MP Motorised Lens Face Detection Eyeball IP Camera |
