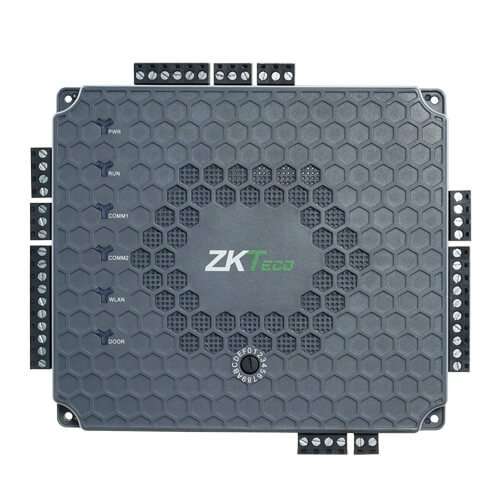

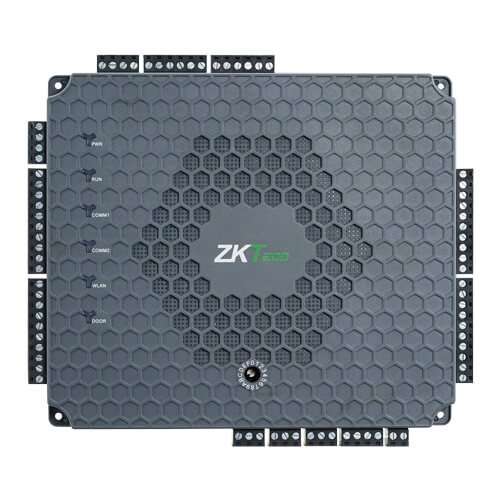

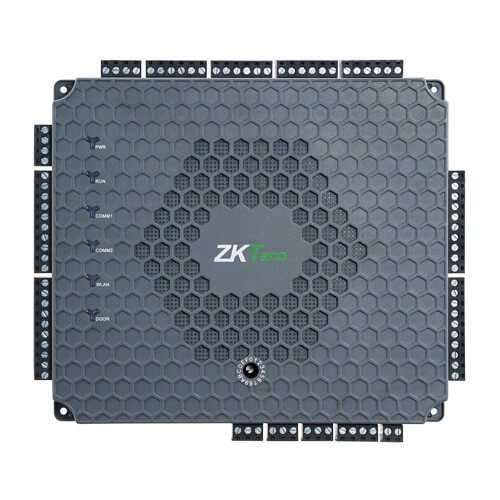

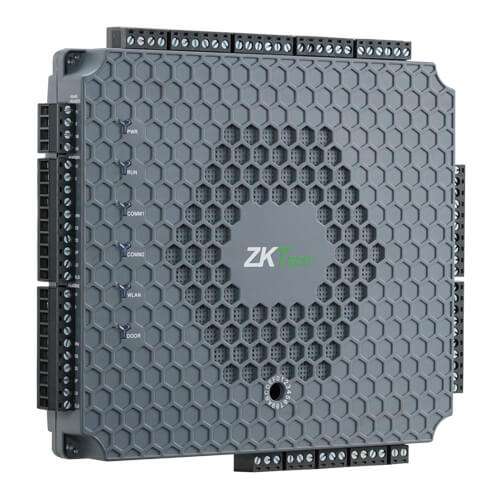

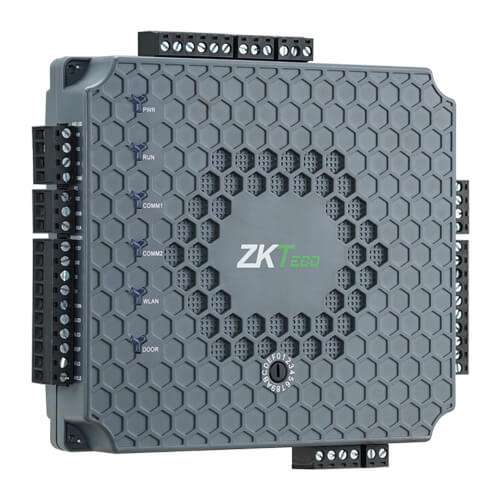

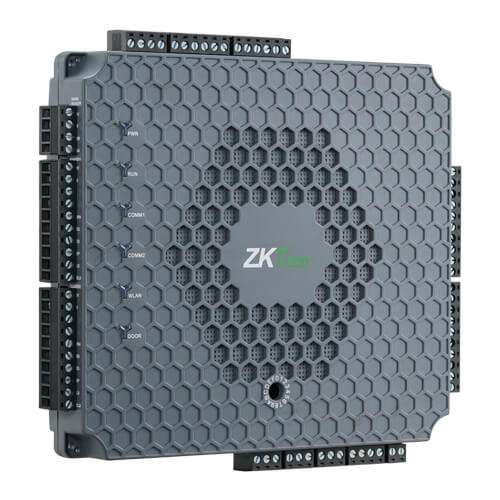

The ZKTeco Atlas Bio Series is a 1, 2 or 4-door access control panel with onboard fingerprint storage and matching, plus a built-in web app for browser-based setup. No separate ZKBio server required. Stores up to 10,000 fingerprints and 20,000 cardholders, with PoE, OSDP and Wiegand reader support for clean integration into existing or new fit-outs.
The ZKTeco Atlas Bio Series suits NZ SMEs that want fingerprint authentication on the door but do not want to stand up and maintain a full ZKBio server. The panel itself does the biometric matching and ships with a built-in web interface. Point a browser at it, set up users, doors and schedules, and you are running.
Atlas (non-Bio) handles cards and PINs only and offloads biometrics to a separate biometric reader plus server. Atlas Bio stores and matches fingerprint templates on the controller itself, so a basic OSDP or Wiegand reader at the door is enough for full biometric access. Fewer moving parts, faster reads, lower install cost.
| Specification | Atlas-160 | Atlas-260 | Atlas-460 |
|---|---|---|---|
| Doors Controlled | 1 | 2 | 4 |
| Readers Supported | 2 | 4 | 8 |
| Reader Type | ZKTeco fingerprint readers, 3rd-party 125kHz & 13.56MHz Wiegand / OSDP / RS-485 readers | ||
| User Capacity | 5,000 (fingerprint and/or card users) | ||
| Fingerprint Templates | Up to 10 fingers per user | ||
| Event Logs | 10,000 transactions + unlimited archive downloads | ||
| Inputs | 4 (Exit, Door Contact, 2 Aux) | 6 (2 Exit, 2 Door Contact, 2 Aux) | 10 (4 Exit, 4 Door Contact, 2 Aux) |
| Outputs | 2 (1 Lock, 1 Aux) | 3 (2 Lock, 1 Aux) | 5 (4 Lock, 1 Aux) |
| Communication | TCP/IP, Wi-Fi, RS-485, Wiegand, OSDP | ||
| Built-in Web Application | Yes – no software required | ||
| Mobile App Support | Yes – remote unlock, user management, alarms | ||
| Power Supply | 12V DC, 3A (PoE Supported) | ||
| Power Consumption | 9W @ 12V DC, 750mA | ||
| Operating Temperature | 0–45°C (32–113°F) | ||
| Operating Humidity | 20% to 80% | ||

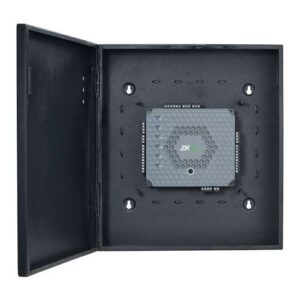

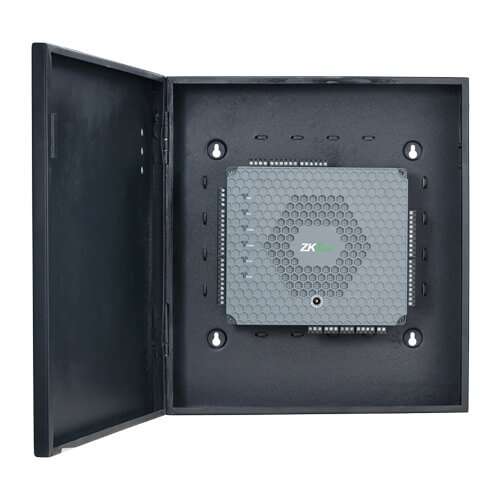

| Enclosure | Powder-coated aluminium | ||
| Mounting | Wall mount | ||
| Browser Support | Chrome, Firefox, Edge | ||
| Primary + Secondary Support | 1 primary + 20 secondary panels (max. 84 doors) | ||
| Dimensions (Bundle) | 380 × 80 × 280 mm (15 × 3.15 × 11 in) | ||
| Dimensions (Board Only) | 160 × 106 mm | 197 × 171 mm | 197 × 171 mm |
| Weight | 9 lbs (4.1 kg) | 10 lbs (4.2 kg) | 10 lbs (4.2 kg) |
