The ZKDigimax DG03-A3W is a reliable and cost-effective digital signage display designed for commercial environments. Featuring an ultra-thin 7.8mm frame, Full HD resolution, and Android 11 OS, it provides seamless content playback with WiFi and USB connectivity.

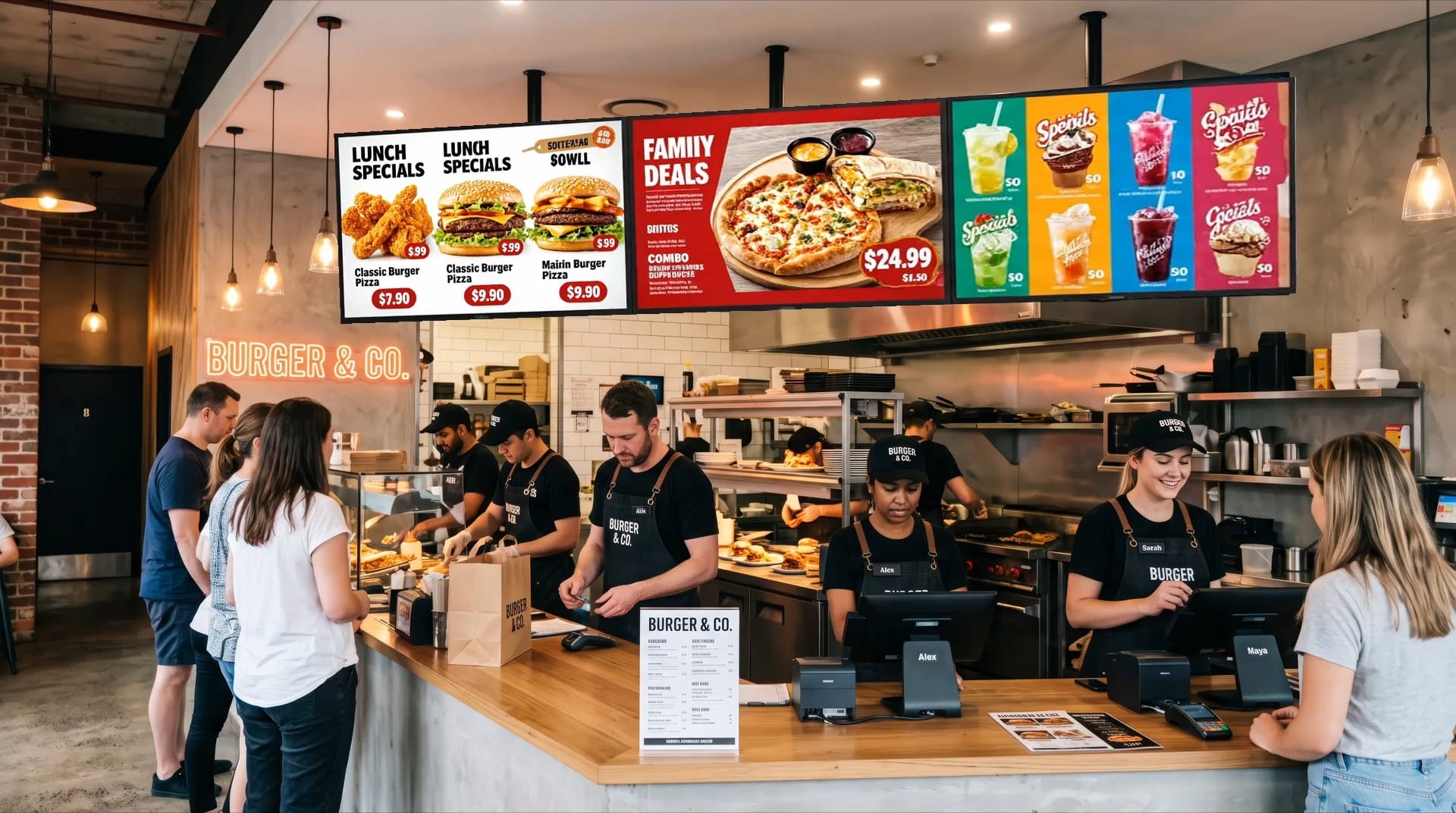

The ZKDigimax DG03-A3W Series is an affordable yet high-quality digital signage solution for businesses looking to enhance their customer engagement through dynamic visual displays. Designed for retail stores, service halls, restaurants, and hospitality settings, this display ensures 24/7 reliability with its energy-efficient performance and advanced connectivity options.
Whether you need a display for customer engagement, interactive advertisements, or dynamic in-store promotions, the DG03-A3W delivers high-resolution visuals with minimal power consumption. Its compatibility with various media formats, including video, images, and audio, makes it a flexible solution for business environments.
Built with an energy-efficient LED backlight and an optimized chipset, the DG03-A3W series balances performance with power savings. It is rated for over 30,000 hours of operation, making it a dependable long-term investment for businesses.
| Model | Name | DG03-A3W32 | DG03-A3W43 | DG03-A3W49 | DG03-A3W55 |
|---|---|---|---|---|---|
| Mainboard | OS | Android 11.0 | |||
| CPU | Quad Core Cortex-A53 | ||||
| RAM | 2GB | ||||
| ROM | 16GB | ||||
| Chipset | RK3566S | ||||
| ID & MD | ID | Simple style, black matte narrow frame | |||
| Texture of material | Support ul94-hb75 fire rating | ||||
| MD | SupportVESA hanger (horizontal and vertical) | ||||
| Model | Size | 32-inch | 43-inch | 49-inch | 55-inch |
| Backlight | E-LED | ||||
| Resolution | 1920 × 1080 | ||||
| Aspect Ratio | 16:9 | ||||
| Contrast | 1600:1 | ||||
| ResponseTime | 8 ms | ||||
| Frequency | 60Hz | ||||
| Visual Angle | |||||
| Brightness | 350cd/m² (typ) | ||||
| Color Gamut | 72% | ||||
| Life | >30000 hours | ||||
| Interface | RJ45 | 1 | |||
| USB | 2 | ||||
| Network | Wi-Fi | 2.4G | |||
| LAN | RJ45 Ethernet | ||||
| Speaker | Power | 3Wx2 | |||
| Format Support | Video | (H.264,DIVX,DIVX,XVID)/rm/rmvb/MKV (H.264,DIVX,DIVX,XVID)/WMV/MOV/MP4 (.H.264,MPEG,DIVX,VID)/DAT (VCD )/VOB (DVD)/MP/MPEG/.MPG/ FLV (H.263,H.264)/ASF /TS/TP/3GP/MPG | |||
| Audio | MP3/WMA/MP2/OGG/AAC/M4A/MA4/FLAC/APE/3GP/WAV | ||||
| Image | JPG/BMP/PNG/GIF | ||||
| Power | Power Input | AC 100~240V @50/60Hz | |||
| Rated Power | 50W | 65W | 75W | 85W | |
| Standby Power | <5W | ||||
| General Environment | Operating Temperature | 0℃ to 45 | |||
| StorageTemperature | 20℃ to 60 ℃ | ||||
| Operating Humidity | 20% to 80% | ||||
| Mechanical | Product Dimensions (L*H*W) | 720 × 416 × 51.1(mm) | 963 × 553 × 51.1(mm) | 1118 × 639 × 51.1(mm) | 1235 × 708 × 51.1(mm) |
| Package Dimensions (L*H*W) | 810 × 544 × 147(mm) | 1055 × 682 × 147(mm) | 1212 × 770 × 147(mm) | 1326 × 836 × 147(mm) | |
| NetWeight | 8 kg | 13 kg | 18 kg | 25 kg | |
| GrossWeight | 10 kg | 16.3 kg | 22 kg | 29.3 kg | |
