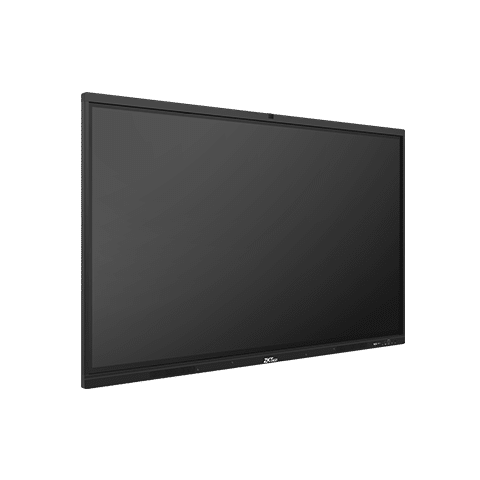

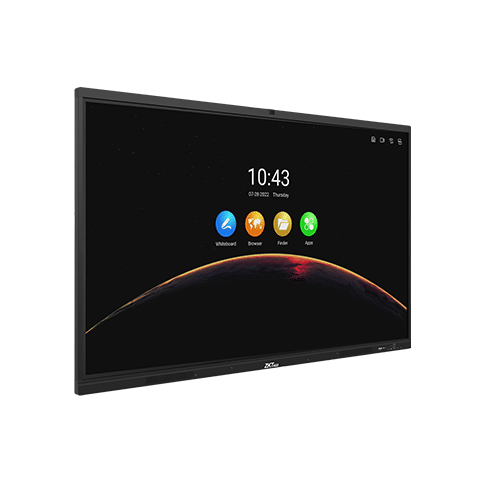

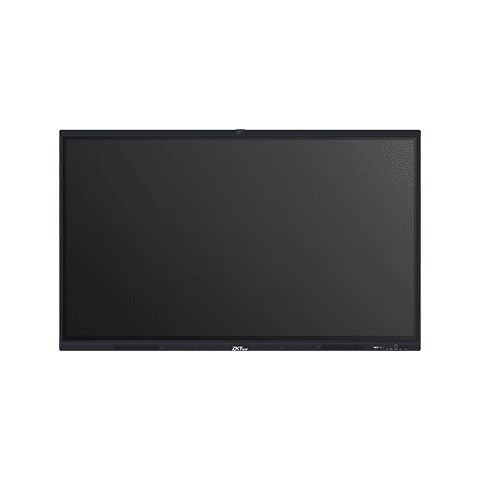

The ZK-IWBP Series is an advanced 4K smart interactive whiteboard, available in 65-inch, 75-inch, and 86-inch models. Featuring a 13MP UHD camera, 6-microphone array, Wi-Fi 6 connectivity, and a dual OS (Android & Windows), it enhances productivity and collaboration for meetings, training sessions, and presentations.
| Screen Size | 65 inch, 75 inch, 86 inch |
|---|
The ZK-IWBP Series (ZK-IWB65BP / ZK-IWB75BP / ZK-IWB86BP) is an upgraded interactive whiteboard designed to transform modern meetings and collaborative environments. With an ultra-HD 4K resolution (3840 × 2160), multi-touch support, and an integrated 13MP UHD camera, it delivers an unparalleled visual and interactive experience.
Powered by an Android 11.0 system (with optional Windows OS), this smart whiteboard includes built-in split-screen display, optical character recognition (OCR), and smartphone mirroring for seamless content sharing. Its Wi-Fi 6 module, Type-C interface, and HDMI input/output ports make it a flexible and efficient solution for conference rooms, classrooms, and corporate presentations.
The ZK-IWBP Series is designed for businesses, educational institutions, and conference environments that demand **seamless collaboration** and **high-quality interactive presentations**. With its **intuitive touch functionality, high-performance dual OS system, and multiple connectivity options**, it provides an intelligent meeting experience while fostering teamwork and productivity.
| Screen Size | 65 inch, 75 inch, 86 inch |
|---|
| Feature | Specification |
|---|---|
| Specifications | |
| Model | ZK-IWB65BP |
| ZK-IWB75BP | |
| ZK-IWB86BP | |
| LCD Screen | |
| Size | 65-inch |
| 75-inch | |
| 86-inch | |
| Screen Type | Backlight：D-LED |
| Display Parameters | Frequency: 60Hz |
| Display Colors: 1.07B(10bit) | |
| Resolution: 3840 × 2160(pixels) | |
| Brightness: 350nits | |
| Contrast Ratio: 1200:1(Typ.) | |
| Response Time: ≤10ms | |
| Aspect Ratio: 16:9 | |
| Viewing Angle: 178°(H)/178°(V) | |
| Camera & MIC | Camera: 13 megapixels; Auto frame; Field of View: H: 92°; V: 60°; D: 100° |
| Microphone: 6 microphones array; Echo cancellation, Noise Filtering, Automatic gain | |
| Speaker | Power: 2*16W (180Hz~20KHz) |
| Power Parameters | Power Consumption: 200W; 300W; 550W |
| Working Voltage: AC 100V to 240V, 50 / 60Hz | |
| Power Type: AC Power | |
| Standby Consumption: ≤0.5W | |
| Touch Parameters | Touch Technology: Infrared touch technology |
| Touch Points: 20 Multi-touch points | |
| Input: Bare finger; gloved finger; stylus | |
| Accuracy: ±1mm | |
| Minimum Size: 2mm | |
| Resolution: 32767 x 32767 | |
| Response Time: ≤10ms | |
| Connectivity | HDMI: HDMI IN: 3; HDMI OUT: 1 |
| USB: USB 2.0 * 1; USB 3.0 * 4; USB Type-C * 1 | |
| VGA: VGA IN * 1 | |
| Ethernet: RJ45 IN * 1; RJ45 OUT * 1 | |
| RS232: RS232 * 1 | |
| Touch: Touch * 2 | |
| Audio: AUDIO IN * 1; AUDIO OUT * 1 SPDIF * 1 | |
| Android OS | Android System: Android 11.0; 4G RAM, 32G ROM |
| CPU: Quad core A55 | |
| GPU: Mali G52MP2 | |
| WiFi | Module: Wi-Fi 6 |
| Band: Wi-Fi (IEEE802.11b / g / n / ax) @2.4GHz / 5GHz | |
| Windows (Optional) | Windows System: Windows 10, 8G RAM, 256G ROM |
| CPU: Intel(R)Core i5-11320H CPU @3.2GHz | |
| GPU: 1.3GHz Intel Xe | |
| Physical Parameters | Product Dimensions (L*W*H) :1488 * 906 * 87 (mm) ; 1709 * 1029 * 88 (mm); 1957 * 1169 * 88(mm) |
| Package Dimensions (L*W*H) :1628 * 208 * 1014(mm); 1863 * 225 * 1148(mm); 2110 * 225 * 1291(mm) | |
| Net Weight (kg) : 36.85Kg; 47.65Kg; 61.65Kg | |
| Weight with Packaging (kg) : 45.40Kg; 62.35Kg; 79.20Kg | |
| General Environment | Operating Temperature: 0°C to 40°C |
| Storage Temperature: -20°C to 60°C | |
| Storage and Operating Humidity: 10% to 90% RH | |
| Standard Package | Interactive whiteboard * 1 |
| Power cable * 1 | |
| Stylus Pen * 2 | |
| Wall bracket * 1 | |
| User manual * 1 | |
| Optional Accessories | OPS |
| Movable stand |
