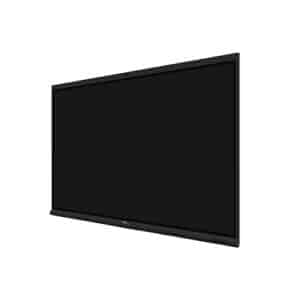

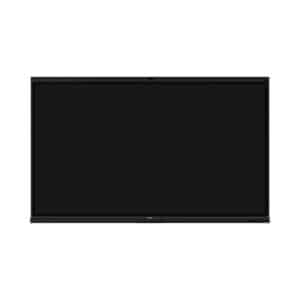

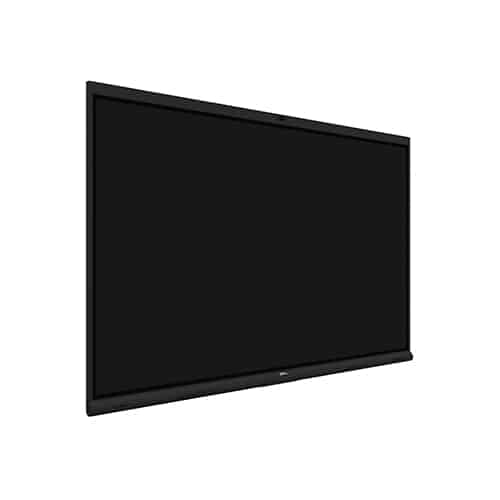

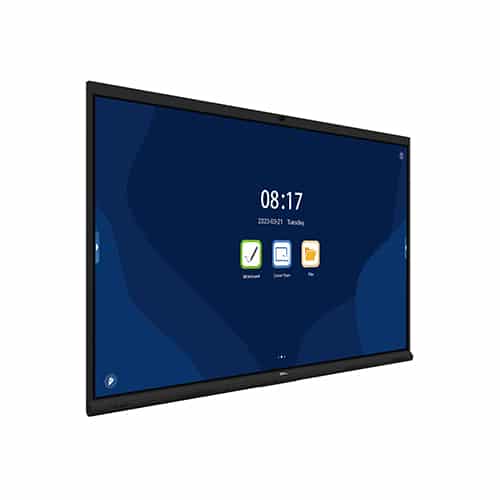

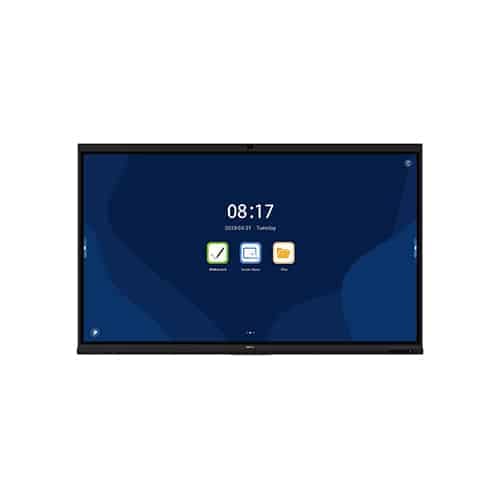

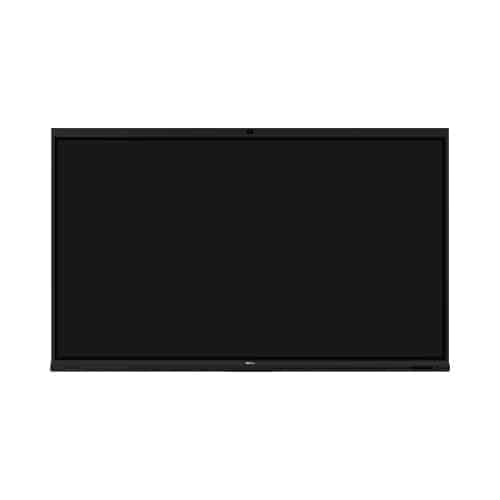

The ZK-IWBM Series is an advanced 4K smart interactive whiteboard designed for business and educational environments. Available in 65-inch, 75-inch, and 86-inch models, it features an 8MP camera, 8-microphone array, NFC support, Wi-Fi 6, and dual OS compatibility (Android 11 & Windows 11). With real-time collaboration, screen sharing, and multi-touch support, it enhances presentations, training, and meetings.
The ZK-IWBM Series (ZK-IWB65BM / ZK-IWB75BM / ZK-IWB86BM) is an upgraded interactive whiteboard tailored for business meetings, educational training, and conference environments. It features a 4K UHD resolution (3840 × 2160), ultra-responsive multi-touch capabilities, and an integrated 8MP camera with AI-powered face tracking.
The board’s built-in Wi-Fi 6 module ensures fast connectivity, while NFC functionality allows secure and seamless device pairing. The ZK-IWBM Series supports **dual OS operation (Android 11.0 & Windows 11.0 optional)**, providing flexibility for various applications. Whether for interactive classrooms, professional training rooms, or high-impact business presentations, this digital whiteboard enhances productivity with real-time collaboration, optical character recognition (OCR), and intuitive split-screen functionality.
The ZK-IWBM Series is the ultimate solution for **digital collaboration** in business, education, and professional training environments. With **intuitive touch functionality, high-performance dual OS system, and multiple connectivity options**, it provides an intelligent, interactive meeting experience while fostering teamwork and productivity.
| Feature | Specification |
|---|---|
| Model | ZK-IWB65BM |
| ZK-IWB75BM | |
| ZK-IWB86BM | |
| LCD Screen | ZK-IWB65BM：65-inch |
| ZK-IWB75BM：75-inch | |
| ZK-IWB86BM：86-inch | |
| Backlight Type | D-LED |
| Display Parameters | |
| Resolution | 3840 × 2160 (pixels) |
| Brightness | 400 cd/m² (typ.) |
| Contrast Ratio | 1200:1 (typ.) |
| Response Time | ZK-IWB65BM：6ms (typ.) |
| ZK-IWB75BM：8ms (typ.) | |
| ZK-IWB86BM：8ms (typ.) | |
| Frequency | 60Hz |
| Aspect Ratio | 16:9 |
| View Angle | 178°(H) / 178°(V) |
| Display Colors | 1.07B |
| Bonding Technology | The gap between tempered glass and screen is close to 0 |
| Camera | |
| Pixel | 8 Mega pixels |
| FOV | Diagonal 103° |
| Focal Distance | 3m |
| Face Tracking | Support |
| Voice Tracking | Support |
| Microphone | |
| Array Quantity | 8 microphones array |
| Pickup Range | 8m (Angle:45°-135°) |
| AEC & AGC & Speech Enhancement | Support |
| Power Parameters | |
| Power Consumption (Without OPS) | ZK-IWB65BM：300W |
| ZK-IWB75BM：380W | |
| ZK-IWB86BM：460W | |
| Operating Power | AC 100V to 240V, 50/ 60Hz |
| Standby Consumption | <0.5W |
| Touch Parameters | |
| Touch Technology | Advanced infrared touch technology |
| Touch Points | Android: 20 Multi-touch points; Windows: 40 Multi-touch points |
| Input | Stylus/ Finger/ Other solid(soft tip) object |
| Accuracy | ±1mm (middle 0ver 90% area) |
| Writing Height | 2.0mm |
| Resolution | 32768 × 32768 |
| Response Time | <10ms |
| Minimum Touch Object | Single touch: ≥1.6 mm; Multiple touch: ≥2.0 mm |
| Recognition Level Of Thick And Thin Pens | 4 Grades: 3mm/ 8mm/ 12mm fine eraser/ 25mm eraser |
| Connectivity | |
| Front Port | USB 3.0*2, Type-C*1 |
| Bottom Port | AUDIO IN*1, VGA*1, LAN IN/ OUT*1, RS232*1, MIC IN*1, HDMI OUT*1, AUDIO |
| OUT*1, SPDIF*2 | |
| Side Port | Touch-USB*3, DP*1, HDMI IN 1 2.0*1, HDMI IN 2 2.0*1, Type-C*1, USB 2.0*1, USB |
| 3.0*2 | |
| Mainboard | |
| Chipset | A311D2 |
| OS | Andriod 11.0/ Windows 11 (Optional) |
| CPU | Architecture: Quad core ARM Cortex A73+ Quad core Cortex A53 |
| 2.0GHz< Operating frequency< 2.2GHz | |
| GPU | MaliG52 MP8 |
| RAM | 8GB |
| ROM | 64GB (Andriod 11.0) / 256GB (Windows 11.0) |
| Wi-Fi Module | |
| Main Chipset | AP6275P solution: Intel (R) Wi-Fi 6 AX201 160Mhz: PCIE protocol |
| It can be used as both a Wi-Fi access point and a hotspot. | |
| Operating Frequency | 2.4GHz / 5GHz |
| Wi-Fi Standard | IEEE 802.11 ax / b / g / n / ac |
| Bluetooth | 2.1+ EDR / 4.2 / 5.2 |
| NFC Module | |
| Standard | ISO/ IEC 14443 A/ ISO/ IEC 14443 B |
| Support Card Type | NFC (NTag / HCE) |
| Frequency | 13.56MHz |
| Read / Write Distance | <30mm |
| Read / Write Speed | 106 to 424 kbps |
| Read / Write Latency | <100ms |
| Physical Parameters | |
| Product Dimensions | ZK-IWB65BM：1482.1x 105.6x 936.7 mm (L*W*H) |
| ZK-IWB75BM：1716.5x 105.6x 1069.7 mm (L*W*H) | |
| ZK-IWB86BM：1961.8x 105x 1207.7 mm (L*W*H) | |
| Package Dimensions | ZK-IWB65BM：1660x 245x 1045 mm (L*W*H) |
| ZK-IWB75BM：1880x 280x 1160 mm (L*W*H) | |
| ZK-IWB86BM：2140x 280x 1340 mm (L*W*H) | |
| Net Weight | ZK-IWB65BM：42±1.5kg |
| ZK-IWB75BM：51±1.5kg | |
| ZK-IWB86BM：68±1.5kg | |
| Gross Weight | ZK-IWB65BM：55±1.5kg |
| ZK-IWB75BM：70±1.5kg | |
| ZK-IWB86BM：89±1.5kg | |
| Casing Material | Aluminium / Sheet Metal Enclosure |
| Color | Black |
| General Environment | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | 10°C to 60°C |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Storage Humidity | 10% to 60% RH (Non-condensing) |
| Accessories | |
| Standard | Remote Controller*1, Power Cable*1, USB Cable*1, HDMI Cable*1, Stylus Pen * 2, Wall bracket * 1, Eraser*1 |
| Optional | Windows OS, Movable stand |
