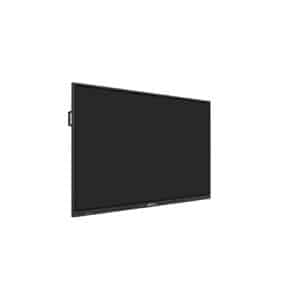

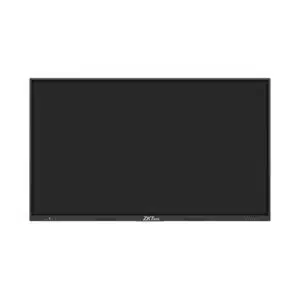

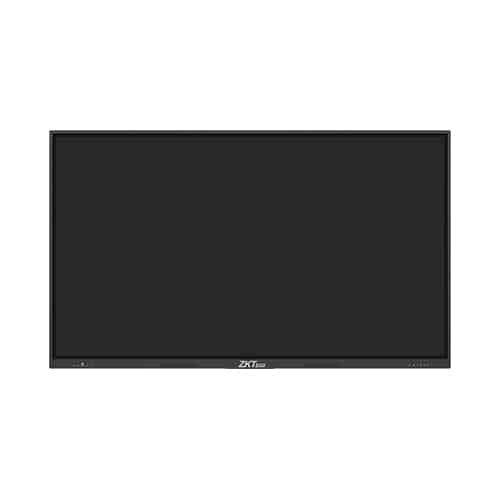

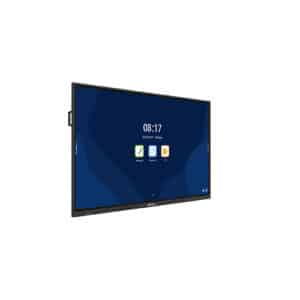

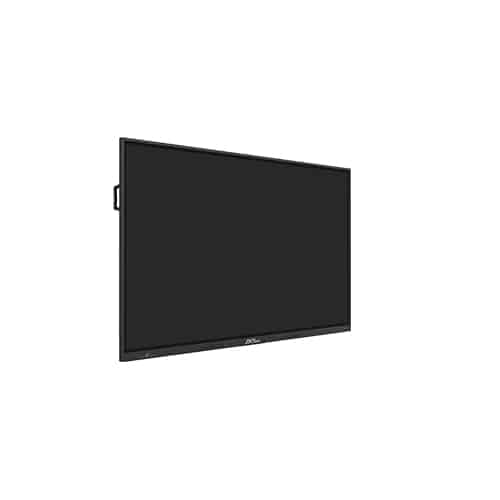

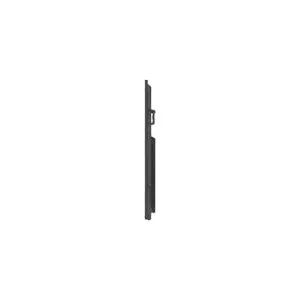

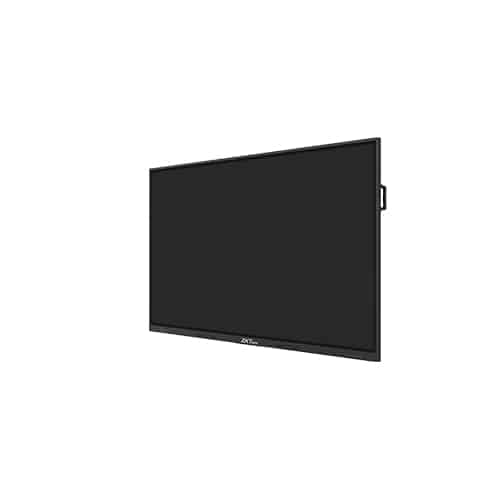

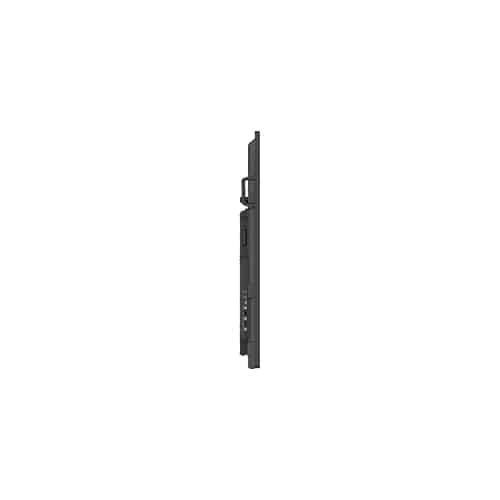

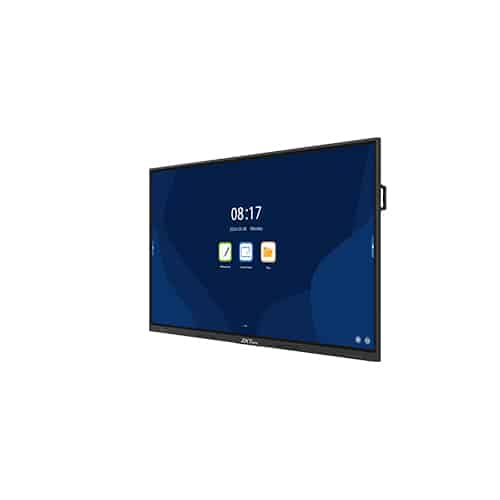

The ZK-IWBE Series is a high-performance 4K UHD interactive whiteboard, available in 65-inch, 75-inch, and 86-inch models. Featuring Android 13.0 OS, 20-point multi-touch support, Wi-Fi 6, and optional Windows 11 integration, it provides an exceptional collaboration experience for classrooms, meeting rooms, and exhibitions.
| Screen Size | 65 inch, 75 inch, 86 inch |
|---|

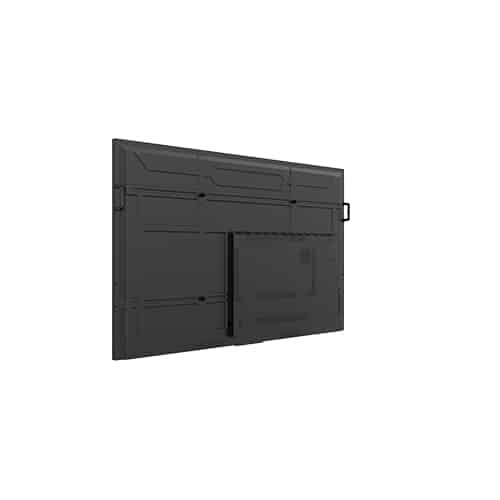

The ZK-IWBE Series (ZK-IWB65BE / ZK-IWB75BE / ZK-IWB86BE) is an interactive 4K UHD smart whiteboard designed for seamless collaboration in educational institutions, corporate meeting rooms, and exhibitions. It combines advanced infrared touch technology, high-transparency anti-glare tempered glass, and Wi-Fi 6 connectivity for a smooth and immersive experience.
With support for Android 13.0 and optional Windows 11, this whiteboard delivers split-screen mirroring, optical character recognition (OCR), and real-time annotation. The infrared touch system supports up to 20 touch points on Android and 40 points on Windows, enabling multiple users to write, draw, and interact simultaneously. Its durable aluminum alloy and sheet metal design ensure longevity, making it a reliable investment for professional environments.
The ZK-IWBE Series is the perfect solution for education, business meetings, and interactive presentations. With powerful connectivity, an anti-glare 4K display, and intuitive multi-touch functionality, this whiteboard enhances productivity and engagement in collaborative environments.
| Screen Size | 65 inch, 75 inch, 86 inch |
|---|
| Feature | Specification |
|---|---|
| Model Name | ZK-IWB65BE; ZK-IWB75BE; ZK-IWB86BE |
| LCD Screen | ZK-IWB65BE: 65-inch |
| ZK-IWB65BE: 75-inch | |
| ZK-IWB65BE: 86-inch | |
| Screen Type | D-LED (Backlight) |
| Display Parameters | |
| Resolution | 3840 × 2160 (pixels) |
| Brightness | 400cd/m² (typ.) |
| Contrast Ratio | 1200:1 (typ.) |
| Response Time | ZK-IWB65BE: 6ms (typ.) |
| ZK-IWB75BE: 8ms (typ.) | |
| ZK-IWB86BE: 8ms (typ.) | |
| Frequency | 60Hz |
| Aspect Ratio | 16:9 |
| View Angle | 178°(H) / 178°(V) |
| Display Colors | 1.07B(8bit+FRC) |
| Bonding Technology | The gap between tempered glass and screen is close to 0 |
| Power Parameters | |
| Power Consumption (Without OPS) | ZK-IWB65BE: 220W |
| ZK-IWB75BE: 300W | |
| ZK-IWB86BE: 380W | |
| Working Voltage | AC 176V to 264V, 50/60Hz |
| Power Type | AC Power |
| Standby Consumption | <0.5W |
| Touch Parameters | |
| Touch Technology | Advanced infrared touch technology |
| Anti-Glare | High transparent + Smooth + Anti-glare |
| Tempered Glass | Toughened Glass 3.2mm |
| Grade: MoHS 7 | |
| Touch Points | Android: 20 Multi-touch points |
| Windows: 40 Multi-touch points | |
| Input | Stylus / Finger / Other solid(soft tip) object |
| Accuracy | ±1mm (middle 0ver 90% area) |
| Writing Height | 3.0 mm |
| Resolution | 32768×32768 |
| Response Time | <5ms |
| Minimum Touch Object | Single touch: ≥1.6mm |
| Multiple touch: ≥2.0mm | |
| Support Pen Protocol | Windows Whiteboard 2.0 support thick and thin pens Automatic identification |
| Recognition Level Of Thick And Thin Pens | 4 Grades :3mm / 8mm / 12mm fine eraser / 25mm eraser |
| Connectivity | |
| Front Port | USB 3.0*2, Type-C*1, Touch-USB*1, HDMI2.0*1 |
| Bottom Port | LAN IN/OUT*2, RS232 IN*1, MIC IN*1, AUDIO OUT*1, SPDIF OUT*1 |
| Side Port | Touch-USB*2, HDMI IN*2, USB 2.0*1, USB 3.0*1 |
| Mainboard | |
| Solution | T982 |
| CPU | Architecture: Quad core ARM Cortex A55 |
| Operating frequency < 1.8GHz | |
| OS | Android 13.0 |
| GPU | MaliG52 2EE MC1@550MHz |
| RAM | 4GB |
| ROM | 32GB |
| OPS (Optional) | Windows11.0 |
| Wi-Fi Module | |
| Main Chipset | Wi-Fi+BT MT7663BU (IEEE 802.11a/b/g/n/ac) Bluetooth v5.1 2T2R 2.4GHz / 5GHz |
| Operating Frequency | 2.4GHz / 5GHz |
| Wi-Fi Standard | IEEE 802.11 ax / b / g / n / ac |
| Bluetooth | 2.1+EDR / 4.2 / 5.1 |
| Speaker | |
| Output Power | 8Ω /16W×2: 200Hz - 20kHz |
| Physical Parameters | |
| Product Dimensions (L*W*H) | ZK-IWB65BE: 1482.1×87.7×897.4 (mm) |
| ZK-IWB75BE: 1716.5×87.7×1031.8 (mm) | |
| ZK-IWB86BE: 1967.8 x87.7.x1169.9 (mm) | |
| Package Dimensions (L*W*H) | ZK-IWB65BE: 1640×185×1010 (mm) |
| ZK-IWB75BE: 1860×185×1125 (mm) | |
| ZK-IWB86BE: 2095×185×1265 (mm) | |
| Net Weight | ZK-IWB65BE: 38±1.5 kg |
| ZK-IWB75BE: 52.5±1.5kg | |
| ZK-IWB86BE: 65.5±1.5kg | |
| Weight with Packaging | ZK-IWB65BE: 46±1.5 kg |
| ZK-IWB75BE: 61.5±1.5kg | |
| ZK-IWB86BE: 77±1.5kg | |
| Case Material | Aluminium Alloy and Sheet Metal |
| Color | Black |
| General Environment | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | 10°C to 60°C |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Storage Humidity | 10% to 60% RH (Non-condensing) |
