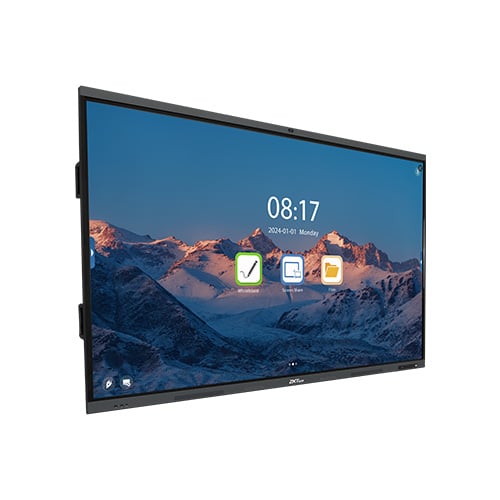

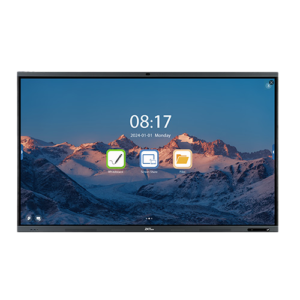

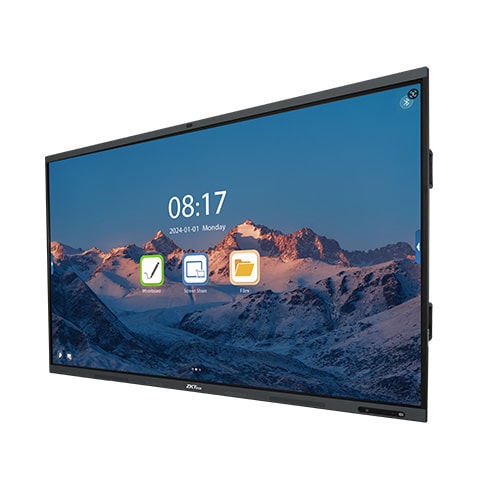

The SC02-I365/75/86A Interactive Whiteboard is an AI-powered collaboration display designed for business and educational environments. Featuring a 4K UHD display, a 48MP AI camera with face tracking, Wi-Fi 6, and NFC authentication, this smart board enhances meetings, training sessions, and presentations. With Android 14 and optional Windows 11, it supports real-time annotations, screen sharing, and seamless integration for an immersive user experience.
| Screen Size | 65 inch, 75 inch, 86 inch |
|---|
The SC02-I365/75/86A Series (available in 65″, 75″, and 86″) is a cutting-edge 4K UHD interactive whiteboard designed to improve collaboration in meeting rooms, classrooms, and corporate training environments. Its anti-glare touch display ensures clear visibility from any angle, while 50 simultaneous touch points enable seamless real-time annotations and multi-user engagement.
The AI-powered 48MP camera supports face tracking and sound localization, making it ideal for video conferencing and hybrid meetings. Equipped with Wi-Fi 6, NFC authentication, and Android 14 OS, this whiteboard supports screen mirroring, remote collaboration, and interactive writing. The board is also Windows 11 compatible, offering a flexible and scalable experience for business and education applications.
The SC02-I365/75/86A Series is built for modern business meetings, interactive classrooms, and corporate training. With AI-powered video conferencing, 50-point multi-touch, and Wi-Fi 6 connectivity, it delivers a cutting-edge collaboration experience for teams and educators.
| Screen Size | 65 inch, 75 inch, 86 inch |
|---|
| Feature | Specification |
|---|---|
| Model | SC02-I365A |
| SC02-I375A | |
| SC02-I386A | |
| Screen Parameters | |
| Screen Size | SC02-I365A: 65 inch |
| SC02-I375A: 75 inch | |
| SC02-I386A: 86 inch | |
| Screen Type | SC02-I365A: ADS |
| SC02-I375A: ADS | |
| SC02-I386A: IPS | |
| Backlight | D-LED |
| Backlight Life | 50,000 hours (min.)(typ.) |
| Resolution | 3840 × 2160 (pixels) |
| Brightness | 450cd/m²(typ.) |
| Contrast Ratio | 1200:1 (typ.) |
| Response Time | 8ms (typ.) |
| Refresh Frequency | 60Hz |
| Aspect Ratio | 16:09 |
| View Angle | 178°(H) / 178°(V) |
| Display Colors | 1.07B(8bit+FRC) |
| Bonding Technology | The gap between tempered glass and screen is close to 0 |
| Touch Parameters | |
| Touch Technology | Advanced infrared touch technology |
| Touch Points | Up to 50 |
| Touch Response Time | Single touch: ? 3ms |
| Multiple touch: ?3 ms | |
| Accuracy | Center 90% touch area: 1mm |
| Anti-Glare | High transparent+Smooth+Anti-glare |
| Glass Hardness | 9H (Pencil Hardness) ; 7(Mohs Hardness) Tempered Glass |
| Writing Height | ? 1mm |
| System | |
| CPU | Quad core A73+Quad core A53 |
| GPU | MaliG52 MP8 |
| Memory (RAM) | 8GB |
| Storage (ROM) | 128GB |
| Operating System | Android 14 / Windows 11 (Optional) |
| Connectivity | |
| Front Port | USB 3.0 * 2 |
| Type-C(65W) * 1 | |
| Bottom Port | AUDIO IN*1 |
| VGA*1 | |
| LAN IN/OUT*2 | |
| RS232 * 1 | |
| MIC IN * 1 | |
| HDMI OUT * 1 | |
| AUDIO OUT * 1 | |
| SPDIF * 2 | |
| Side Port | Touch-USB * 2 |
| DP * 1 | |
| HDMI IN(ARC) 1 2.0 * 1 | |
| HDMI IN(CEC) 2 2.0 * 1 | |
| Type-C * 1 | |
| USB 2.0 * 1 | |
| USB 3.0 * 2 | |
| OPS slot (for slot-in PC) * 1 | |
| Wi-Fi | Wi-Fi 6: IEEE 802.11 ax/ac/b/g/n (5GHz / 2.4GHz) |
| Bluetooth | BT 5.0: 2.1+EDR / 4.2 / 5.0 |
| NFC | ISO / IEC 14443 A ; ISO / IEC 14443 B |
| Built-in peripherals | |
| Camera | |
| Pixel | 48 megapixels |
| FOV | FOV Diagonal 114.9° |
| Face Tracking | Support |
| Sound localization | Support |
| Microphone | |
| Array Quantity | 8 microphones array |
| Pickup Range | Support |
| 3D noise reduction | Support |
| AEC & AGC | Support |
| Speaker | 2 * 20W+1*20W(Subwoofer optional) |
| Power | |
| Operating Power | 100 V ~ 240 V/AC, 50/60 Hz |
| Standby power consumption | <0.5W |
| Power consumption (100% brightness) | SC02-I365A: 178W (typ.) |
| SC02-I375A: 215W (typ.) | |
| SC02-I386A: 278W (typ.) | |
| Physical | |
| Dimensions (W × H × D) | SC02-I365A: 1483.9*86.7*911.6mm |
| SC02-I375A: 1705*86.9*1036mm | |
| SC02-I386A: 1950.4 *86.9 *1174mm | |
| Package Dimensions (L × W × H) | SC02-I365A: 1640*185*1010mm |
| SC02-I375A: 1860*185*1125mm | |
| SC02-I386A: 2095*185*1265mm | |
| Net Weight (kg) | SC02-I365A: 40.5kg |
| SC02-I375A: 53.95kg | |
| SC02-I386A: 66.85kg | |
| Weight with Packaging (kg) | SC02-I365A: 50.2kg |
| SC02-I375A: 64.5kg | |
| SC02-I386A: 79.05kg | |
| Case Material | Aluminium Alloy and Sheet Metal |
| Color | Blue grey |
| Lifespan | 50000 Hours (Expected) |
| Environment | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | 10°C to 60°C |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Storage Humidity | 10% to 60% RH (Non-condensing) |
| Accessories | |
| Cables | Power Cable*1, USB Cable*1, HDMI Cable*1 |
| Remote Controller | 1 |
| Wall mount | 1 |
| Stylus Pen | 2 |
| Eraser | 1 |
| Peripheral Accessories(Optional) | |
| Movable bracket | YES |
| OPS | YES |
| Wireless Dongle | YES |
